Product Model

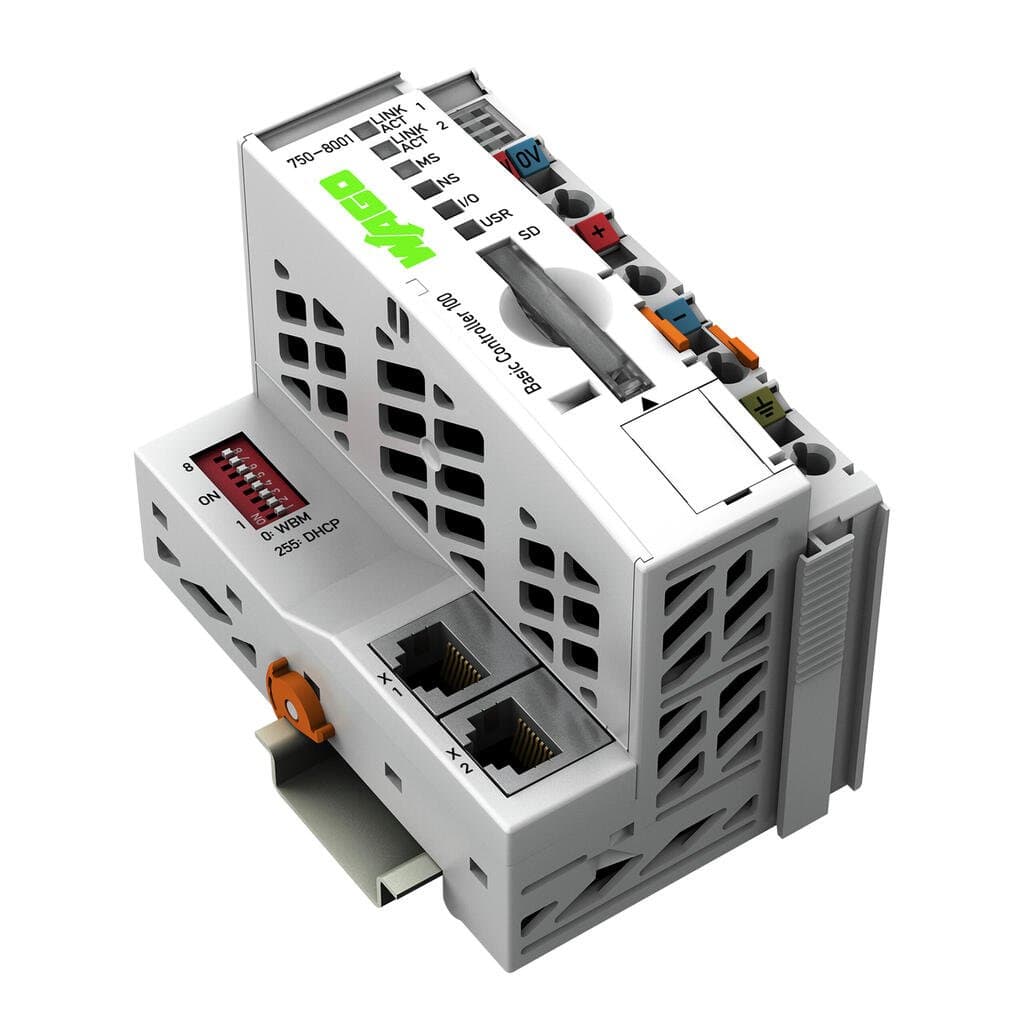

750-8001
Selling Points
- 1The WAGO 750-8001 PLC CPU module provides cost-effective control solutions with advanced communication and programming features.
- 2Equipped with two Ethernet interfaces supporting 10/100 Mbit/s data rates and auto-negotiation, ideal for Ethernet networks.
- 3Includes an onboard SD card slot for easy memory expansion and data transfer, enhancing program functions.
- 4Supports Modbus TCP/UDP, HTTPS, DNS, BOOTP, DHCP, SNMP, and SFTP for seamless integration into IT environments.
- 5Capable of multitasking with a capacitor-backed RTC, making it suitable for high-tech automation and control systems in Industry 4.0.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | Modbus (TCP, UDP) | ETHERNET protocols | HTTP(S) |
Visualization | Webserver with integrated RBAC (Role-Based Access Control) | CPU | 32 bits |
Programming languages per IEC 61131-3 | Instruction List (IL) | Programming environment | CODESYS V3.5 |
Configuration options | WAGO-I/O-CHECK | Transmission rate | 10/100?Mbit/s |
Transmission medium (communication/fieldbus) | Twisted pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length | Transmission performance | Class D per EN 50173 |
Program memory | 16?MB | Data memory | 32?MB |
Non-volatile software memory | 128Kbytes | Type of memory card | SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO's memory card) |
Memory card slot | Push-push mechanism; cover lid (sealable) | Number of modules per node (max.) | 250 |
Number of modules without a bus extension (max.) | 64 | Input and output process image (fieldbus) max. | 1020?words/1020?words |
Indicators | LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply | Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) |
Input current (typ.) at nominal load (24?V) | 500mA | Power supply efficiency (typ.) at nominal load (24 V) | 90% |
Current consumption (5 V system supply) | 440mA | Total current (system supply) | 1,700mA |
Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts | Current carrying capacity (power jumper contacts) | 10A |
Number of outgoing power jumper contacts | 3 | Isolation | 500 VAC system/field |
Connection technology: communication/fieldbus | Modbus (TCP, UDP):?2 x RJ-45 | Connection type 1 | System/field supply |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 61.5?mm?/ 2.421?inches |
Height | 100?mm?/ 3.937?inches | Depth | 71.9?mm?/ 2.831?inches |
Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches | Weight | 154.4g |
Housing material | Polycarbonate; polyamide 6.6 | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Relative humidity (without condensation) | 95% |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Mounting type | DIN-35 rail |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Fire load | 2.47MJ |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
ETIM 9.0 | EC000236 | ETIM 8.0 | EC000236 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4066966361902 | Customs tariff number | 85371091990 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | c860baa6-a8d5-4d64-b517-c6b06bb7ec08 | SCIP notification number (Belgium) | 35246927-d874-4df3-a823-416c3e51faf2 |
SCIP notification number (Bulgaria) | be381a95-8372-4917-999a-0350f1e2c3c8 | SCIP notification number (Czech Republic) | 43ba3f7f-2e75-428f-9aac-6d5fda8a5ac9 |
SCIP notification number (Denmark) | f457f258-9930-4fbd-bda6-dc91e02bbcfc | SCIP notification number (Finland) | c6ebc103-bec0-4056-bb22-0fcad1280913 |
SCIP notification number (France) | 549b616e-e528-4813-9c5c-50ebd556ff2d | SCIP notification number (Germany) | 41cb42de-4ff4-4459-b10d-4ab37213a6b8 |
SCIP notification number (Hungary) | 85765840-ce7f-42d3-942b-0ec273454a4b | SCIP notification number (Italy) | e31f30ac-645f-40af-8d9d-941892a1ef13 |
SCIP notification number (Netherlands) | dd972ea5-1f96-42ac-a170-90642984f705 | SCIP notification number (Poland) | 8a26fee3-e09a-409d-8e12-81ac409dd62e |
SCIP notification number (Romania) | 5278ff5c-504e-479b-bcd1-047a83af8ac0 | SCIP notification number (Sweden) | 4228030b-7777-4e37-b006-6ec1f601c762 |
Specifications may be subject to change without notice
