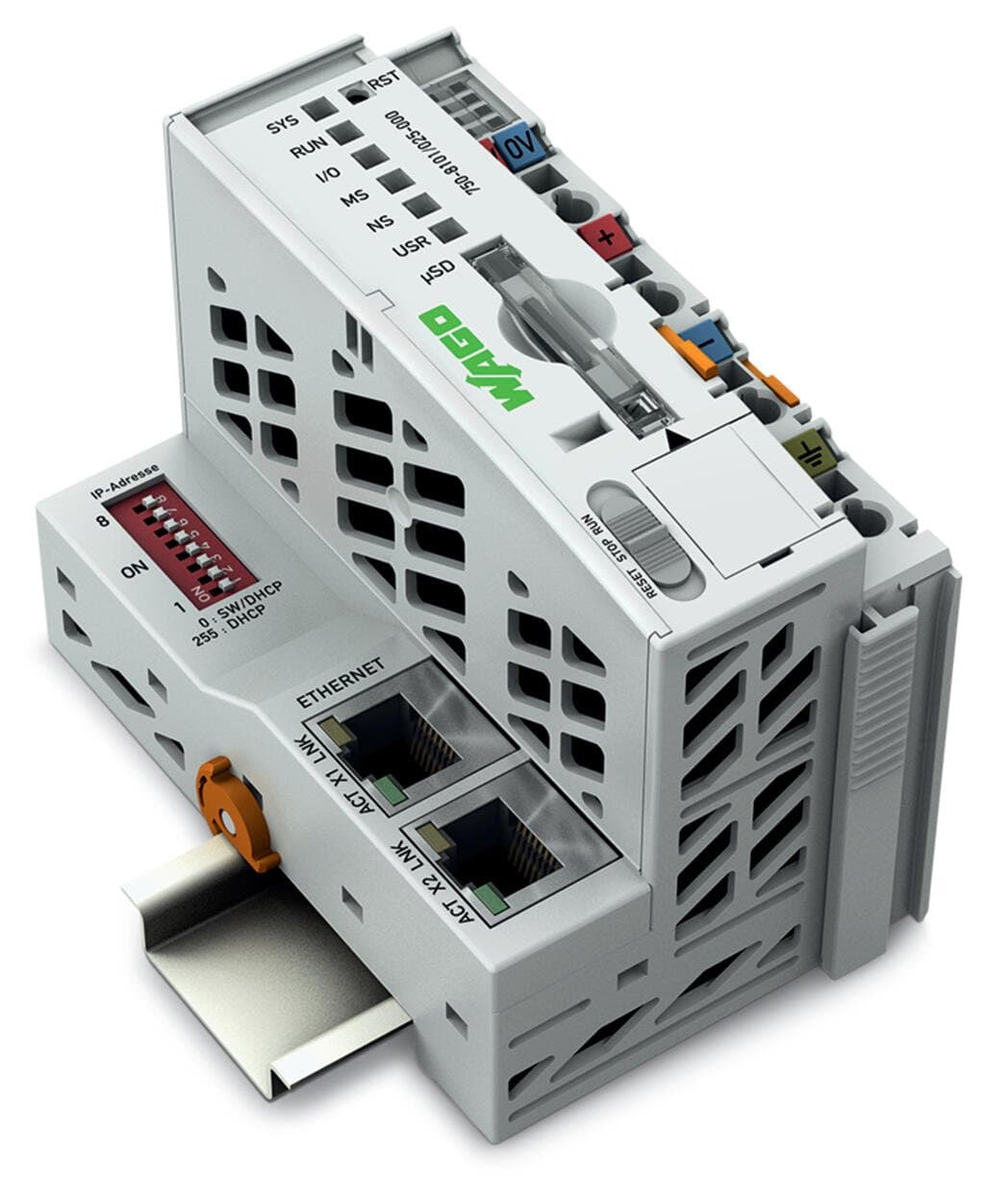

Product Model
750-8101/025-000
Selling Points
- 1Operates in ambient temperatures from -20°C to +60°C.
- 2Equipped with a Cortex A8 600MHz processor.
- 3Supports up to 250 connections per node and 64 field devices.
- 4Compatible with Modbus TCP and Ethernet/IP protocols.
- 5Mounted on DIN-35 rail, measuring 61.5mm in width.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | Modbus (TCP, UDP) | ETHERNET protocols | DHCP |
Visualization | Web-Visu | Operating system | Real-time Linux 3.18 (with PREEMPT_RT patch) |
CPU | Cortex A8; 600 MHz | Programming languages per IEC 61131-3 | Instruction List (IL) |
Programming environment | e!COCKPIT(based on CODESYS V3) | Configuration options | e!COCKPIT |
Transmission rate | ETHERNET:?10/100?Mbit/s | Transmission medium (communication/fieldbus) | ETHERNET:?Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length |
Main memory (RAM) | 256MB | Internal memory (flash) | 256MB |
Non-volatile hardware memory | 64Kbytes | Program memory | 12?MB (Program and data memory (dynamically distributed)) |
Data memory | 12?MB?Program and data memory (dynamically distributed) | Non-volatile software memory | 64.Kbytes |
Type of memory card | microSD card | Memory card slot | Push-push mechanism; Cover lid (sealable) |
Number of modules per node (max.) | 250 | Number of modules without a bus extension (max.) | 64 |
Input and output process image (internal) max. | 1000?words/1000?words | Input and output process image (Modbus?) max. | CODESYS V3: 32000?words/32000?words |
Indicators | LED (SYS, RUN, I/O, USR) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status of system power supply, field supply | Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) |
Input current (typ.) at nominal load (24?V) | 550mA | Total current (system supply) | 1,700mA |
Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts | Current carrying capacity (power jumper contacts) | 10A |
Number of outgoing power jumper contacts | 3 | Isolation | 500?V system/field |
Connection technology: communication/fieldbus | Modbus (TCP, UDP):?2 x RJ-45 | Connection technology: system supply | 2 x CAGE CLAMP? |
Connection technology: field supply | 6 x CAGE CLAMP? | Connection type 1 | System/field supply |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 61.5?mm?/ 2.421?inches | Height | 100?mm?/ 3.937?inches |
Depth | 71.9?mm?/ 2.831?inches | Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches |
Weight | 159g | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Conformity marking | CE |
Ambient temperature (operation) | -20 … +60 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Relative humidity (without condensation) | 95% |
Relative humidity (with condensation) | Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of ?20 ?to +60 °C (except for wind-driven precipitation, water and ice formation) | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Mounting type | DIN-35 rail | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Fire load | 2.464MJ | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-07 |
eCl@ss 9.0 | 27-24-26-07 | ETIM 9.0 | EC000236 |
ETIM 8.0 | EC000236 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143351812 |
Customs tariff number | 8537109160 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 85e5a987-5ad8-4282-b9c0-f1b0569c9956 |
SCIP notification number (Belgium) | 67e1a286-c053-4bc6-af95-c2db40074669 | SCIP notification number (Bulgaria) | 2b0a8220-449f-4099-a8ea-5bea58e2272d |
SCIP notification number (Czech Republic) | d3955036-e961-4b33-a2f5-7691aee17f9b | SCIP notification number (Denmark) | 1ebe2462-96e2-4876-a8ff-3a115d95a557 |
SCIP notification number (Finland) | 63c1b1cf-64eb-4e84-8b3a-3ae4342c43c8 | SCIP notification number (France) | 4bf0bb44-e945-4d91-8b8d-5a26d25738de |
SCIP notification number (Germany) | cd99ff56-cc8f-4647-8d47-deb4d8115de0 | SCIP notification number (Hungary) | d688820e-5645-4abc-a628-1f49b9564380 |
SCIP notification number (Italy) | 637d3d69-03b2-4b25-9fc0-20dfbe1517fd | SCIP notification number (Netherlands) | e8b2effa-b06a-4fbb-ad80-8b63e3f3e1f6 |
SCIP notification number (Poland) | 0df01709-a2e4-478f-b779-beca0a6966cd | SCIP notification number (Romania) | 4db0cfee-df98-443f-bbe9-0ade76cb3548 |
SCIP notification number (Sweden) | 28967943-3c1c-44fe-8d32-3b5df83adaa8 |
Specifications may be subject to change without notice
