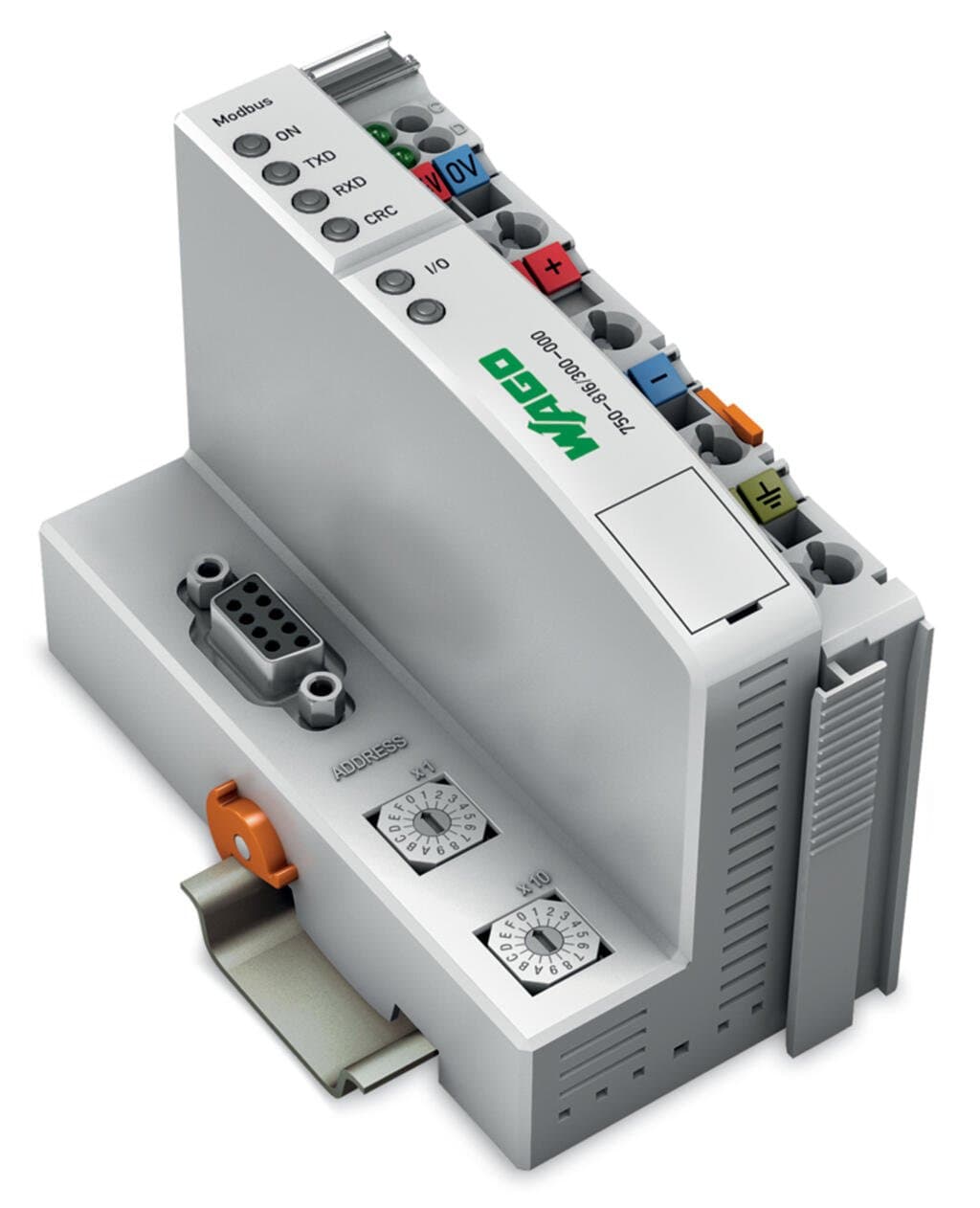

Product Model
750-816/300-000
Selling Points
- 1Advanced 16-bit Processing: Efficiently handles complex applications with a robust 16-bit processor.
- 2MODBUS Communication: Supports MODBUS communication via RS-232 at 115.2 kBd for seamless data transfer.
- 3DIN-35 Rail Mounting: Designed for easy mounting on DIN-35 rail systems, enhancing flexibility in installation.
- 4High Connectivity: Offers 64 connections per node and can connect up to 247 devices in fieldbus mode as a master.
- 5Rugged Design: IP20 rated, ensuring protection against environmental factors and maintaining reliability in harsh conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | Modbus RTU | Visualization | none |
CPU | 16 bits | Programming languages per IEC 61131-3 | Instruction List (IL) |
Programming environment | WAGO-I/O-PROV2.3 (based on CODESYS V2.3) | Configuration options | WAGO-I/O-CHECK |
Cycle time | < 3 ms for 1000 bit instructions/ 256 digital I/O | Transmission rate | 150/115.2 kBd |
Bus segment length (max.) | 1200?m | Transmission medium (communication/fieldbus) | Shielded Cu cable 2 (4) x 0.25 mm2 |
Number of fieldbus nodes on master (max.) | 247 | Number of I/O points | 6,000 |
Program memory | 32?KB | Data memory | 32?KB |
Non-volatile software memory | 8Kbytes | Memory for fieldbus input variables (max.) | 512Byte |
Memory for fieldbus output variables (max.) | 512Byte | Number of modules per node (max.) | 64 |
Number of modules without a bus extension (max.) | 64 | Input and output process image (fieldbus) max. | 1024?bytes/1024?bytes |
Indicators | LED (ON, LINK, TxD/RxD) green: Fieldbus initialization, send, receive; LED (CRC) red: Checksum error; LED (I/O) red/green/orange: Local data bus status; LED (A, B) green: System power supply status, field supply | Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) |
Input current (typ.) at nominal load (24?V) | 500mA | Power supply efficiency (typ.) at nominal load (24 V) | 87% |
Current consumption (5 V system supply) | 350mA | Total current (system supply) | 1,650mA |
Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts | Current carrying capacity (power jumper contacts) | 10A |
Number of outgoing power jumper contacts | 3 | Isolation | 500?V system/field |
Connection technology: communication/fieldbus | Modbus RTU:?1 x D-sub 9 socket | Connection technology: system supply | 2 x CAGE CLAMP? |
Connection technology: field supply | 6 x CAGE CLAMP? | Connection type 1 | System/field supply |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 50.5?mm?/ 1.988?inches | Height | 100?mm?/ 3.937?inches |
Depth | 71.1?mm?/ 2.799?inches | Depth from upper-edge of DIN-rail | 63.9?mm?/ 2.516?inches |
Weight | 184.9g | Housing material | Polycarbonate; polyamide 6.6 |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
Relative humidity (without condensation) | 95% | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Mounting type | DIN-35 rail | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Fire load | 2.699MJ | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-07 | eCl@ss 9.0 | 27-24-26-07 |
ETIM 9.0 | EC000236 | ETIM 8.0 | EC000236 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143070980 | Customs tariff number | 8537109160 |
CAS-No. | 12060-00-3 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Bulgaria) | 3b922ebc-4247-48f1-97f2-d4b710086220 | SCIP notification number (Czech Republic) | 013dcfb6-56aa-4fef-ae3b-ef077aeba2ce |
