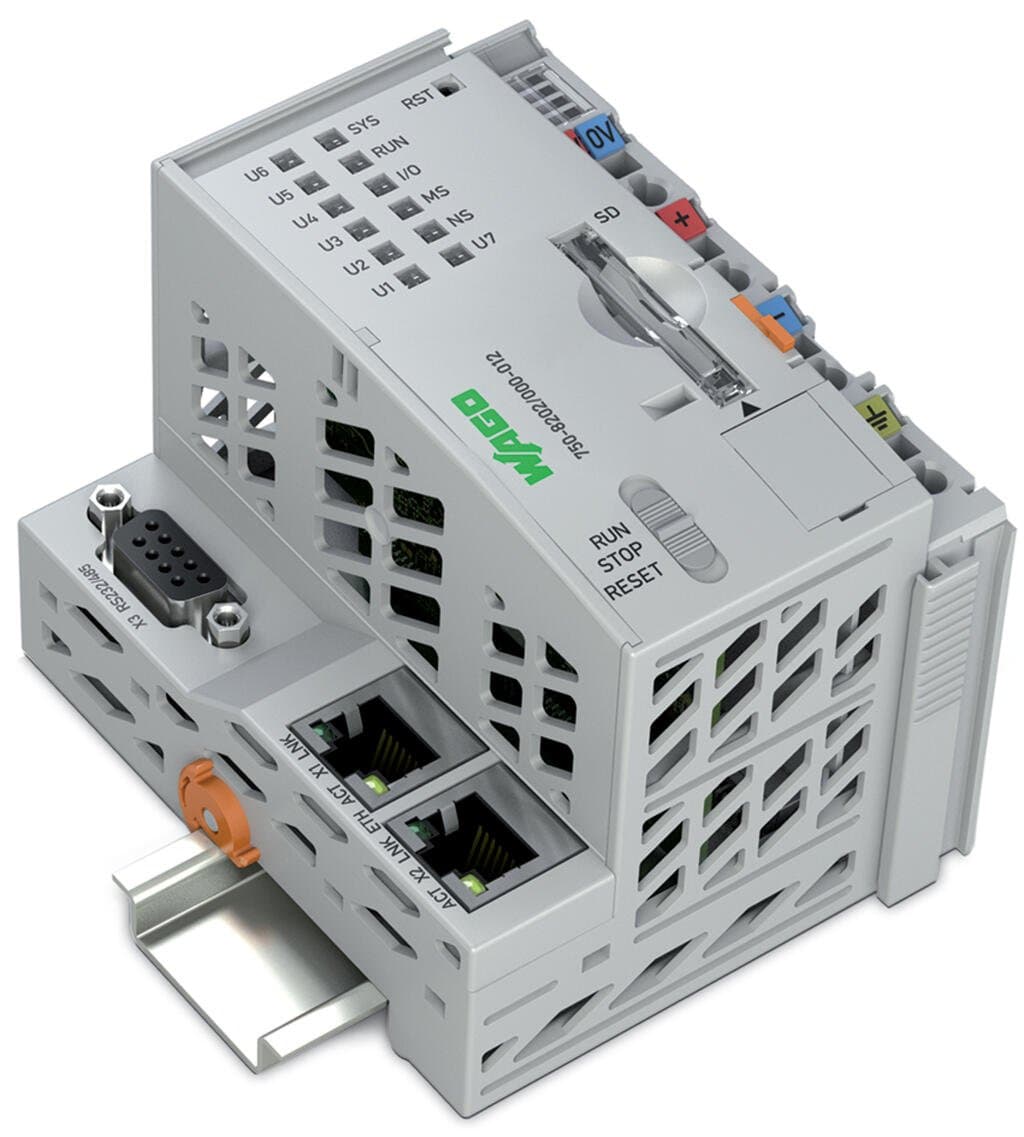

Product Model
750-8202/000-012
Selling Points
- 1Programmable via IEC 61131-3: Supports industry-standard programming for seamless integration.
- 2Dual Ethernet Connectivity: Offers two configurable Ethernet ports for enhanced network capabilities.
- 3RS-232/-485 Interfaces: Provides serial communication options for diverse application needs.
- 4Linux Operating System: Ensures reliability and efficiency with a robust Linux OS.
- 5Configurable via CODESYS: Allows for flexible configuration using the CODESYS software.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Download and register the software:Formular | Communications | Modbus (TCP, UDP) |
ETHERNET protocols | DHCP | Visualization | Web-Visu |
Operating system | Real-time Linux (with PREEMPT_RT patch) | CPU | Cortex A8; 600 MHz |
Programming languages per IEC 61131-3 | Instruction List (IL) | Programming environment | e!COCKPIT(based on CODESYS V3) |
Configuration options | e!COCKPIT | Transmission rate | ETHERNET:?10/100?Mbit/s |
Transmission medium (communication/fieldbus) | ETHERNET:?Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length | Main memory (RAM) | 256MB |
Internal memory (flash) | 256MB | Non-volatile hardware memory | 128Kbytes |
Program memory | CODESYS V2:?16?MB;?CODESYS V3:?60?MB (Program and data memory (dynamically distributed)) | Data memory | CODESYS V2:?64?MB;?CODESYS V3:?60?MB?Program and data memory (dynamically distributed) |
Non-volatile software memory | 128.Kbytes | Type of memory card | SD card |
Memory card slot | Push-push mechanism; Cover lid (sealable) | Number of modules per node (max.) | 250 |
Number of modules without a bus extension (max.) | 64 | Input and output process image (internal) max. | 1000?words/1000?words |
Input and output process image (Modbus?) max. | CODESYS V2: 1000?words/1000?words | Indicators | LED (SYS, RUN, I/O, U1 … U7) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status of system power supply, field supply |
Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) | Input current (typ.) at nominal load (24?V) | 550mA |
Total current (system supply) | 1,700mA | Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts |
Current carrying capacity (power jumper contacts) | 10A | Number of outgoing power jumper contacts | 3 |
Isolation | 500?V system/field | Connection technology: communication/fieldbus | Modbus (TCP, UDP):?2 x RJ-45;?Modbus RTU:?1 x D-sub 9 socket;?RS-232 serial interface:?1 x D-sub 9 socket;?RS-485 interface:?1 x D-sub 9 socket |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection technology: field supply | 6 x CAGE CLAMP? |
Connection type 1 | System/field supply | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Connection technology: device configuration | 1 x Male connector; 4-pole | Width | 78.6?mm?/ 3.094?inches |
Height | 100?mm?/ 3.937?inches | Depth | 71.9?mm?/ 2.831?inches |
Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches | Weight | 208.2g |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
Relative humidity (without condensation) | 95% | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Mounting type | DIN-35 rail | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Fire load | 2.523MJ | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-07 |
eCl@ss 9.0 | 27-24-26-07 | ETIM 9.0 | EC000236 |
ETIM 8.0 | EC000236 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143544610 |
Customs tariff number | 85371091990 | End of Sale | 2021-10-31 |
End of Production | 2023-12-31 | End of Delivery | 2021-12-31 |
End of Service and Repair | 2024-12-31 | CAS-No. | 12060-00-3 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | c3fa62e7-c476-4387-ae68-7da636e10650 |
SCIP notification number (Belgium) | 447c81a6-6de5-49f2-8e1f-9659eea3eac9 | SCIP notification number (Bulgaria) | 80fe27c1-ab57-4291-b3e2-770327dbc14a |
SCIP notification number (Czech Republic) | f0f3ac59-b65b-4fe3-a2a9-8ea54fcbce5e | SCIP notification number (Denmark) | 15f23b2a-4c3f-4aec-9e1b-b0a4e51b3d5f |
SCIP notification number (Finland) | 3222cb2b-463b-46f1-b838-c5470ff8c0f3 | SCIP notification number (France) | 950a1f23-a86a-4fb3-94e4-961f21ee9fda |
SCIP notification number (Germany) | 87420c53-0d9f-4957-9a34-d83963ec5453 | SCIP notification number (Hungary) | 734c6191-73ff-4827-9cec-607d1c1086b8 |
SCIP notification number (Italy) | 1ae04ed4-f37a-4019-9cd3-d2729c4f444a | SCIP notification number (Netherlands) | fcd95886-2495-4142-83ce-4ea0c945d597 |
SCIP notification number (Poland) | 735554b6-d090-41a0-8636-5be8d0079bc7 | SCIP notification number (Romania) | e7a9a1c8-97d9-4645-a8cc-69c60f58d60c |
SCIP notification number (Sweden) | 3552a056-50e7-477f-a313-6f524ca70070 |
Specifications may be subject to change without notice
