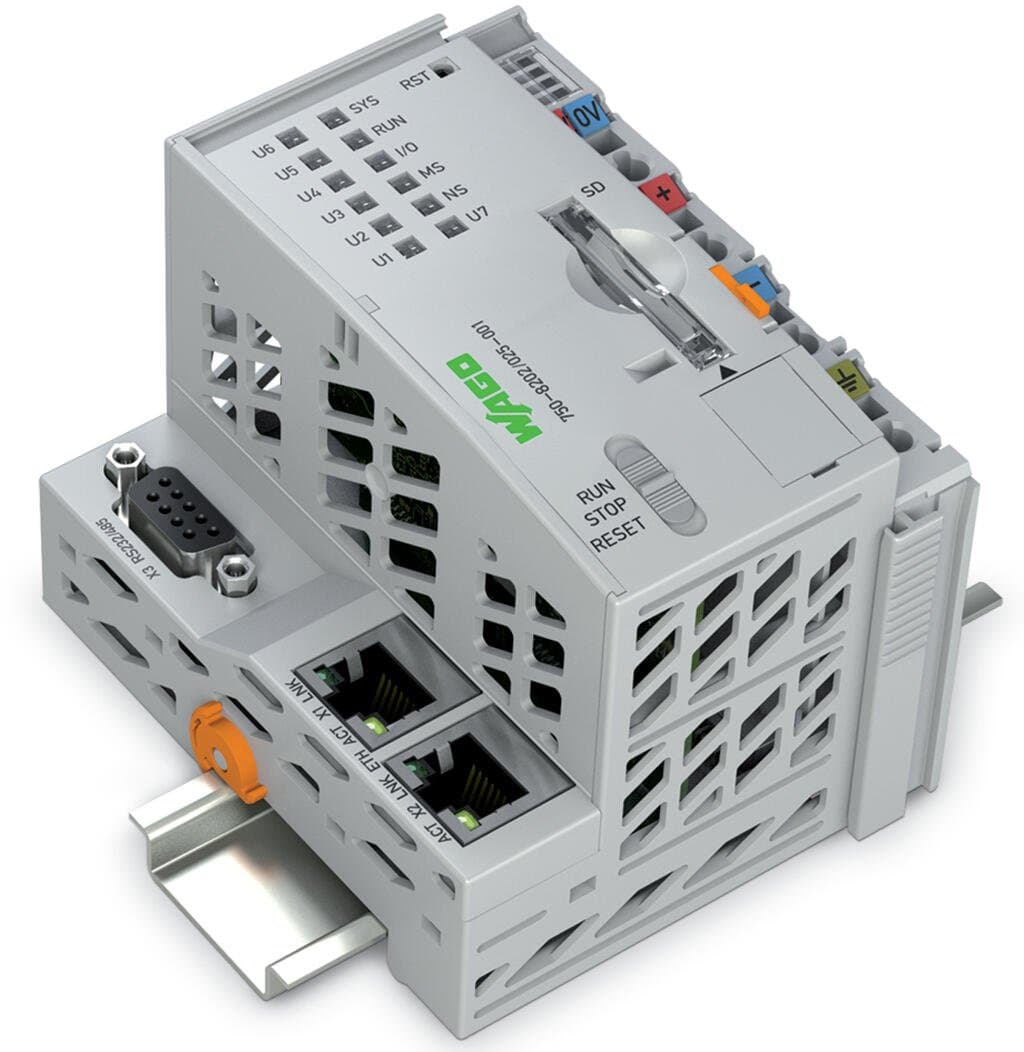

Product Model
750-8202/025-001
Selling Points
- 1Compact design with 2 x Ethernet and RS-232 interfaces.
- 2Supports Modbus (TCP, UDP), Ethernet, and RS-485 serial interfaces.
- 3Integrated Web server for user configuration and status monitoring.
- 4Extensive memory options with internal Flash memory and SD/SDHC card slot.
- 5Enhanced security with IP20 protection rating and secure connection technology.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | Modbus (TCP, UDP) | ETHERNET protocols | DHCP |
Telecontrol protocols | IEC 60870-5-101/-103/-104 | Visualization | Web-Visu |
Operating system | Real-time Linux (with PREEMPT_RT patch) | CPU | Cortex A8; 600 MHz |
Programming languages per IEC 61131-3 | Instruction List (IL) | Programming environment | WAGO-I/O-PROV2.3 (based on CODESYS V2.3) |
Configuration options | e!COCKPIT | Transmission rate | ETHERNET:?10/100?Mbit/s |
Transmission medium (communication/fieldbus) | ETHERNET:?Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length | Main memory (RAM) | 256MB |
Internal memory (flash) | 256MB | Non-volatile hardware memory | 128Kbytes |
Program memory | 16?MB | Data memory | 64?MB |
Non-volatile software memory | 128Kbytes | Type of memory card | SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO's memory card) |
Memory card slot | Push-push mechanism; Cover lid (sealable) | Number of modules per node (max.) | 250 |
Number of modules without a bus extension (max.) | 64 | Input and output process image (internal) max. | 1000?words/1000?words |
Input and output process image (Modbus?) max. | CODESYS V2: 1000?words/1000?words | Indicators | LED (SYS, RUN, I/O, U1 … U7) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status of system power supply, field supply |
Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) | Input current (typ.) at nominal load (24?V) | 550mA |
Total current (system supply) | 1,700mA | Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts |
Current carrying capacity (power jumper contacts) | 10A | Number of outgoing power jumper contacts | 3 |
Isolation | 500?V system/field | Connection technology: communication/fieldbus | Modbus (TCP, UDP):?2 x RJ-45;?Modbus RTU:?1 x D-sub 9 socket;?RS-232 serial interface:?1 x D-sub 9 socket;?RS-485 interface:?1 x D-sub 9 socket;?Telecontrol protocol IEC 60870-5-101/-103:?1 x D-sub 9 socket;?Telecontrol protocol IEC 60870-5-104:?1 x RJ-45;?Telecontrol protocol IEC 61850:?1 x RJ-45;?Telecontrol protocol DNP3:?1 x RJ-45 or D-sub 9 socket |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection technology: field supply | 6 x CAGE CLAMP? |
Connection type 1 | System/field supply | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Connection technology: device configuration | 1 x Male connector; 4-pole | Width | 78.6?mm?/ 3.094?inches |
Height | 71.9?mm?/ 2.831?inches | Depth | 100?mm?/ 3.937?inches |
Weight | 231.3g | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Conformity marking | CE |
Ambient temperature (operation) | -20 … +60 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Relative humidity (without condensation) | 95% |
Relative humidity (with condensation) | Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of ?20 ?to +60 °C (except for wind-driven precipitation, water and ice formation) | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Mounting type | DIN-35 rail | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Fire load | 1.494MJ | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-07 |
eCl@ss 9.0 | 27-24-26-07 | ETIM 9.0 | EC000236 |
ETIM 8.0 | EC000236 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821892304 |
Customs tariff number | 8537109160 | End of Sale | 2020-12-31 |
End of Production | 2021-01-05 | End of Delivery | 2021-01-15 |
End of Service and Repair | 2022-12-31 | CAS-No. | 12060-00-3 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | e5fce22e-1a16-4584-97a0-1e139c5c1e93 |
SCIP notification number (Belgium) | 5b9b4024-4e31-42c9-8aab-e7f45679e4bd | SCIP notification number (Bulgaria) | 81dd16ba-46fb-458b-b58c-c316ccd2165b |
SCIP notification number (Czech Republic) | 3529d349-5d9e-4cfb-a411-6f2edc80a49c | SCIP notification number (Denmark) | dc441089-210f-4374-a99e-375a94ec619e |
SCIP notification number (Finland) | fcfa869c-9303-4506-b3d4-0dba073bc8ce | SCIP notification number (France) | 3a815a06-6fdd-4afa-9f9f-b5c2b5ab2ea5 |
SCIP notification number (Germany) | f689e6c4-1355-4dec-bc5f-407bfd56becf | SCIP notification number (Hungary) | 8333190e-3924-4b7d-bf36-2c1e23c8b0b8 |
SCIP notification number (Italy) | 48a772f4-4a0c-4f70-b010-c8633af9850b | SCIP notification number (Netherlands) | 97ee8d13-aa0c-4a4f-8a5a-21190f9433ef |
SCIP notification number (Poland) | b8a9dbbf-bfd6-496f-be04-867def8b9b48 | SCIP notification number (Romania) | 932e8e9a-c64d-437e-a5e5-53e1b87870fb |
SCIP notification number (Sweden) | 387b9c87-5607-4a49-a818-7ea00e5bebba |
Specifications may be subject to change without notice
