Product Model

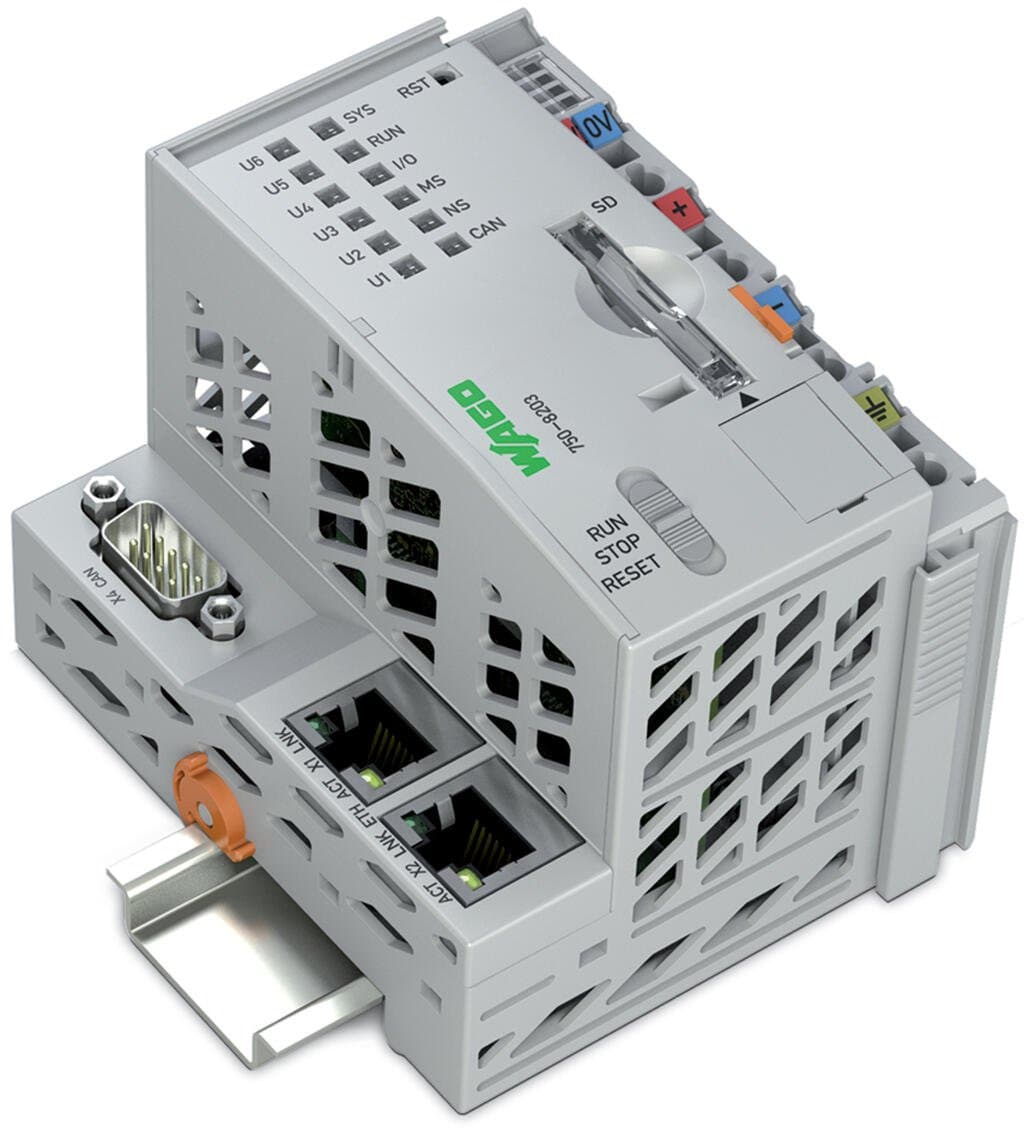

750-8203
Selling Points
- 1High processing speed for efficient control applications.
- 2Modular design allows for easy configuration and customization.
- 3Supports multiple fieldbus systems and ETHERNET standards.
- 4Integrated QA measures ensure consistent quality and reliability.
- 5Compatible with WAGO-I/O-PRO V2.3 for advanced programming and visualization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | CANopen | ETHERNET protocols | DHCP |
Visualization | Web-Visu | Operating system | Real-time Linux (with PREEMPT_RT patch) |
CPU | Cortex A8; 600 MHz | Programming languages per IEC 61131-3 | Instruction List (IL) |
Programming environment | e!COCKPIT(based on CODESYS V3) | Configuration options | e!COCKPIT |
Transmission rate | ETHERNET:?10/100?Mbit/s | Transmission medium (communication/fieldbus) | ETHERNET:?Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length |
Main memory (RAM) | 256MB | Internal memory (flash) | 256MB |
Non-volatile hardware memory | 128Kbytes | Program memory | CODESYS V2:?16?MB;?CODESYS V3:?60?MB (Program and data memory (dynamically distributed)) |
Data memory | CODESYS V2:?64?MB;?CODESYS V3:?60?MB?Program and data memory (dynamically distributed) | Non-volatile software memory | 128.Kbytes |
Type of memory card | SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO's memory card) | Memory card slot | Push-push mechanism; Cover lid (sealable) |
Number of modules per node (max.) | 250 | Number of modules without a bus extension (max.) | 64 |
Input and output process image (internal) max. | 1000?words/1000?words | Input and output process image (Modbus?) max. | CODESYS V2: 1000?words/1000?words |
Input and output process image (CAN) max. | 2000?words/2000?words | Indicators | LED (SYS, RUN, I/O, CAN, U1 … U6) red/green/orange: Status system, program, internal data bus, CANopen, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status system power supply, field supply |
Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) | Input current (typ.) at nominal load (24?V) | 550mA |
Total current (system supply) | 1,700mA | Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts |
Current carrying capacity (power jumper contacts) | 10A | Number of outgoing power jumper contacts | 3 |
Isolation | 500?V system/field | Connection technology: communication/fieldbus | CANopen:?1 x D-sub 9 plug;?Modbus (TCP, UDP):?2 x RJ-45 |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection technology: field supply | 6 x CAGE CLAMP? |
Connection type 1 | System/field supply | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Connection technology: device configuration | 1 x Male connector; 4-pole | Width | 78.6?mm?/ 3.094?inches |
Height | 71.9?mm?/ 2.831?inches | Depth | 100?mm?/ 3.937?inches |
Weight | 208.7g | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Relative humidity (without condensation) | 95% |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Mounting type | DIN-35 rail |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Fire load | 1.496MJ |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-07 |
eCl@ss 9.0 | 27-24-26-07 | ETIM 9.0 | EC000236 |
ETIM 8.0 | EC000236 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821739470 |
Customs tariff number | 8537109160 | End of Sale | 2020-12-31 |
End of Production | 2021-01-05 | End of Delivery | 2021-01-15 |
End of Service and Repair | 2022-12-31 | CAS-No. | 12060-00-3 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 559f072d-68d5-4277-9163-ec42362d3db2 |
SCIP notification number (Belgium) | 37f6f386-ef70-48be-a8cd-e192871e210f | SCIP notification number (Bulgaria) | 4fb32f59-7eec-421c-977b-6e304c03446e |
SCIP notification number (Czech Republic) | 9fe5cff7-9b38-465d-a0ac-5959dfc67d33 | SCIP notification number (Denmark) | 97821c91-b6ae-4625-9ac2-ccc551b15d6f |
SCIP notification number (Finland) | 9cd451c4-71c7-41e5-a2c4-171cebc1d6e9 | SCIP notification number (France) | 51ba4719-922b-479c-acbc-455924b401b0 |
SCIP notification number (Germany) | 4129ce98-7cd3-4486-9066-b54239b51f0e | SCIP notification number (Hungary) | b3f0238a-ce9d-42b1-a9ff-db661529d0f0 |
SCIP notification number (Italy) | d05c76c9-0f01-4a58-b6d5-99cf59a45bf6 | SCIP notification number (Netherlands) | f9041870-7d4c-4573-89d4-b080d6a0e965 |
SCIP notification number (Poland) | 2810d7ed-31e0-4b7e-a207-ab00d3906254 | SCIP notification number (Romania) | 88b1292d-728f-4596-877e-cf92f198b42f |
SCIP notification number (Sweden) | 21d3624d-b913-4e3e-a3cc-798822088ad2 |
Specifications may be subject to change without notice
