Product Model

750-8206

Manufacturer

wago

Category

Controllers Bus Couplers I/O

Product ID

39080

In Stock
Last updated: 2025/4/17
View Specifications

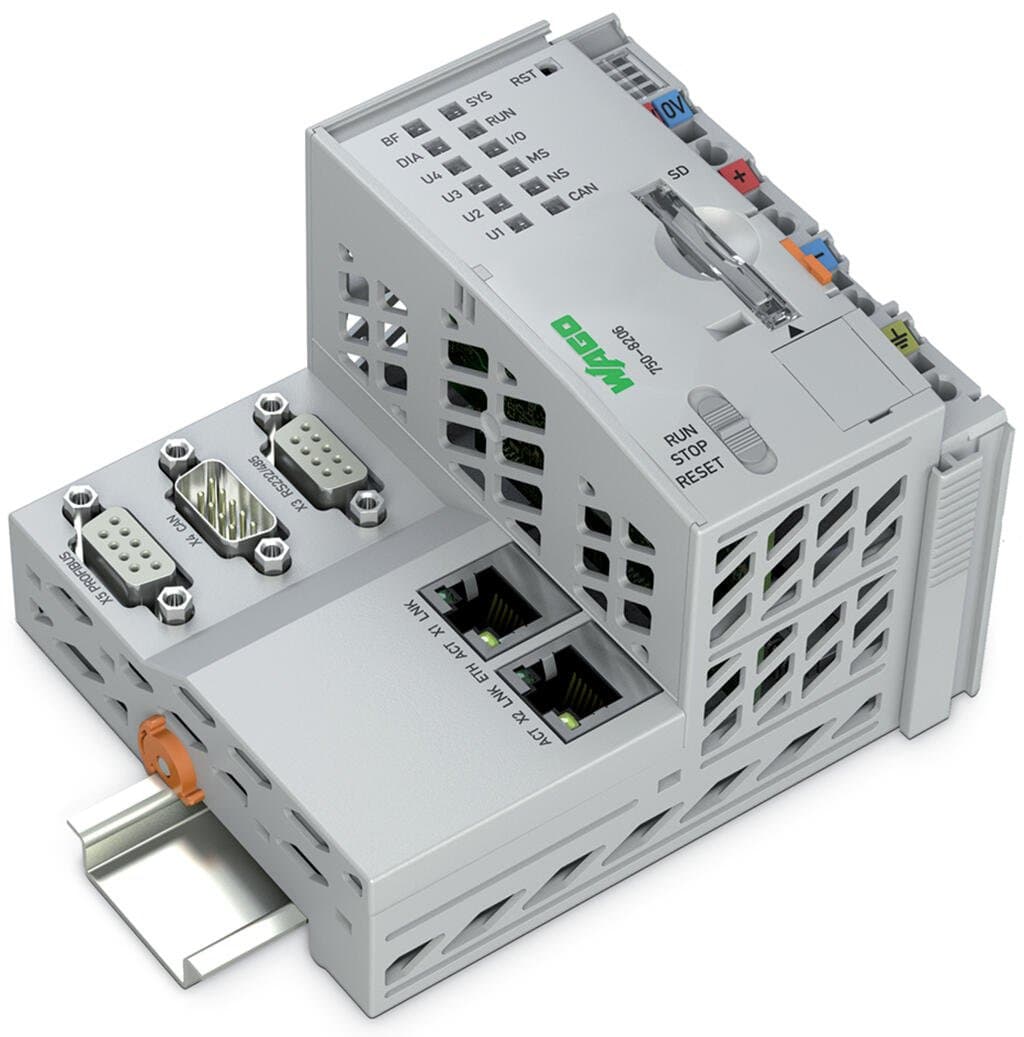

wago 750-8206

Selling Points

  • 1Compact PLC for modular WAGO-I/O-SYSTEM with network and fieldbus interfaces.
  • 2Supports all digital, analog, and specialty modules within the 750/753 Series.
  • 3Two ETHERNET interfaces with integrated switch for line topology wiring.
  • 4Integrated Web server for configuration options and status information.
  • 5Programmable via IEC 61131-3, WAGO-I/O-PRO V2.3, and Web-based management interface.
Product Details
750-8206
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Communications
PROFIBUS
ETHERNET protocols
DHCP
Visualization
Web-Visu
Operating system
Real-time Linux (with PREEMPT_RT patch)
CPU
Cortex A8; 600 MHz
Programming languages per IEC 61131-3
Instruction List (IL)
Programming environment
e!COCKPIT(based on CODESYS V3)
Configuration options
e!COCKPIT
Transmission rate
ETHERNET:?10/100?Mbit/s
Transmission medium (communication/fieldbus)
ETHERNET:?Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length
Main memory (RAM)
256MB
Internal memory (flash)
256MB
Non-volatile hardware memory
128Kbytes
Program memory
CODESYS V2:?16?MB;?CODESYS V3:?60?MB (Program and data memory (dynamically distributed))
Data memory
CODESYS V2:?64?MB;?CODESYS V3:?60?MB?Program and data memory (dynamically distributed)
Non-volatile software memory
128.Kbytes
Type of memory card
SD card
Memory card slot
Push-push mechanism; Cover lid (sealable)
Number of modules per node (max.)
250
Number of modules without a bus extension (max.)
64
Input and output process image (internal) max.
1000?words/1000?words
Input and output process image (Modbus?) max.
CODESYS V2: 1000?words/1000?words
Input and output process image (PROFIBUS) max.
244?bytes/244?bytes
Input and output process image (CAN) max.
2000?words/2000?words
Indicators
LED (SYS, RUN, I/O, CAN, BF, DIA, U1 … U4) red/green/orange: Status system, program, internal data bus, CANopen, PROFIBUS, PROFIBUS diagnostics, status programmable by user (can be used via CODESYS library); LED (A, B) green: System power supply status, field supply
Supply voltage (system)
24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection)
Input current (typ.) at nominal load (24?V)
550mA
Total current (system supply)
1,700mA
Supply voltage (field)
24?VDC?(-25 … +30?%);?via power jumper contacts
Current carrying capacity (power jumper contacts)
10A
Number of outgoing power jumper contacts
3
Isolation
500?V system/field
Connection technology: communication/fieldbus
PROFIBUS:?1 x D-sub 9 socket;?CANopen:?1 x D-sub 9 plug;?Modbus (TCP, UDP):?2 x RJ-45;?Modbus RTU:?1 x D-sub 9 socket;?RS-232 serial interface:?1 x D-sub 9 socket;?RS-485 interface:?1 x D-sub 9 socket
Connection technology: system supply
2 x CAGE CLAMP?
Connection technology: field supply
6 x CAGE CLAMP?
Connection type 1
System/field supply
Solid conductor
0.08 … 2.5?mm2?/ 28 … 14?AWG
Fine-stranded conductor
0.08 … 2.5?mm2?/ 28 … 14?AWG
Strip length
8 … 9?mm?/ 0.31 … 0.35?inches
Connection technology: device configuration
1 x Male connector; 4-pole
Width
112?mm?/ 4.409?inches
Height
100?mm?/ 3.937?inches
Depth
71.9?mm?/ 2.831?inches
Depth from upper-edge of DIN-rail
64.7?mm?/ 2.547?inches
Weight
253.5g
Color
light gray
Housing material
Polycarbonate; polyamide 6.6
Conformity marking
CE
Ambient temperature (operation)
0 … +55 °C
Ambient temperature (storage)
-25 … +85 °C
Protection type
IP20
Pollution degree
2 per IEC 61131-2
Operating altitude
without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.)
Relative humidity (without condensation)
95%
Mounting position
Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
Mounting type
DIN-35 rail
Vibration resistance
4g per IEC 60068-2-6
Shock resistance
15g per IEC 60068-2-27
EMC immunity to interference
per EN 61000-6-2, marine applications
EMC emission of interference
per EN 61000-6-3, marine applications
Exposure to pollutants
Per IEC 60068-2-42 and IEC 60068-2-43
Fire load
2.883MJ
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity &#60; 75%
10ppm
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity &#60; 75%
25ppm
Product Group
15 (I/O System)
eCl@ss 10.0
27-24-26-07
eCl@ss 9.0
27-24-26-07
ETIM 9.0
EC000236
ETIM 8.0
EC000236
ECCN
NO US CLASSIFICATION
PU (SPU)
1?pcs
Packaging type
box
Country of origin
DE
GTIN
4050821739494
Customs tariff number
8537109160
End of Sale
2020-12-31
End of Production
2021-01-05
End of Delivery
2021-01-15
End of Service and Repair
2022-12-31
CAS-No.
12060-00-3
REACH Candidate List Substance
2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol
RoHS Compliance Status
Compliant,With Exemption
RoHS Exemption
6(c)
SCIP notification number (Austria)
c9cb8722-e338-4094-97eb-2ef09131cf3f
SCIP notification number (Belgium)
0f61f5d9-3043-4cd1-bed4-8722e007d23f
SCIP notification number (Bulgaria)
7d5add08-edfa-4cec-a50f-bd199cfab7c7
SCIP notification number (Czech Republic)
2dc764dc-3775-4357-abc2-66d30dea8f0a
SCIP notification number (Denmark)
25ec5e3d-28fc-44bf-8d8b-742c3d8f02cf
SCIP notification number (Finland)
ea6a16b4-6ed8-4ec2-b5cc-5b4b3731fe9a
SCIP notification number (France)
26b3f27f-8aa2-41d8-859a-c7ab1e4feeed
SCIP notification number (Germany)
4229f4a2-2865-446e-ae84-8c50e2aeee3b
SCIP notification number (Hungary)
091ea187-1032-415f-b14e-f204b11d98e3
SCIP notification number (Italy)
5be4757a-7380-456c-a0f3-b32113a83ae5
SCIP notification number (Netherlands)
90e08d28-2dbf-499d-b855-6753bc2c36f0
SCIP notification number (Poland)
f7c79861-66d2-4e51-a5a0-63e73fce27bc
SCIP notification number (Romania)
20a9016c-c253-4422-b0d3-b479d11f0d7c
SCIP notification number (Sweden)
ca25e1de-9ee7-4803-9fc2-818f7f012db4

Specifications may be subject to change without notice
