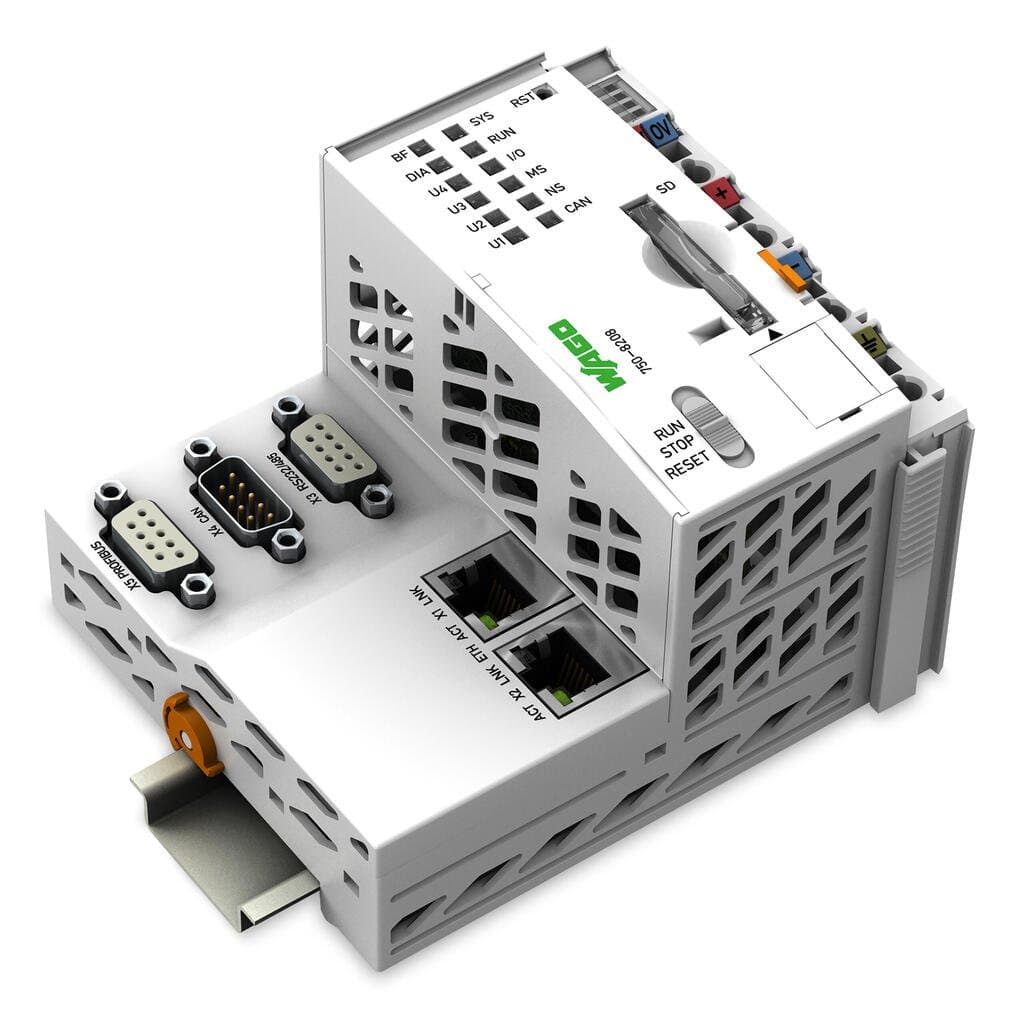

Product Model
750-8208
Selling Points
- 1Supports 2 x Ethernet, RS-232/-485, CAN, CANopen, and PROFIBUS-Master for seamless integration.
- 2Easily program and configure the controller using advanced software.
- 3Offers multiple communication protocols for diverse automation applications.
- 4Designed for robust performance in various industrial environments.
- 5Part of WAGO's comprehensive automation technology portfolio for modern machines and systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | PROFIBUS DP master | ETHERNET protocols | DHCP |
Visualization | Web-Visu | Operating system | Real-time Linux (with PREEMPT_RT patch) |
CPU | Cortex A8; 600 MHz | Programming languages per IEC 61131-3 | Instruction List (IL) |
Programming environment | WAGO-I/O-PROV2.3 (based on CODESYS V2.3) | Configuration options | WAGO-I/O-CHECK |
Transmission rate | ETHERNET:?10/100?Mbit/s | Transmission medium (communication/fieldbus) | ETHERNET:?Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length |
Main memory (RAM) | 256MB | Internal memory (flash) | 256MB |
Non-volatile hardware memory | 128Kbytes | Program memory | 16?MB |
Data memory | 64?MB | Non-volatile software memory | 128Kbytes |
Type of memory card | SD card | Memory card slot | Push-push mechanism; Cover lid (sealable) |
Number of modules per node (max.) | 250 | Number of modules without a bus extension (max.) | 64 |
Input and output process image (internal) max. | 1000?words/1000?words | Input and output process image (Modbus?) max. | CODESYS V2: 1000?words/1000?words |
Input and output process image (PROFIBUS) max. | 5000?bytes/5000?bytes | Input and output process image (CAN) max. | 2000?words/2000?words |
Indicators | LED (SYS, RUN, I/O, CAN, BF, DIA, U1 … U4) red/green/orange: Status system, program, internal data bus, CANopen, PROFIBUS, PROFIBUS diagnostics, status programmable by user (can be used via CODESYS library); LED (A, B) green: System power supply status, field supply | Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) |
Input current (typ.) at nominal load (24?V) | 670mA | Total current (system supply) | 1,700mA |
Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts | Current carrying capacity (power jumper contacts) | 10A |
Number of outgoing power jumper contacts | 3 | Isolation | 500?V system/field |
Connection technology: communication/fieldbus | PROFIBUS:?1 x D-sub 9 socket;?CANopen:?1 x D-sub 9 plug;?Modbus (TCP, UDP):?2 x RJ-45;?Modbus RTU:?1 x D-sub 9 socket;?RS-232 serial interface:?1 x D-sub 9 socket;?RS-485 interface:?1 x D-sub 9 socket | Connection technology: system supply | 2 x CAGE CLAMP? |
Connection technology: field supply | 6 x CAGE CLAMP? | Connection type 1 | System/field supply |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 112?mm?/ 4.409?inches | Height | 100?mm?/ 3.937?inches |
Depth | 71.9?mm?/ 2.831?inches | Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches |
Weight | 259g | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Relative humidity (without condensation) | 95% |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Mounting type | DIN-35 rail |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Fire load | 2.883MJ |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
eCl@ss 10.0 | 27-24-26-07 | eCl@ss 9.0 | 27-24-26-07 |
ETIM 9.0 | EC000236 | ETIM 8.0 | EC000236 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143554220 | Customs tariff number | 8537109160 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Bulgaria) | c9ceb1a1-3506-4286-a786-0c1c0835d11e | SCIP notification number (Czech Republic) | 15fae6b7-ffa8-4b50-a53f-8a5582baa53f |
Specifications may be subject to change without notice
