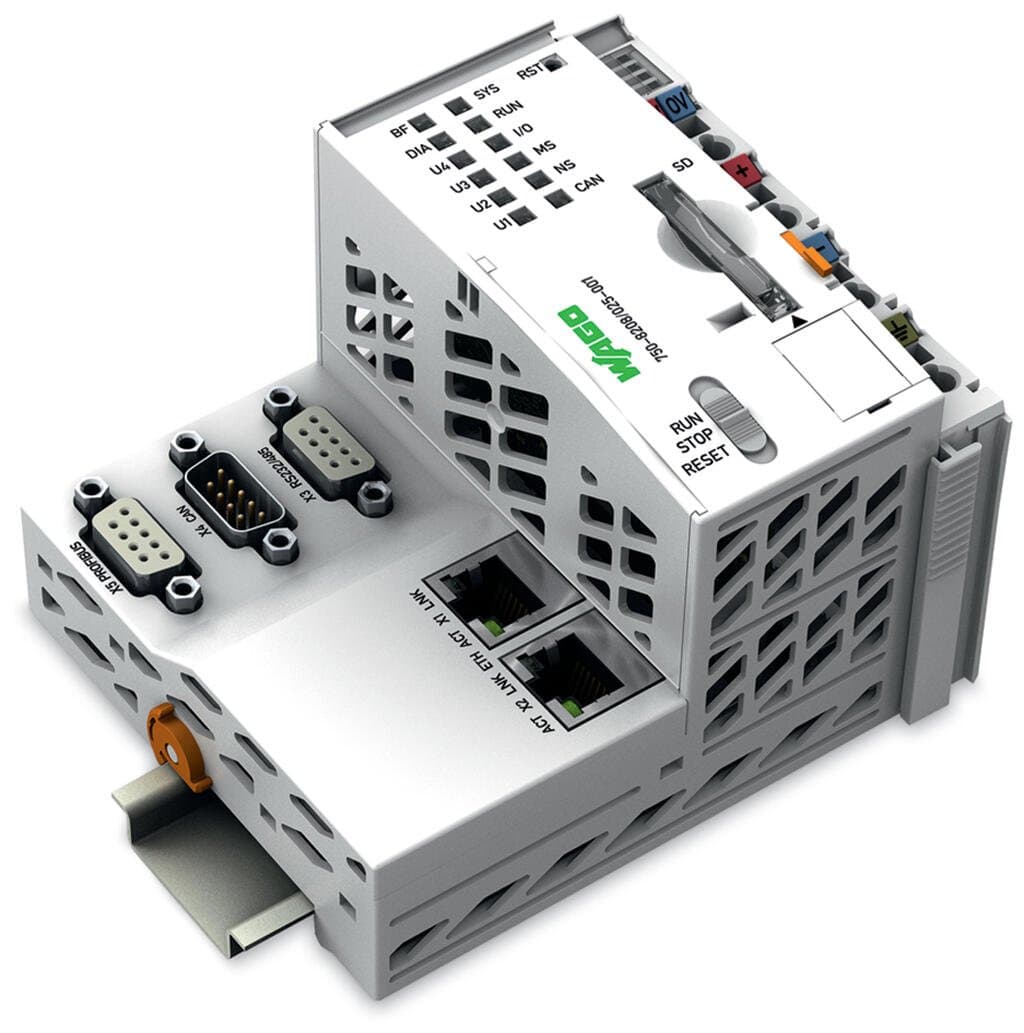

Product Model
750-8208/025-001
Selling Points
- 1Compact design for DIN-rail mounting.
- 2Supports multiple communication protocols: Ethernet, RS-232/-485, CAN, CANopen, and PROFIBUS-Master.
- 3Extensive temperature range operation: -20°C to +60°C.
- 4High current carrying capacity: up to 10 A via power jumper contacts.
- 5Robust construction with polycarbonate and polyamide 6.6 housing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | PROFIBUS DP master | ETHERNET protocols | DHCP |
Telecontrol protocols | IEC 60870 | Visualization | Web-Visu |
Operating system | Real-time Linux (with PREEMPT_RT patch) | CPU | Cortex A8; 600 MHz |
Programming languages per IEC 61131-3 | Instruction List (IL) | Programming environment | WAGO-I/O-PROV2.3 (based on CODESYS V2.3) |
Configuration options | WAGO-I/O-CHECK | Transmission rate | ETHERNET:?10/100?Mbit/s |
Transmission medium (communication/fieldbus) | ETHERNET:?Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length | Main memory (RAM) | 256MB |
Internal memory (flash) | 256MB | Non-volatile hardware memory | 128Kbytes |
Program memory | 16?MB | Data memory | 64?MB |
Non-volatile software memory | 128Kbytes | Type of memory card | SD card |
Memory card slot | Push-push mechanism; Cover lid (sealable) | Number of modules per node (max.) | 250 |
Number of modules without a bus extension (max.) | 64 | Input and output process image (internal) max. | 1000?words/1000?words |
Input and output process image (Modbus?) max. | CODESYS V2: 1000?words/1000?words | Input and output process image (PROFIBUS) max. | 5000?bytes/5000?bytes |
Input and output process image (CAN) max. | 2000?words/2000?words | Indicators | LED (SYS, RUN, I/O, CAN, BF, DIA, U1 … U4) red/green/orange: Status system, program, internal data bus, CANopen, PROFIBUS, PROFIBUS diagnostics, status programmable by user (can be used via CODESYS library); LED (A, B) green: System power supply status, field supply |
Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) | Input current (typ.) at nominal load (24?V) | 670mA |
Total current (system supply) | 1,700mA | Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts |
Current carrying capacity (power jumper contacts) | 10A | Number of outgoing power jumper contacts | 3 |
Isolation | 500?V system/field | Connection technology: communication/fieldbus | PROFIBUS:?1 x D-sub 9 socket;?CANopen:?1 x D-sub 9 plug;?Modbus (TCP, UDP):?2 x RJ-45;?Modbus RTU:?1 x D-sub 9 socket;?RS-232 serial interface:?1 x D-sub 9 socket;?RS-485 interface:?1 x D-sub 9 socket;?Telecontrol protocol IEC 60870-5-101/-103:?1 x D-sub 9 socket;?Telecontrol protocol IEC 60870-5-104:?1 x RJ-45;?Telecontrol protocol IEC 61850:?1 x RJ-45;?Telecontrol protocol DNP3:?1 x RJ-45 or D-sub 9 socket |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection technology: field supply | 6 x CAGE CLAMP? |
Connection type 1 | System/field supply | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Connection technology: device configuration | 1 x Male connector; 4-pole | Width | 112?mm?/ 4.409?inches |
Height | 100?mm?/ 3.937?inches | Depth | 71.9?mm?/ 2.831?inches |
Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches | Weight | 263.7g |
Housing material | Polycarbonate; polyamide 6.6 | Conformity marking | CE |
Ambient temperature (operation) | -20 … +60 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Relative humidity (without condensation) | 95% |
Relative humidity (with condensation) | Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of ?20 ?to +60 °C (except for wind-driven precipitation, water and ice formation) | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Mounting type | DIN-35 rail | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Fire load | 2.881MJ | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-07 |
eCl@ss 9.0 | 27-24-26-07 | ETIM 9.0 | EC000236 |
ETIM 8.0 | EC000236 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143624862 |
Customs tariff number | 8537109160 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | e60cdbe8-e8eb-47c2-820c-bda8c24ff6d2 |
SCIP notification number (Belgium) | 2c357c4e-0c23-4bd8-91f9-58d11cf45d62 | SCIP notification number (Bulgaria) | c07354b0-d9d2-4983-b5e4-a0a9b14313b5 |
SCIP notification number (Czech Republic) | 44eb197b-0101-4ea1-a77c-9251c2860ca0 | SCIP notification number (Denmark) | 251e5090-9374-4330-863d-4e865adb8268 |
SCIP notification number (Finland) | 4e8fe67c-dc90-4dfc-8489-730f5c358458 | SCIP notification number (France) | da745208-64b3-4e1f-8c7f-a3be2ed09096 |
SCIP notification number (Germany) | 1706d994-550a-435c-99c1-064eb77c7a66 | SCIP notification number (Hungary) | 14c6dd00-e3ed-4567-97b8-fc6783fd6e5c |
SCIP notification number (Italy) | 6d96de37-3a83-4b7c-9c83-3aebdd749a10 | SCIP notification number (Netherlands) | b899c693-2480-4912-a966-4f996b741394 |
SCIP notification number (Poland) | a4227334-5762-42f1-bf31-8b5e3a8984ac | SCIP notification number (Romania) | 69dce501-3ebe-436a-a8eb-0bec37fd92fb |
SCIP notification number (Sweden) | 4893713a-d71e-4549-975b-b1184223f275 |
Specifications may be subject to change without notice
