Product Model

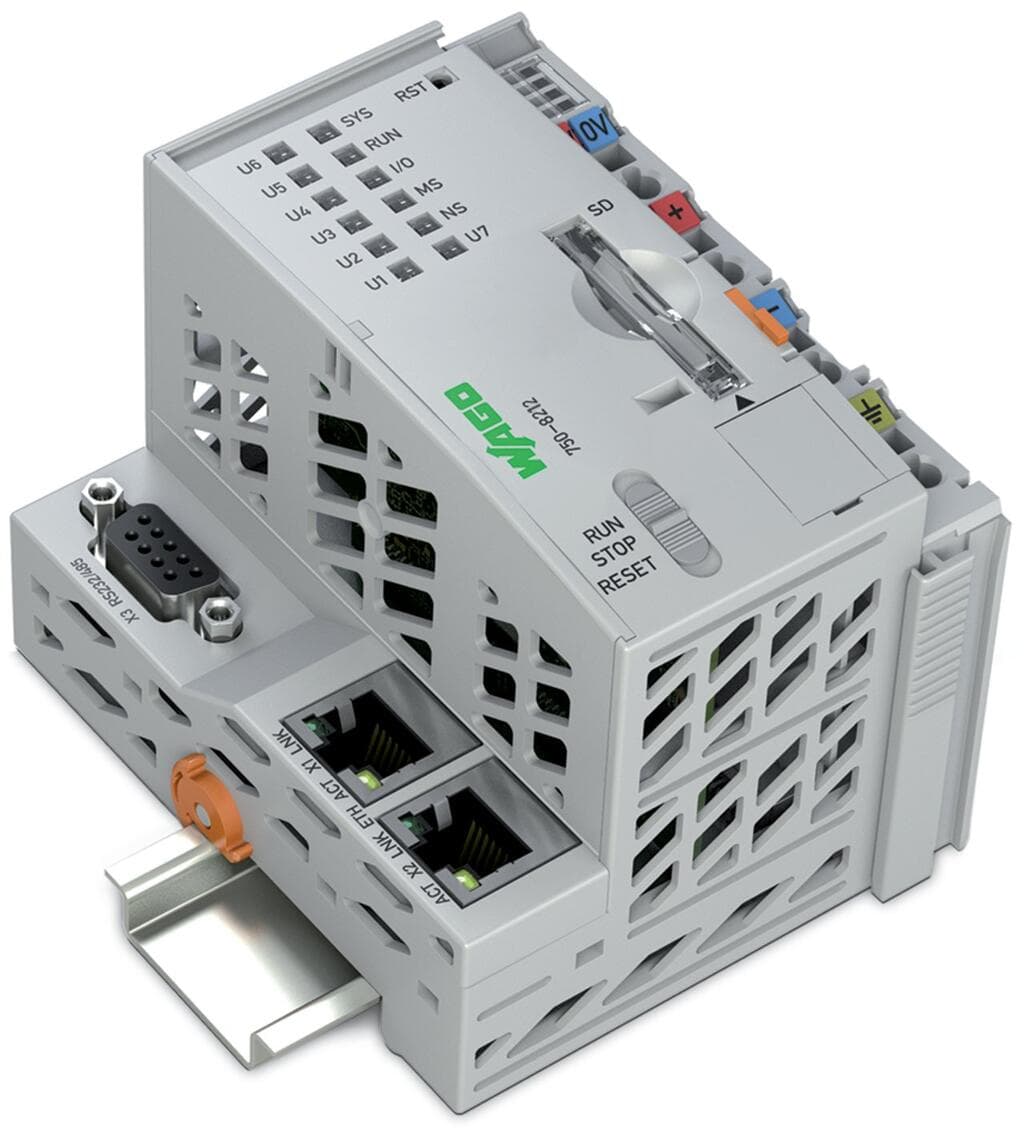

750-8212/025-001
Selling Points
- 1Advanced Telecontrol Technology: Supports Modbus RTU, Modbus TCP, Ethernet/IP, EtherCAT, RS-232, and RS-485 for seamless communication.
- 2Extended Temperature Range: Operates from -20°C to +60°C, ensuring reliability in various environments.
- 3High-Performance CPU: Equipped with an ARM Cortex-A8 1GHz processor for efficient processing.
- 4Robust Connectivity: Includes 2 x Ethernet interfaces and 1 x D-sub 9 socket for versatile connection options.
- 5Durable Design: Constructed with polycarbonate and polyamide 6.6, offering IP20 protection and resistance to shock and vibration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | Modbus TCP master/slave | ETHERNET protocols | DHCP |
Telecontrol protocols | IEC 60870 | Visualization | Web-Visu |
Operating system | Real-time Linux (with PREEMPT_RT patch) | CPU | Cortex A8; 1 GHz |
Programming languages per IEC 61131-3 | Instruction List (IL) | Programming environment | CODESYS V3.5, Firmware Release 23 or higher |
Configuration options | CODESYS V3 | Transmission rate | ETHERNET:?10/100?Mbit/s |
Transmission medium (communication/fieldbus) | ETHERNET:?Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length | Main memory (RAM) | 512MB |
Internal memory (flash) | 4096MB | Non-volatile hardware memory | 128Kbytes |
Program memory | CODESYS V2:?16?MB;?CODESYS V3:?32?MB | Data memory | CODESYS V2:?64?MB;?CODESYS V3:?128?MB |
Non-volatile software memory | 128.Kbytes | Type of memory card | SD card |
Memory card slot | Push-push mechanism; Cover lid (sealable) | Number of modules per node (max.) | 250 |
Number of modules without a bus extension (max.) | 64 | Input and output process image (internal) max. | 1000?words/1000?words |
Input and output process image (Modbus?) max. | CODESYS V2: 1000?words/1000?words; CODESYS V3: 32000?words/32000?words | Indicators | LED (SYS, RUN, I/O, U1 … U7) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status of system power supply, field supply |
Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) | Input current (typ.) at nominal load (24?V) | 550mA |
Total current (system supply) | 1,700mA | Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts |
Current carrying capacity (power jumper contacts) | 10A | Number of outgoing power jumper contacts | 3 |
Isolation | 500?V system/field | Connection technology: communication/fieldbus | Modbus (TCP, UDP):?2 x RJ-45;?Modbus RTU:?1 x D-sub 9 socket;?RS-232 serial interface:?1 x D-sub 9 socket;?RS-485 interface:?1 x D-sub 9 socket;?Telecontrol protocol IEC 60870-5-101/-103:?1 x D-sub 9 socket;?Telecontrol protocol IEC 60870-5-104:?1 x RJ-45;?Telecontrol protocol IEC 61850:?1 x RJ-45;?Telecontrol protocol DNP3:?1 x RJ-45 or D-sub 9 socket |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection technology: field supply | 6 x CAGE CLAMP? |
Connection type 1 | System/field supply | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Connection technology: device configuration | 1 x Male connector; 4-pole | Width | 78.6?mm?/ 3.094?inches |
Height | 100?mm?/ 3.937?inches | Depth | 71.9?mm?/ 2.831?inches |
Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches | Weight | 219.9g |
Housing material | Polycarbonate; polyamide 6.6 | Conformity marking | CE |
Ambient temperature (operation) | -20 … +60 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Relative humidity (without condensation) | 95% |
Relative humidity (with condensation) | Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of ?20 ?to +60 °C (except for wind-driven precipitation, water and ice formation) | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Mounting type | DIN-35 rail | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Fire load | 2.521MJ | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-07 |
eCl@ss 9.0 | 27-24-26-07 | ETIM 9.0 | EC000236 |
ETIM 8.0 | EC000236 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143765039 |
Customs tariff number | 8537109160 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 33a73aaa-3201-4f06-bf11-19ff1d613c6c |
SCIP notification number (Belgium) | ad51e8bf-8bff-416e-9fd9-bf58b9e4f29f | SCIP notification number (Bulgaria) | 9efc58d2-6aea-42ed-afa2-939b3a738c15 |
SCIP notification number (Czech Republic) | 3a2ecf12-f45f-4520-9110-0a38a306cd58 | SCIP notification number (Denmark) | 1c60bcb4-90e6-469a-a9d7-30bd8dcf0241 |
SCIP notification number (Finland) | c5959470-afaf-422a-bdec-4264d90597ad | SCIP notification number (France) | c71b33d6-8387-47da-90f6-0a07fa0fba67 |
SCIP notification number (Germany) | 4778bbee-f0f1-41c1-8b6f-8eed1c41bc04 | SCIP notification number (Hungary) | edffc353-2aa2-4da6-98b1-b080da267f9e |
SCIP notification number (Italy) | 109688a1-c73e-46f6-aeed-f59a90198b0c | SCIP notification number (Netherlands) | 783469d9-425a-42b7-8ce6-2fbe5f1c9dd5 |
SCIP notification number (Poland) | 94d3e0b7-a9d7-4c14-bf25-49f60cc7c600 | SCIP notification number (Romania) | 23b512ed-7085-4085-8f9b-42710238e5d5 |
SCIP notification number (Sweden) | 35bf4daf-3cb3-4da9-8183-ecf33f4468d9 |
Specifications may be subject to change without notice
