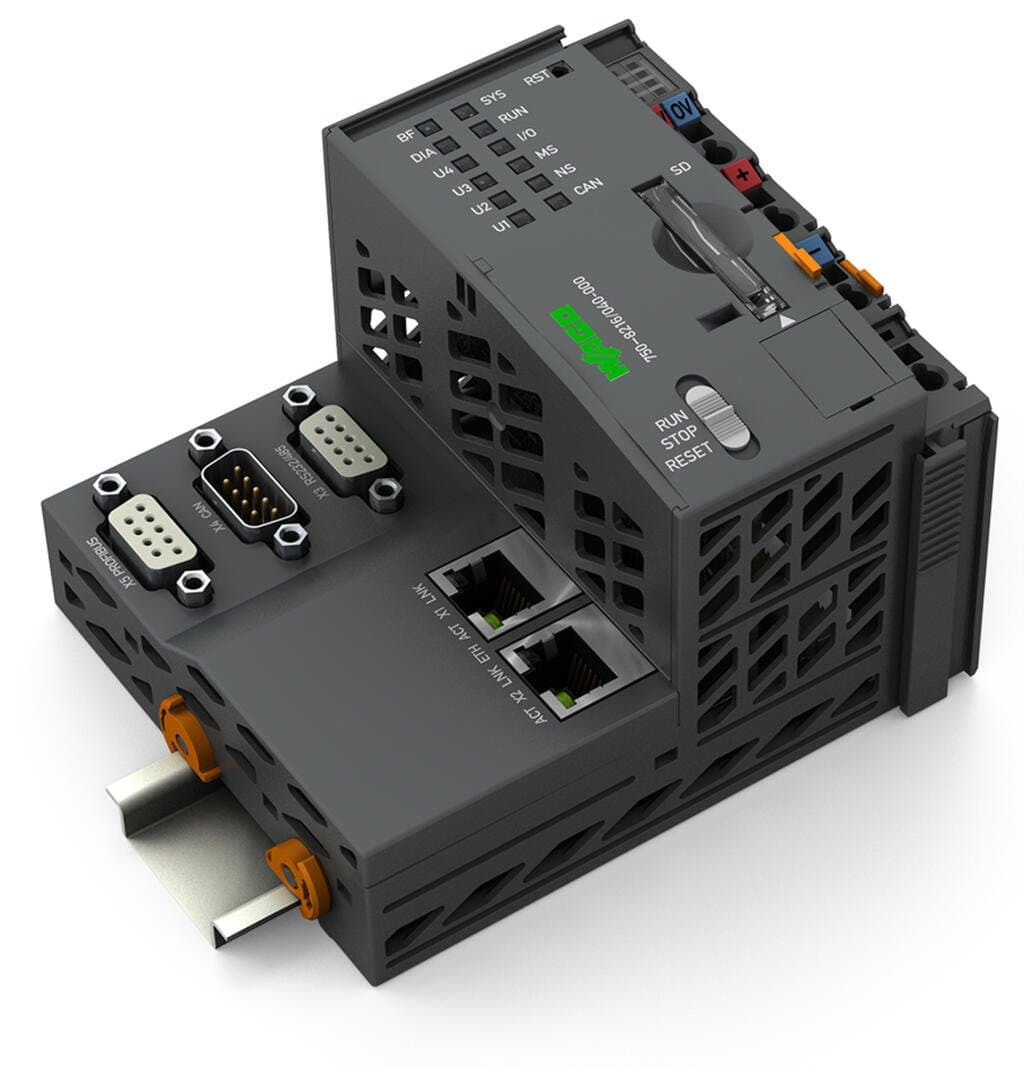

Product Model
750-8216/040-000
Selling Points
- 1Equipped with a Cortex A8 1GHz processor for efficient processing.
- 2Supports Modbus RTU, Modbus TCP, Ethernet, CANopen, PROFIBUS, RS-232, and RS-485 communication protocols.
- 3Operates in temperatures from -40°C to +70°C, making it suitable for various industrial environments.
- 4Supports up to 64 connections per node and 250 field devices.
- 5Mounts on DIN-35 rail with a width of 112mm, ideal for space-constrained applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | PROFIBUS | ETHERNET protocols | DHCP |
Telecontrol protocols | IEC 60870 (additional license as slave or master) | Visualization | Web-Visu |
Operating system | Real-time Linux (with PREEMPT_RT patch) | CPU | Cortex A8; 1 GHz |
Programming languages per IEC 61131-3 | Instruction List (IL) | Programming environment | CODESYS V3.5, Firmware Release 23 or higher |
Configuration options | CODESYS V3 | Transmission rate | ETHERNET:?10/100?Mbit/s |
Transmission medium (communication/fieldbus) | ETHERNET:?Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length | Main memory (RAM) | 512MB |
Internal memory (flash) | 4096MB | Non-volatile hardware memory | 128Kbytes |
Program memory | CODESYS V2:?16?MB;?CODESYS V3:?32?MB | Data memory | CODESYS V2:?64?MB;?CODESYS V3:?128?MB |
Non-volatile software memory | 128.Kbytes | Type of memory card | SD card |
Memory card slot | Push-push mechanism; Cover lid (sealable) | Number of modules per node (max.) | 64 |
Number of modules without a bus extension (max.) | 64 | Input and output process image (internal) max. | 1000?words/1000?words |
Input and output process image (Modbus?) max. | CODESYS V2: 1000?words/1000?words; CODESYS V3: 32000?words/32000?words | Input and output process image (PROFIBUS) max. | 244?bytes/244?bytes |
Input and output process image (CAN) max. | 2000?words/2000?words | Indicators | LED (SYS, RUN, I/O, CAN, BF, DIA, U1 … U4) red/green/orange: Status system, program, internal data bus, CANopen, PROFIBUS, PROFIBUS diagnostics, status programmable by user (can be used via CODESYS library); LED (A, B) green: System power supply status, field supply |
Derating | Derating (supply voltage):Ambient temperatures under laboratory conditions: (?25 … +30°%);for ?40 … +55°°C: 24°V (?25 … +20°%);for +55 … +70°°C: 24°V (?25 … +10°%);Lower limit in all temperature ranges: ?27.5°% (including 15°% residual ripple) | Supply voltage (system) | 24?VDC;?via pluggable connector (CAGE CLAMP? connection); Derating must be observed! |
Input current (typ.) at nominal load (24?V) | 550mA | Total current (system supply) | 1,700mA |
Supply voltage (field) | 24?VDC;?Power supply via pluggable connector (CAGE CLAMP? connection); Transmission via power jumper contacts; Derating must be observed! | Current carrying capacity (power jumper contacts) | 10A |
Number of outgoing power jumper contacts | 2 | Rated surge voltage | 1?kV |
Connection technology: communication/fieldbus | PROFIBUS:?1 x D-sub 9 socket;?CANopen:?1 x D-sub 9 plug;?Modbus (TCP, UDP):?2 x RJ-45;?Modbus RTU:?1 x D-sub 9 socket;?RS-232 serial interface:?1 x D-sub 9 socket;?RS-485 interface:?1 x D-sub 9 socket | Connection technology: system supply | 2 x CAGE CLAMP? |
Connection technology: field supply | 4 x CAGE CLAMP? | Connection type 1 | System/field supply |
Solid conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 112?mm?/ 4.409?inches | Height | 100?mm?/ 3.937?inches |
Depth | 71.9?mm?/ 2.831?inches | Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches |
Weight | 260.8g | Housing material | Polycarbonate; polyamide 6.6 |
Conformity marking | CE | Ambient temperature (operation) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | Without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom | Mounting type | DIN-35 rail |
Vibration resistance | Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 | Shock resistance | Per IEC 60068-2-27 (15g/11?ms/half-sine/1,000 shocks; 25g/6?ms/1,000 shocks), EN 50155, EN 61373 |
EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 | EMC emission of interference | Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Fire load | 3.264MJ |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
ETIM 9.0 | EC000236 | ETIM 8.0 | EC000236 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4066966207248 | Customs tariff number | 85371091990 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 1b65ad4d-7437-4d04-a2b7-f9a5389ebc2c | SCIP notification number (Belgium) | 6305a740-f15f-447a-95b6-be34d00756ce |
SCIP notification number (Bulgaria) | 2356dd73-bd19-43c3-9064-2e02e2bd2daa | SCIP notification number (Czech Republic) | f71c5135-a0d8-4a0e-a750-0a072ee557bc |
SCIP notification number (Denmark) | bd678f63-7841-432d-944b-7645e7f657cf | SCIP notification number (Finland) | 633e5077-0f05-404e-9d2e-ecd31e27bec4 |
SCIP notification number (France) | c3298fa1-7110-4e7d-9943-b3b4d4651979 | SCIP notification number (Germany) | 0b3379c6-e654-4ad6-9f0b-50107ce56045 |
SCIP notification number (Hungary) | 7141143d-bf38-4eaf-8ce8-e3c5fa1b3eb9 | SCIP notification number (Italy) | 3f972d69-4649-4a12-9ea6-ec50812e693f |
SCIP notification number (Netherlands) | 64a9a2f0-1b38-4339-b024-27b0f7fa42ec | SCIP notification number (Poland) | 3b79a961-2ea7-4a5c-8a7c-ab3da8cc105c |
SCIP notification number (Romania) | 9ec0187b-0805-4d3a-a51f-a7381db35bdc | SCIP notification number (Sweden) | fddac41f-8cee-42d0-b275-fbe95a9bfdcb |
Specifications may be subject to change without notice
