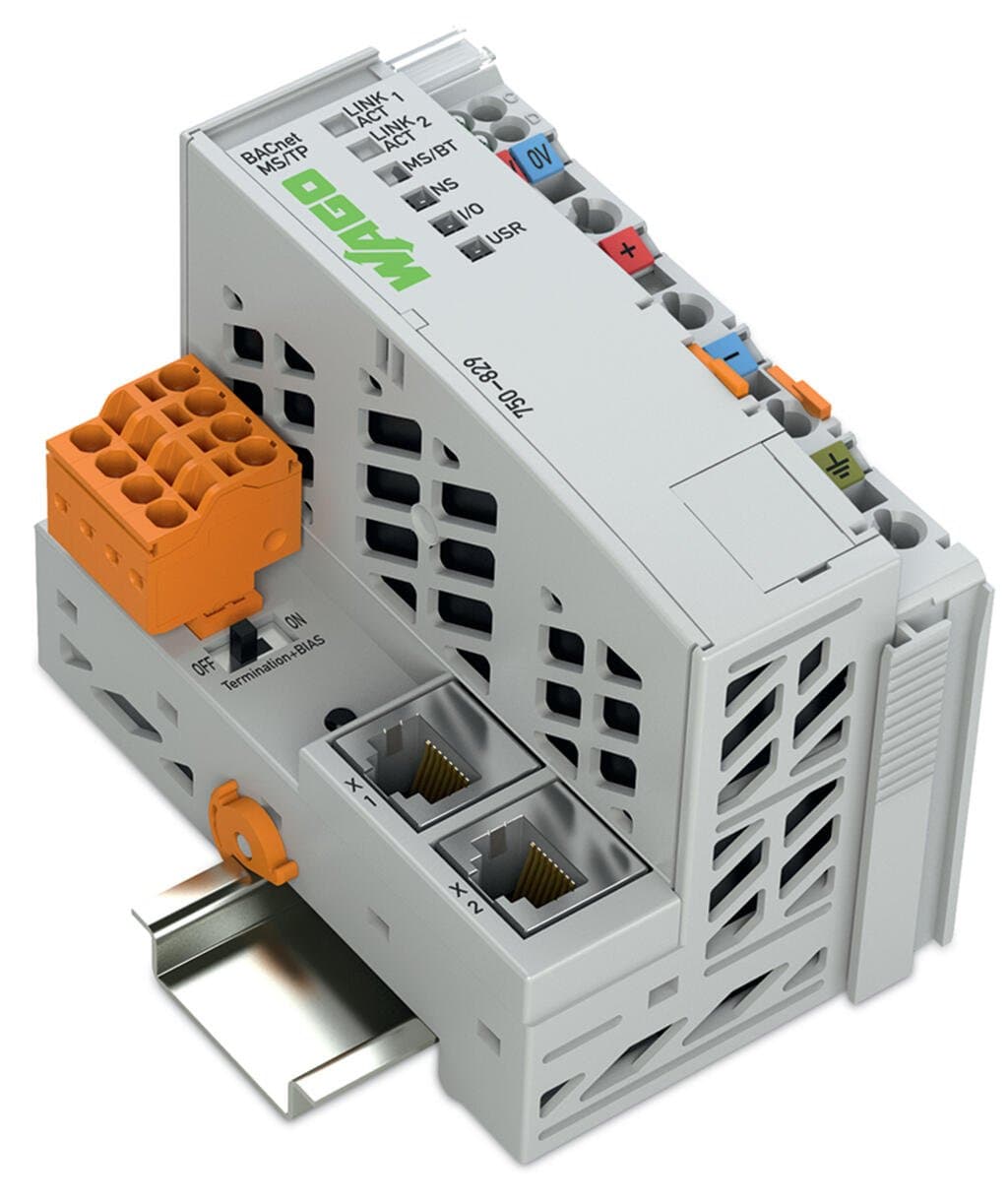

Product Model
750-829
Selling Points
- 1IEC 61131-3 Compliant Programming: Program your automation tasks with ease using IEC 61131-3 compliant programming.
- 2DIN Rail Mounting: Easily integrate into your existing DIN rail systems for a seamless setup.
- 3BACnet MS/TP Support: Communicate with other BACnet devices via BACnet MS/TP protocol.
- 4Multitasking Capabilities: Handle multiple tasks simultaneously with the controller's multitasking capabilities.
- 5Battery-Backed RTC: Ensure continuous operation with a battery-backed real-time clock (RTC).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The WAGO BACnet Configurator can be downloaded for free at www.wago.com. | Communications | BACnet MS/TP |
ETHERNET protocols | HTTP | Visualization | Web-Visu |
CPU | 32 bits | Programming languages per IEC 61131-3 | Instruction List (IL) |
Programming environment | WAGO-I/O-PROV2.3 (based on CODESYS V2.3) | Configuration options | WAGO-I/O-CHECK |
Network length (max.) | limited by IEEE 802.3 specification | Transmission rate | BACnet MS/TP: 38.4 kBd (9600, 19200, 38400*, 57600, 76800, 115200 Bd (per BACnet standard); * Factory setting); ETHERNET:10/100 Mbit/s |
Bus segment length (max.) | BACnet MS/TP: 1200?m;?Depends on baud rate/cable (per BACnet standard) 1200 m at ≤ 76800 baud; 1000 m at > 76800 baud;?ETHERNET: 100?m | Transmission medium (communication/fieldbus) | ETHERNET:?Twisted Pair S-UTP, STP; 100 Ω; Cat. 5e |
Program memory | 1024?KB | Data memory | 1024?KB |
Non-volatile software memory | 32Kbytes | Memory for fieldbus input variables (max.) | 512Byte |
Memory for fieldbus output variables (max.) | 512Byte | Number of modules per node (max.) | 99 |
Number of modules without a bus extension (max.) | 64 | Input and output process image (fieldbus) max. | 1020?words/1020?words |
Device-specific | BACnet device profile: B-BC (BACnet building controller); BACnet revision: 1.7 | Powerfail RTC buffer | 6 days (min.) |
Indicators | LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS/BT, NS) red/green: Status of node/BACnet, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: Status of system power supply, field supply | Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) |
Input current (typ.) at nominal load (24?V) | 500mA | Power supply efficiency (typ.) at nominal load (24 V) | 90% |
Current consumption (5 V system supply) | 450mA | Total current (system supply) | 1,700mA |
Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts | Current carrying capacity (power jumper contacts) | 10A |
Number of outgoing power jumper contacts | 3 | Isolation | 500 V system/supply; BACnet MS/TP: 1500 V (per BACnet standard) |
WSPCert certification | in Vorbereitung | Connection technology: communication/fieldbus | BACnet MS/TP:?1 x Male connector; 4-pole;?Modbus (TCP, UDP):?2 x RJ-45 |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection technology: field supply | 6 x CAGE CLAMP? |
Connection type 1 | System/field supply | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Connection type 2 | Communication/fieldbus: BACnet MS/TP | Solid conductor 2 | 0.2 … 2.5?mm2?/ 24 … 12?AWG |
Fine-stranded conductor 2 | 0.2 … 2.5?mm2?/ 24 … 12?AWG | Strip length 2 | 9 … 10?mm?/ 0.35 … 0.39?inches |
Connection technology: device configuration | 1 x Male connector; 4-pole | Width | 61.5?mm?/ 2.421?inches |
Height | 100?mm?/ 3.937?inches | Depth | 71.9?mm?/ 2.831?inches |
Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches | Weight | 168.9g |
Housing material | Polycarbonate; polyamide 6.6 | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Relative humidity (without condensation) | 95% |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Mounting type | DIN-35 rail |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-3 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Fire load | 2.986MJ |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
eCl@ss 10.0 | 27-24-26-07 | eCl@ss 9.0 | 27-24-26-07 |
ETIM 9.0 | EC000236 | ETIM 8.0 | EC000236 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143235310 | Customs tariff number | 8537109160 |
CAS-No. | 12060-00-3 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Bulgaria) | e4ed94cb-c666-46e7-9f36-4aa8afba5209 | SCIP notification number (Czech Republic) | 92245d93-5f22-4f22-8006-53bbb3a657bd |
Specifications may be subject to change without notice
