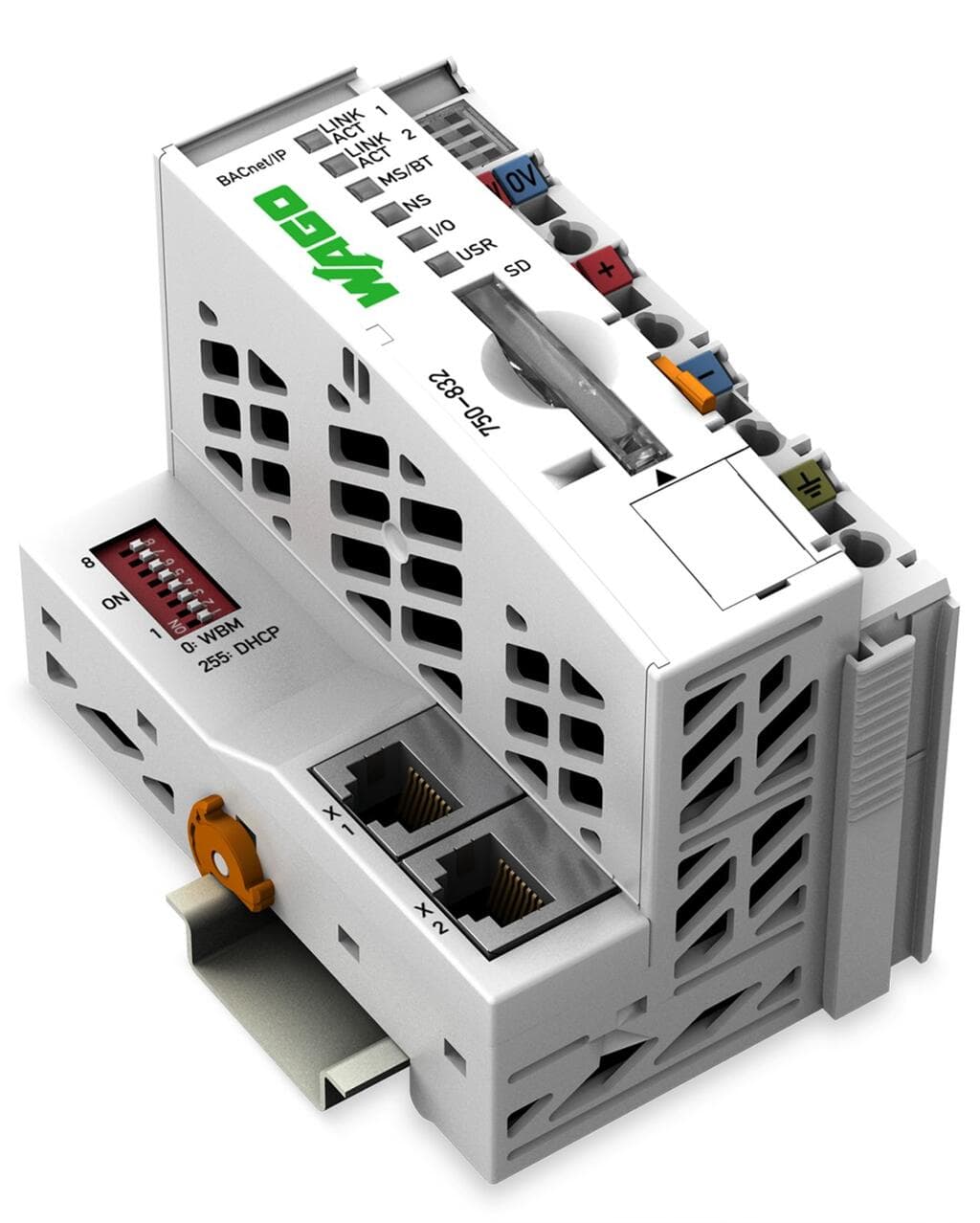

Product Model
750-832
Selling Points
- 1High-quality connectors ensure reliable connections in harsh industrial environments.
- 2Durable design withstands extreme temperatures and heavy use.
- 3Easy installation with snap-in connectors for quick setup.
- 4Compact size fits seamlessly into tight spaces, reducing installation time.
- 5Meets or exceeds industry standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The WAGO BACnet Configurator can be downloaded for free at www.wago.com. | Communications | BACnet/IP |
ETHERNET protocols | HTTP(S) | Visualization | Web-Visu |
CPU | 32 bits | Programming languages per IEC 61131-3 | Instruction List (IL) |
Programming environment | WAGO-I/O-PROV2.3 (based on CODESYS V2.3) | Configuration options | WAGO-I/O-CHECK |
Transmission rate | 10/100?Mbit/s | Transmission medium (communication/fieldbus) | Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length |
Transmission performance | Class D per EN 50173 | Program memory | 8?MB |
Data memory | 8?MB | Non-volatile software memory | 32Kbytes |
Type of memory card | SD card | Memory card slot | Push-push mechanism; Cover lid (sealable) |
Number of modules per node (max.) | 250 | Number of modules without a bus extension (max.) | 64 |
Input and output process image (fieldbus) max. | 1020?words/1020?words | Device-specific | BACnet device profile: B-BC (BACnet building controller); BACnet revision: 12 |
Indicators | LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS/BT, NS) red/green: Status of node/BACnet, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: Status of system power supply, field supply | Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) |
Input current (typ.) at nominal load (24?V) | 500mA | Power supply efficiency (typ.) at nominal load (24 V) | 90% |
Current consumption (5 V system supply) | 440mA | Total current (system supply) | 1,700mA |
Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts | Current carrying capacity (power jumper contacts) | 10A |
Number of outgoing power jumper contacts | 3 | Isolation | 500?V system/field |
Connection technology: communication/fieldbus | BACnet/IP:?2 x RJ-45;?Modbus (TCP, UDP):?2 x RJ-45 | Connection technology: system supply | 2 x CAGE CLAMP? |
Connection technology: field supply | 6 x CAGE CLAMP? | Connection type 1 | System/field supply |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 61.5?mm?/ 2.421?inches | Height | 100?mm?/ 3.937?inches |
Depth | 71.9?mm?/ 2.831?inches | Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches |
Weight | 151.8g | Housing material | Polycarbonate; polyamide 6.6 |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
Relative humidity (without condensation) | 95% | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Mounting type | DIN-35 rail | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-3 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Fire load | 2.47MJ | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | ETIM 9.0 | EC000236 |
ETIM 8.0 | EC000236 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143888561 |
Customs tariff number | 8537109160 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | ec5f0e96-7501-4211-be8a-192fa75d829c |
SCIP notification number (Belgium) | d48fb674-ecab-4a17-9416-d40af95661e5 | SCIP notification number (Bulgaria) | 481b6b3e-6d69-43e5-bf26-7f94f1aedec9 |
SCIP notification number (Czech Republic) | 5778effb-5e7a-4998-acde-062cb1e7e4b7 | SCIP notification number (Denmark) | 28f67fe3-001e-4741-8b5d-bed2ab8f3a2b |
SCIP notification number (Finland) | 1803eeb4-49e8-4300-bde9-f2ec52863363 | SCIP notification number (France) | 5b0a7fcb-9a93-48fa-9db9-b04d0df35e87 |
SCIP notification number (Germany) | e96108de-fdcf-42cf-ae3c-b027d1f6505c | SCIP notification number (Hungary) | 02788357-ba60-4349-8a43-639be6ae1149 |
SCIP notification number (Italy) | c9012bd0-07f3-444e-b984-e508a0139eef | SCIP notification number (Netherlands) | 0e0f2b7e-0b00-401d-b3a4-d6c4ef3078b7 |
SCIP notification number (Poland) | bd0347d6-221d-47ee-bd2f-f41b1d525deb | SCIP notification number (Romania) | ae6710d5-1bde-4ba6-98a8-d0b6d0cbcd98 |
SCIP notification number (Sweden) | cf148ad1-16ba-4fa0-b5d5-97968bfa247b |
Specifications may be subject to change without notice
