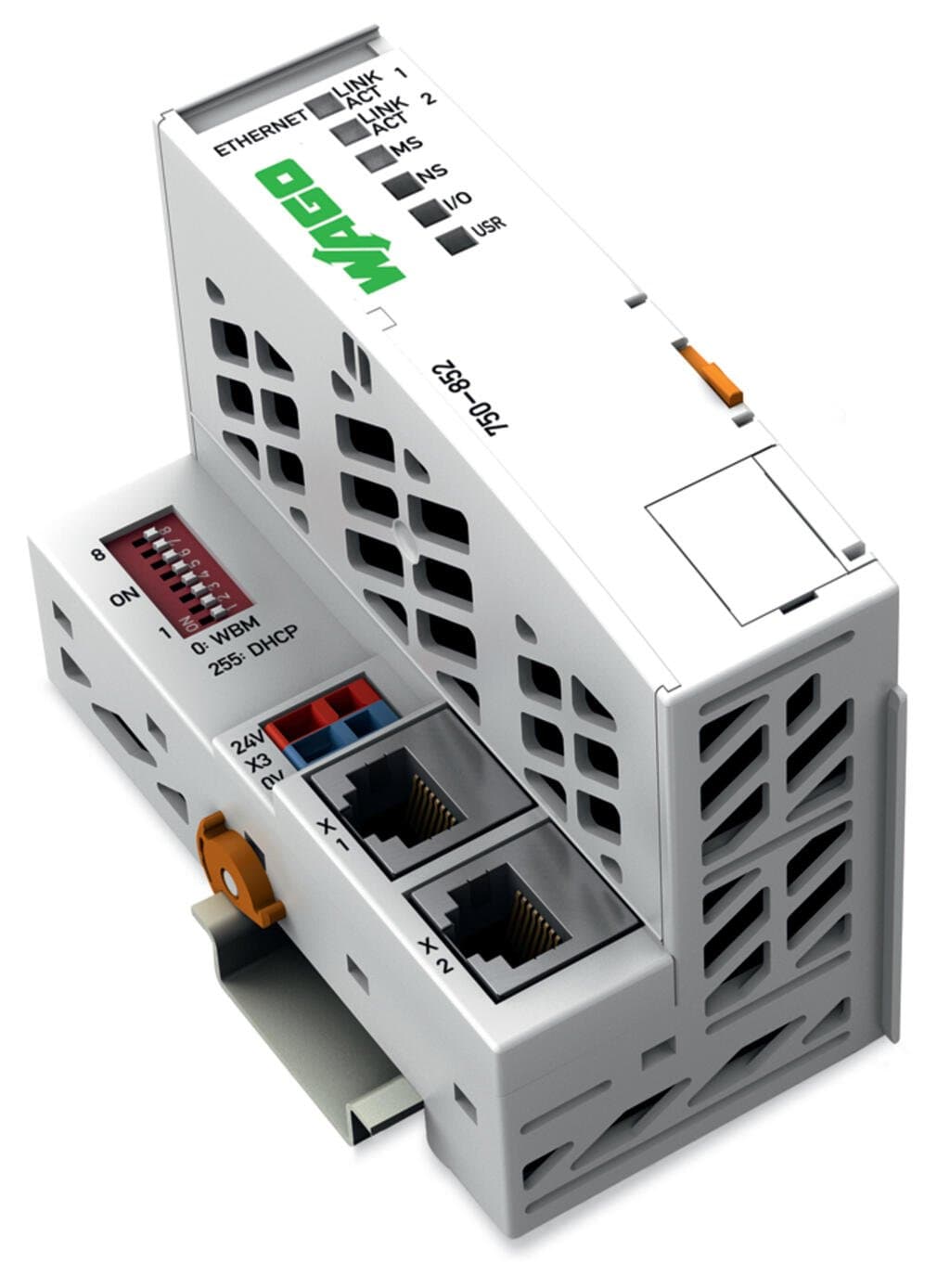

Product Model
750-852
Selling Points
- 1Connects Ethernet to the modular WAGO-I/O-SYSTEM for seamless integration.
- 2Detects all connected I/O modules and creates a local process image.
- 3Supports EtherNet/IP and Modbus TCP/UDP protocols for versatile communication.
- 4Features 512 KB program memory, 256 KB data memory, and 8 KB non-volatile software memory.
- 5Ensures high reliability with IP20 protection and 500 V system/supply isolation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | EtherNet/IPTM | ETHERNET protocols | HTTP |
Visualization | Web server | CPU | 32 bits |
Programming languages per IEC 61131-3 | Instruction List (IL) | Programming environment | WAGO-I/O-PROV2.3 (based on CODESYS V2.3) |
Configuration options | WAGO-I/O-CHECK | Transmission rate | 10/100?Mbit/s |
Transmission medium (communication/fieldbus) | Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length | Transmission performance | Class D per EN 50173 |
Program memory | 512?KB | Data memory | 256?KB |
Non-volatile software memory | 8Kbytes | Number of modules per node (max.) | 250 |
Number of modules without a bus extension (max.) | 64 | Input and output process image (fieldbus) max. | 1020?words/1020?words |
Indicators | LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user | Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector |
Input current (typ.) at nominal load (24?V) | 300mA | Power supply efficiency (typ.) at nominal load (24 V) | 90% |
Current consumption (5 V system supply) | 400mA | Total current (system supply) | 700mA |
Isolation | 500?V system/field | Connection technology: communication/fieldbus | EtherNet/IPTM: 2 x RJ-45; Modbus (TCP, UDP): 2 x RJ-45 |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection type 1 | System supply |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 49.5?mm?/ 1.949?inches | Height | 71.9?mm?/ 2.831?inches |
Depth | 96.8?mm?/ 3.811?inches | Weight | 83.1g |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
Relative humidity (without condensation) | 95% | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Mounting type | DIN-35 rail | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Fire load | 1.452MJ | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-07 | eCl@ss 9.0 | 27-24-26-07 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821753940 | Customs tariff number | 8537109160 |
End of Sale | 2019-12-15 | End of Production | 2019-12-20 |
End of Delivery | 2019-12-30 | End of Service and Repair | 2021-12-14 |
CAS-No. | 12060-00-3 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | f8b1474e-235f-44e7-b14b-b7ba6403018c | SCIP notification number (Belgium) | e145346b-17ad-407a-b3af-384e34b6b3df |
SCIP notification number (Bulgaria) | de86b3da-062f-4b7e-b2f2-5b23f5068607 | SCIP notification number (Czech Republic) | 49ff89f0-2b47-4f83-8824-1ac9db8f4836 |
SCIP notification number (Denmark) | 903fdf46-8f38-410f-9174-eeecc3612f76 | SCIP notification number (Finland) | 8cbd4864-c9e3-40d0-b93d-591301db8147 |
SCIP notification number (France) | 401b49fc-37a5-4a66-8dd8-79c305585cf4 | SCIP notification number (Germany) | a2164061-b8b2-4d06-92cf-86c39e4d4c75 |
SCIP notification number (Hungary) | 67323043-e6fa-4d9c-b703-f593c44e5603 | SCIP notification number (Italy) | f2248b1f-b789-494a-9ab6-d40fc3bc1083 |
SCIP notification number (Netherlands) | 8e795a5f-7c56-4052-92b4-1fc8807a92da | SCIP notification number (Poland) | 2b253eaa-38c2-4552-a792-ad9a944935ec |
SCIP notification number (Romania) | ebf01af9-e55a-4467-b2bb-b091fc32279c | SCIP notification number (Sweden) | 55d4fcb6-4aae-4648-ad99-986e0e11bcba |
Specifications may be subject to change without notice
