Product Model

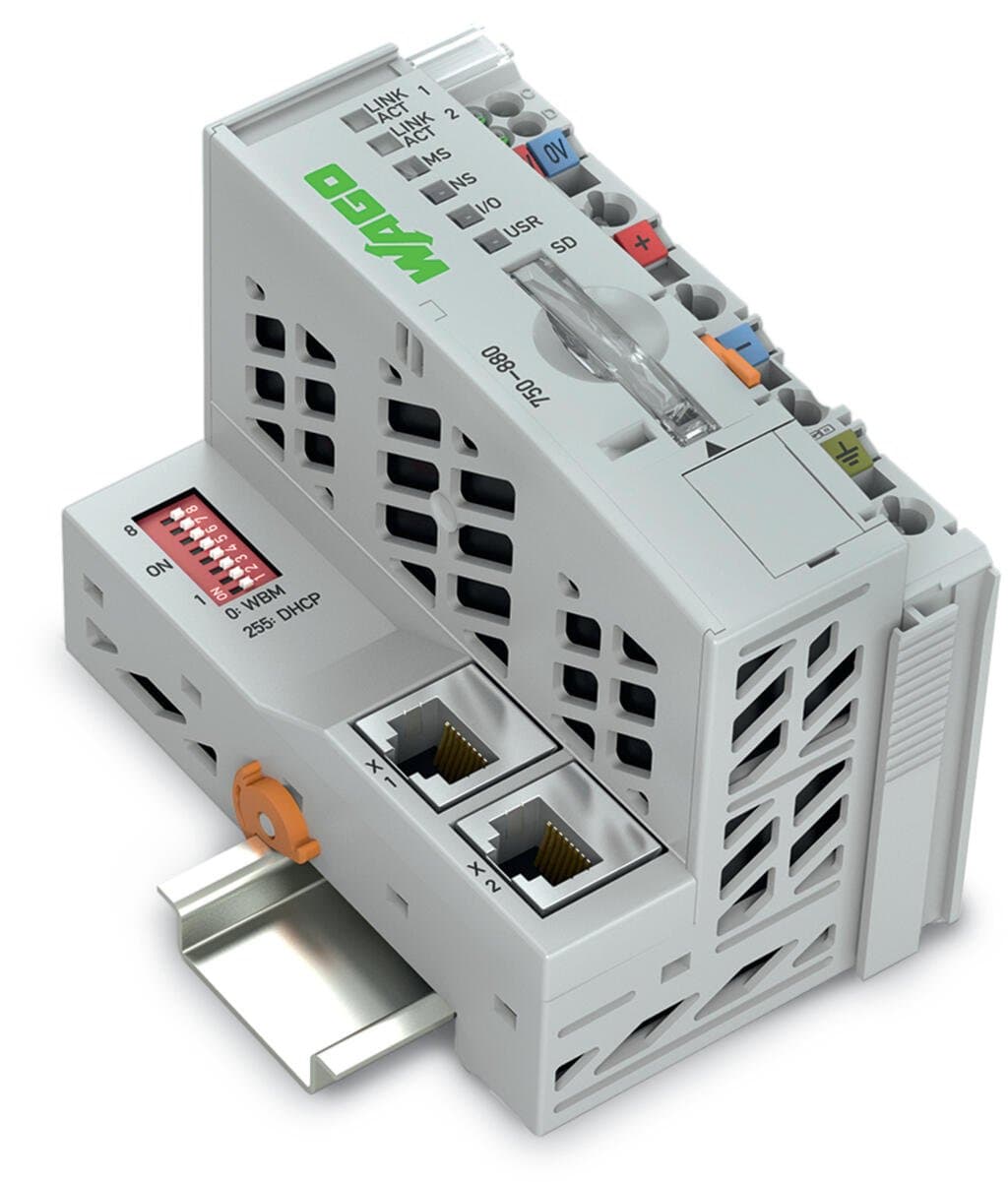

750-880
Selling Points
- 1Supports 10/100 Mbit/s Ethernet and Modbus (TCP, UDP) protocols for seamless data transfer.
- 2Withstands shock resistance of 15g per IEC 60068-2-27 and vibration resistance of 4g per IEC 60068-2-6.
- 3Equipped with a 32-bit CPU and 1024 KB data memory for efficient processing and storage.
- 4Includes 2 x RJ-45 connectors for Ethernet and 6 x CAGE CLAMP connections for field supply.
- 5Meets IP20 protection standards and operates within a temperature range of 0 to +55°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | EtherNet/IPTM | ETHERNET protocols | HTTP |
Visualization | Web-Visu | CPU | 32 bits |
Programming languages per IEC 61131-3 | Instruction List (IL) | Programming environment | WAGO-I/O-PROV2.3 (based on CODESYS V2.3) |
Configuration options | WAGO-I/O-CHECK | Transmission rate | 10/100?Mbit/s |
Transmission medium (communication/fieldbus) | Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length | Transmission performance | Class D per EN 50173 |
Program memory | 1024?KB | Data memory | 1024?KB |
Non-volatile software memory | 32Kbytes | Type of memory card | SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO's memory card) |
Memory card slot | Push-push mechanism; Cover lid (sealable) | Number of modules per node (max.) | 250 |
Number of modules without a bus extension (max.) | 64 | Input and output process image (fieldbus) max. | 1020?words/1020?words |
Indicators | LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply | Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) |
Input current (typ.) at nominal load (24?V) | 500mA | Power supply efficiency (typ.) at nominal load (24 V) | 90% |
Current consumption (5 V system supply) | 450mA | Total current (system supply) | 1,700mA |
Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts | Current carrying capacity (power jumper contacts) | 10A |
Number of outgoing power jumper contacts | 3 | Isolation | 500?V system/field |
Connection technology: communication/fieldbus | EtherNet/IPTM: 2 x RJ-45; Modbus (TCP, UDP): 2 x RJ-45 | Connection technology: system supply | 2 x CAGE CLAMP? |
Connection technology: field supply | 6 x CAGE CLAMP? | Connection type 1 | System/field supply |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 61.5?mm?/ 2.421?inches | Height | 71.9?mm?/ 2.831?inches |
Depth | 100?mm?/ 3.937?inches | Weight | 161.9g |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of ?20 ?to +60 °C (except for wind-driven precipitation, water and ice formation) |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Mounting type | DIN-35 rail |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Fire load | 3.69MJ |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-07 |
eCl@ss 9.0 | 27-24-26-07 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
GTIN | 4050821134053 | End of Sale | 2019-12-15 |
End of Production | 2019-12-20 | End of Delivery | 2019-12-30 |
End of Service and Repair | 2021-12-14 | CAS-No. | 12060-00-3 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 2cb1e1f5-30a4-4aa4-b43e-0256427d9dea |
SCIP notification number (Belgium) | adb3edf3-e63f-439b-a86e-14ac100891fa | SCIP notification number (Bulgaria) | 7548571d-d7ec-43a7-a1e9-0574080601c4 |
SCIP notification number (Czech Republic) | baef3f7e-59b5-4602-b179-bc293a631565 | SCIP notification number (Denmark) | 567c099d-53bc-42da-8226-b0b0b055b7e3 |
SCIP notification number (Finland) | 09b78942-e512-4ac1-9753-cc2dc901bdb4 | SCIP notification number (France) | 4c77de68-e6ea-4667-aa62-3625a6c15773 |
SCIP notification number (Germany) | 05a7d98c-5518-4d9f-a732-d836005b0a0c | SCIP notification number (Hungary) | f3a86e0a-c4d3-4c8a-8dfd-38289752a35e |
SCIP notification number (Italy) | 081b813e-7391-41eb-9ae6-e2155a2b6791 | SCIP notification number (Netherlands) | 554efbeb-f756-43e6-bd3e-4202b0e43cdf |
SCIP notification number (Poland) | 5f59abf8-35b6-48f9-9717-23e1e0fefcc4 | SCIP notification number (Romania) | cd5e7358-0e1d-4be8-afba-30b84534e1b7 |
SCIP notification number (Sweden) | 15f0b96f-565c-499d-9e60-8392e93322dc |
Specifications may be subject to change without notice
