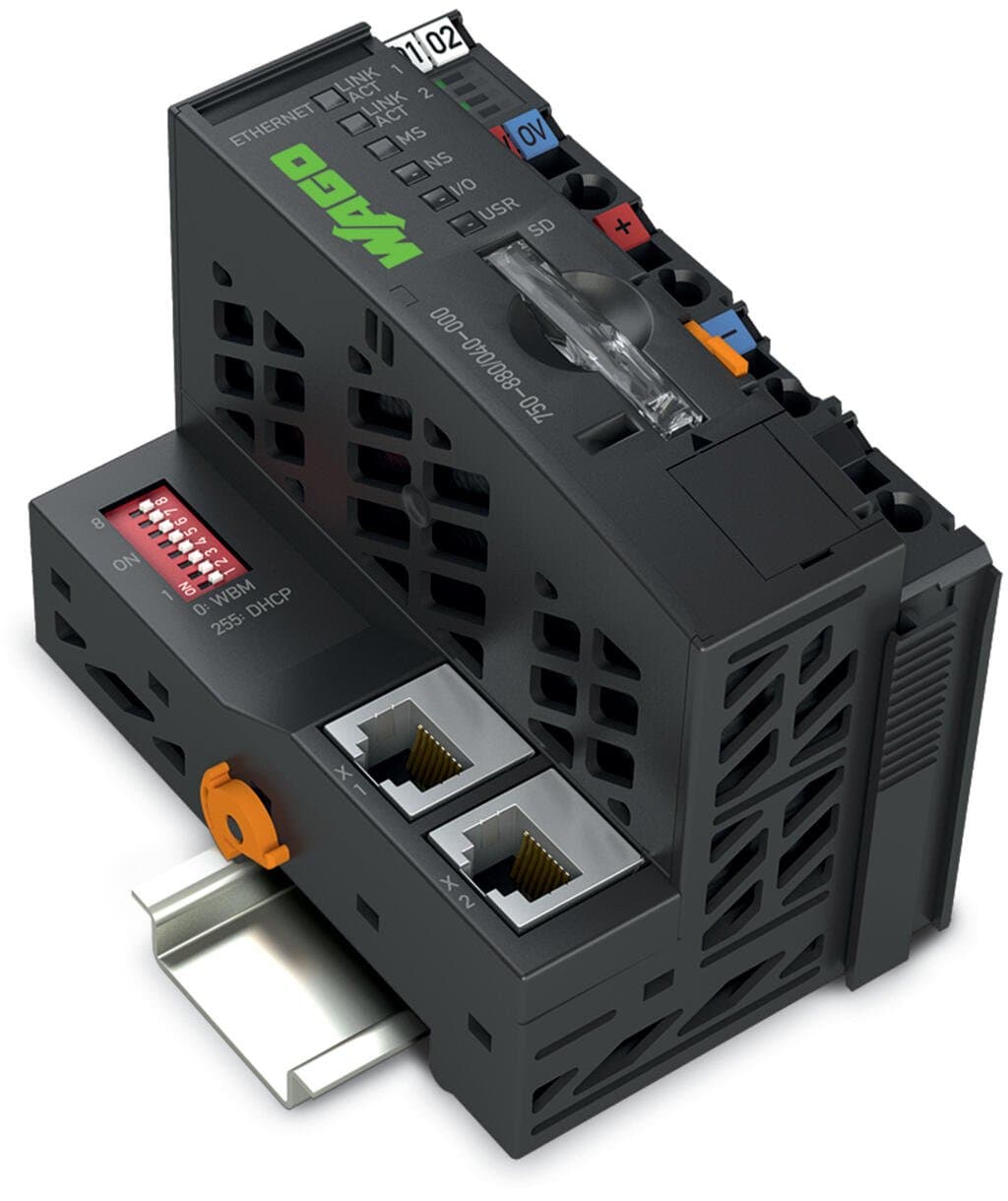

Product Model
750-880/040-000
Selling Points
- 1Third Generation Technology: Latest advancements in control systems.
- 2SD Card Slot: Convenient storage for data and configurations.
- 3Extreme Performance: Designed for demanding industrial environments.
- 42-Year Warranty: Comprehensive protection for your investment.
- 5High Reliability: Built to withstand harsh industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | EtherNet/IPTM | ETHERNET protocols | HTTP |
Visualization | Web-Visu | CPU | 32 bits |
Programming languages per IEC 61131-3 | Instruction List (IL) | Programming environment | WAGO-I/O-PROV2.3 (based on CODESYS V2.3) |
Configuration options | WAGO-I/O-CHECK | Transmission rate | 10/100?Mbit/s |
Transmission medium (communication/fieldbus) | Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length | Transmission performance | Class D per EN 50173 |
Program memory | 1024?KB | Data memory | 1024?KB |
Non-volatile software memory | 32Kbytes | Type of memory card | SD card |
Memory card slot | Push-push mechanism; Cover lid (sealable) | Number of modules per node (max.) | 64 |
Input and output process image (fieldbus) max. | 1020?words/1020?words | Indicators | LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply |
Derating | Total current (system supply):1700°mA (ambient temperature (operation) < 60°°C);1500 mA (ambient temperature (operation): 60 … 70 °C);Derating (supply voltage):Ambient temperature under laboratory conditions: (?25 … +30 %);for ?40 … +55 °C: 24 V (?25 … +20 %);for +55 … +70 °C: 24 V (?25 … +10 %);Lower limit in all temperature ranges: ?27.5 % (including 15 % residual ripple) | Supply voltage (system) | 24?VDC;?via pluggable connector (CAGE CLAMP? connection); Derating must be observed! |
Input current (typ.) at nominal load (24?V) | 500mA | Power supply efficiency (typ.) at nominal load (24 V) | 90% |
Current consumption (5 V system supply) | 450mA | Total current (system supply) | 1,700mA |
Supply voltage (field) | 24?VDC;?Power supply via pluggable connector (CAGE CLAMP? connection); Transmission via power jumper contacts; Derating must be observed! | Current carrying capacity (power jumper contacts) | 10A |
Number of outgoing power jumper contacts | 2 | Ratings per | IEC/EN 60664-1 |
Rated surge voltage | 1?kV | Connection technology: communication/fieldbus | EtherNet/IPTM: 2 x RJ-45; Modbus (TCP, UDP): 2 x RJ-45 |
Connection technology: system supply | 2 x CAGE CLAMP? | Connection technology: field supply | 4 x CAGE CLAMP? |
Connection type 1 | System/field supply | Solid conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG |
Fine-stranded conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Connection technology: device configuration | 1 x Male connector; 4-pole | Width | 61.5?mm?/ 2.421?inches |
Height | 100?mm?/ 3.937?inches | Depth | 71.9?mm?/ 2.831?inches |
Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches | Weight | 167g |
Color | dark gray | Housing material | Polycarbonate; polyamide 6.6 |
Conformity marking | CE | Ambient temperature (operation) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom | Mounting type | DIN-35 rail |
Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 | Shock resistance | per IEC 60068-2-27 (15g/11?ms/half-sine/1,000 shocks; 25g/6?ms/1,000 shocks), EN 50155, EN 61373 |
EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 | EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Fire load | 2.457MJ |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-07 |
eCl@ss 9.0 | 27-24-26-07 | ETIM 9.0 | EC000236 |
ETIM 8.0 | EC000236 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821460121 |
Customs tariff number | 8537109160 | End of Sale | 2022-01-31 |
End of Production | 2023-02-28 | End of Delivery | 2023-03-31 |
End of Service and Repair | 2026-12-31 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Bulgaria) | a0b20404-0427-468d-9204-5fb55802fea6 |
SCIP notification number (Czech Republic) | 1247cb98-37e9-4db3-8203-b25a45d36a8b |
Specifications may be subject to change without notice
