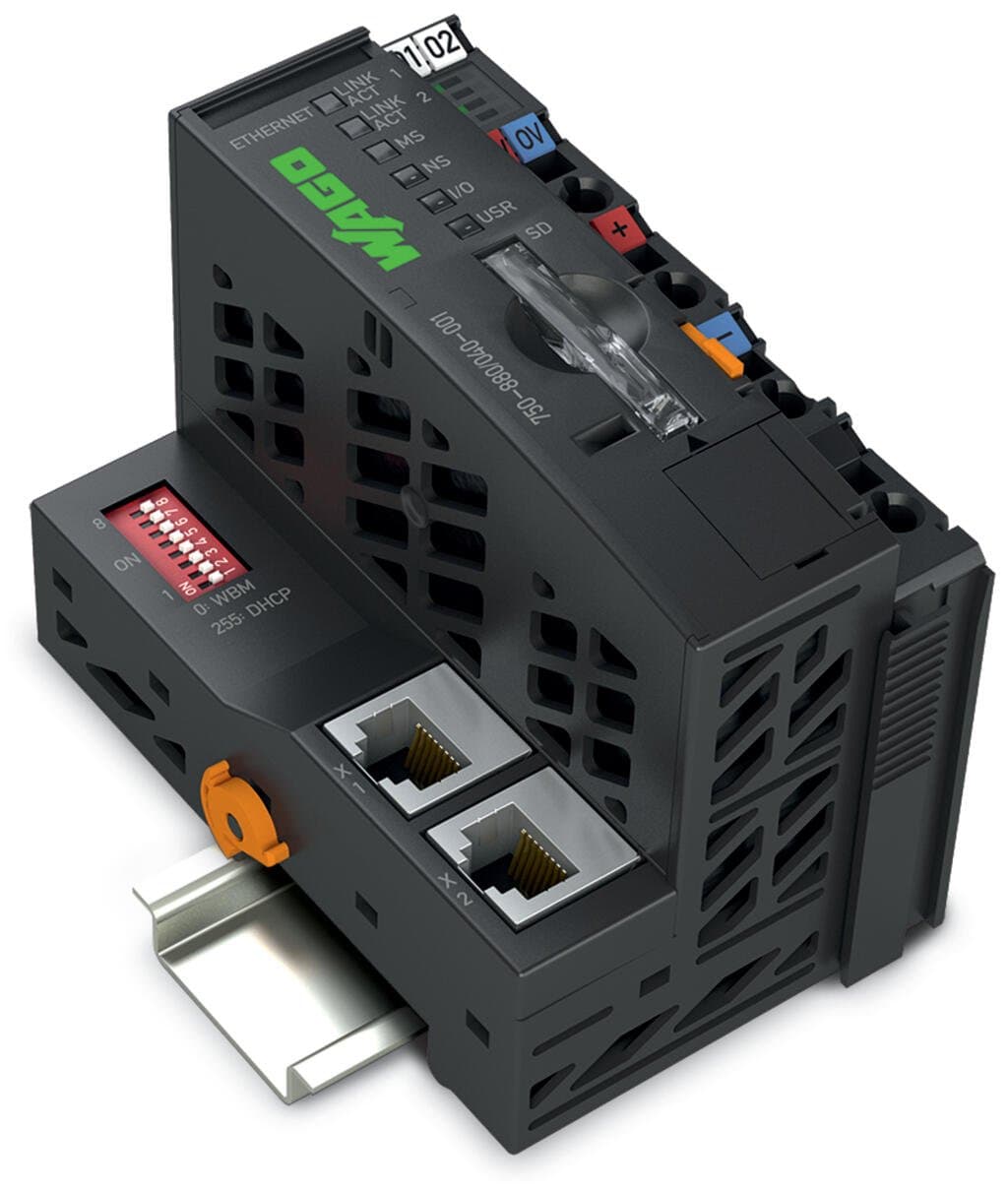

Product Model
750-880/040-001
Selling Points
- 1The 750-880/040-001 supports IEC 60870-5-101/-103-104, IEC 61850-7, and IEC 61400-25 for seamless integration in telecontrol applications.
- 2Equipped with two Ethernet interfaces and an integrated switch, this controller ensures reliable and efficient data transfer at 10/100 Mbit/s.
- 3Compatible with the WAGO-I/O-SYSTEM, it can be used as a programmable controller within Ethernet networks, supporting digital, analog, and specialty modules.
- 4Supports MODBUS/TCP and EtherNet/IP for industrial environments, as well as standard Ethernet protocols like HTTP, BootP, DHCP, DNS, SNTP, SNMP, and FTP.
- 5Designed to operate in temperatures from -40°C to 70°C and withstand relative humidity up to 95%, making it ideal for harsh industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Communications | EtherNet/IPTM | ETHERNET protocols | HTTP |
Telecontrol protocols | IEC 60870-5-101/-103/-104 | Visualization | Web-Visu |
CPU | 32 bits | Programming languages per IEC 61131-3 | Instruction List (IL) |
Programming environment | WAGO-I/O-PROV2.3 (based on CODESYS V2.3) | Configuration options | WAGO-I/O-CHECK |
Transmission rate | 10/100?Mbit/s | Transmission medium (communication/fieldbus) | Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length |
Transmission performance | Class D per EN 50173 | Program memory | 1024?KB |
Data memory | 1024?KB | Non-volatile software memory | 32Kbytes |
Type of memory card | SD card | Memory card slot | Push-push mechanism; Cover lid (sealable) |
Number of modules per node (max.) | 64 | Input and output process image (fieldbus) max. | 1020?words/1020?words |
Indicators | LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply | Derating | Total current (system supply):1700°mA (ambient temperature (operation) < 60°°C);1500 mA (ambient temperature (operation): 60 … 70 °C);Derating (supply voltage):Ambient temperature under laboratory conditions: (?25 … +30 %);for ?40 … +55 °C: 24 V (?25 … +20 %);for +55 … +70 °C: 24 V (?25 … +10 %);Lower limit in all temperature ranges: ?27.5 % (including 15 % residual ripple) |
Supply voltage (system) | 24?VDC;?via pluggable connector (CAGE CLAMP? connection); Derating must be observed! | Input current (typ.) at nominal load (24?V) | 500mA |
Power supply efficiency (typ.) at nominal load (24 V) | 90% | Current consumption (5 V system supply) | 450mA |
Total current (system supply) | 1,700mA | Supply voltage (field) | 24?VDC;?Power supply via pluggable connector (CAGE CLAMP? connection); Transmission via power jumper contacts; Derating must be observed! |
Current carrying capacity (power jumper contacts) | 10A | Number of outgoing power jumper contacts | 2 |
Ratings per | IEC/EN 60664-1 | Rated surge voltage | 1?kV |
Connection technology: communication/fieldbus | EtherNet/IPTM: 2 x RJ-45; Modbus (TCP, UDP): 2 x RJ-45; Telecontrol protocol IEC 60870-5-101/-103: 1 x Serial interface via I/O module; Telecontrol protocol IEC 60870-5-104: 1 x RJ-45; Telecontrol protocol IEC 61850: 1 x RJ-45; Telecontrol protocol DNP3: 1 x RJ-45 | Connection technology: system supply | 2 x CAGE CLAMP? |
Connection technology: field supply | 4 x CAGE CLAMP? | Connection type 1 | System/field supply |
Solid conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
Width | 61.5?mm?/ 2.421?inches | Height | 100?mm?/ 3.937?inches |
Depth | 71.9?mm?/ 2.831?inches | Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches |
Weight | 154.5g | Color | dark gray |
Housing material | Polycarbonate; polyamide 6.6 | Conformity marking | CE |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) | Relative humidity (without condensation) | 95% |
Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) | Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
Mounting type | DIN-35 rail | Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 |
Shock resistance | per IEC 60068-2-27 (15g/11?ms/half-sine/1,000 shocks; 25g/6?ms/1,000 shocks), EN 50155, EN 61373 | EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 |
EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Fire load | 2.457MJ | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-07 | eCl@ss 9.0 | 27-24-26-07 |
ETIM 9.0 | EC000236 | ETIM 8.0 | EC000236 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821827184 | Customs tariff number | 8537109160 |
End of Sale | 2022-01-31 | End of Production | 2023-02-28 |
End of Delivery | 2023-03-31 | End of Service and Repair | 2026-12-31 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Bulgaria) | a1aaa8f0-0659-4363-b6a0-69c432b664a8 | SCIP notification number (Czech Republic) | 840c499b-0fd2-42ac-806f-2347a8554f96 |
Specifications may be subject to change without notice
