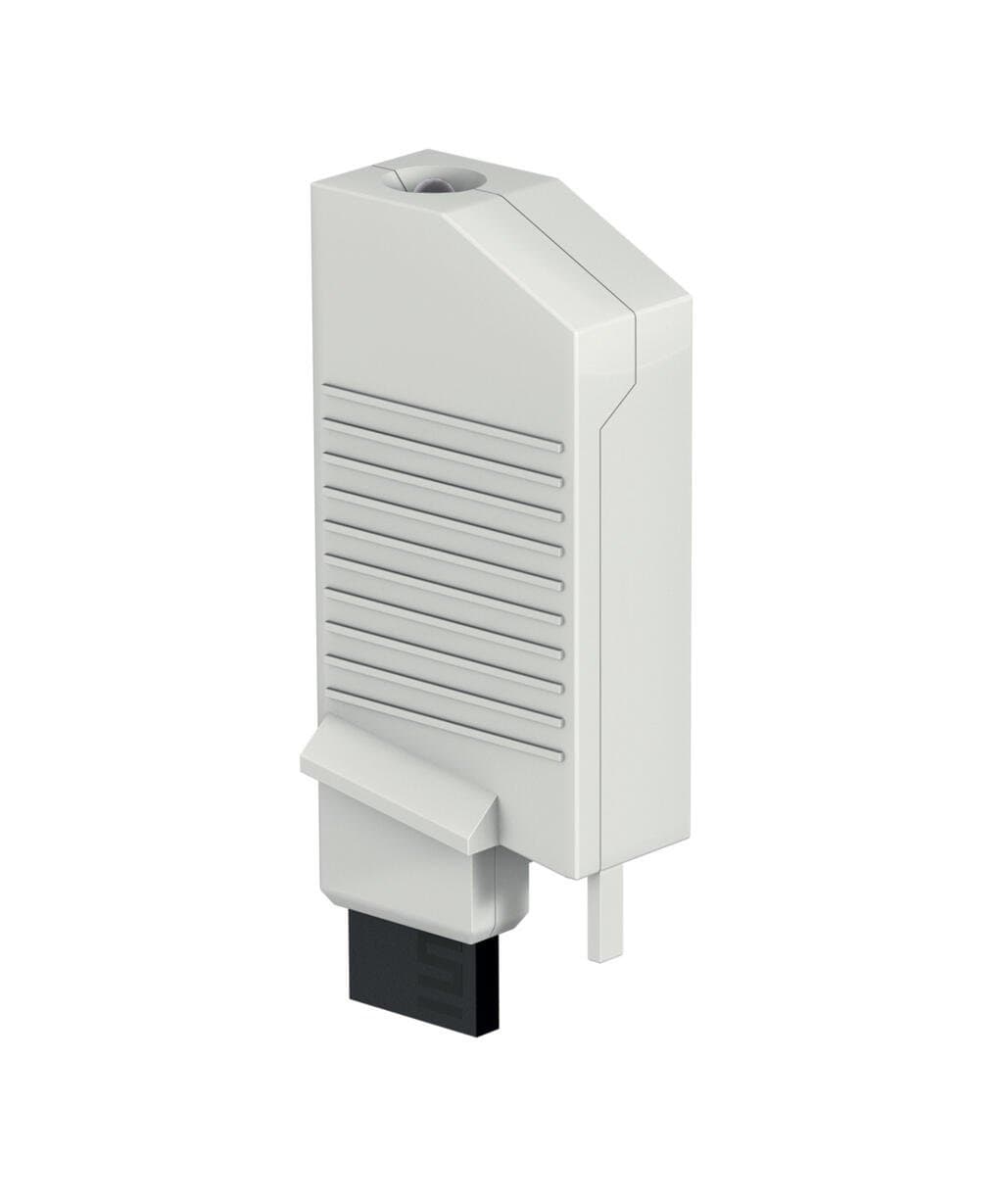

Product Model
750-921
Selling Points
- 1Seamless Fieldbus Connectivity: Wirelessly connects notebook computers with Bluetooth functionality to service interfaces of buscouplers/controllers.
- 2Secure Authentication: Supports PIN code or configurable access list for secure data transmission.
- 3Robust Coexistence Properties: Ensures trouble-free operation in the presence of other radio systems using Frequency Hopping Spread Spectrum (FHSS) and Adaptive Frequency Hopping (AFH).
- 4Integrated Antenna: Provides a compact design with an integrated antenna for point-to-point connections.
- 5IP20 Protection Rating: Offers protection against solid objects and dust, suitable for industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The maximum range in the field decreases with use in buildings and changes depending on the building materials used and the spatial geometry. Therefore, range specifications within buildings can only represent a typical value that can normally be achieved. More detailed information is available in the manual. | Device specification | Master or Slave |
Security encryption | 128-bit encryption | Radio technology | Bluetooth?2.1 |
Frequency band | ISM band, 2402 … 2483 MHz | Security authentication | PIN code or configurable access list |
Supported profiles | Serial Port Profile (SPP) | Communication type | Peer-to-peer connection |
Coexistence | Frequency Hopping Spread Spectrum (FHSS) | Transmission range | 20?m in open space (Class?2) |
Antenna | integrated | Receiver sensitivity | -82dBm |
Configuration options | AT commands (e.g., via HyperTerminal) | Current consumption (5 V system supply) | 60mA |
Indicators | Operating mode | Width | 15?mm?/ 0.591?inches |
Height | 50?mm?/ 1.969?inches | Depth | 19?mm?/ 0.748?inches |
Color | light gray | Weight | 16.6g |
Conformity marking | CE | Ambient temperature (operation) | -20 … +60 °C |
Protection type | IP20 | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
ETIM 9.0 | EC000817 | ETIM 8.0 | EC000817 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918368100 | Customs tariff number | 8473309100 |
End of Sale | 2024-02-01 | End of Production | 2024-04-01 |
End of Delivery | 2024-08-01 | End of Service and Repair | 2026-08-01 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
