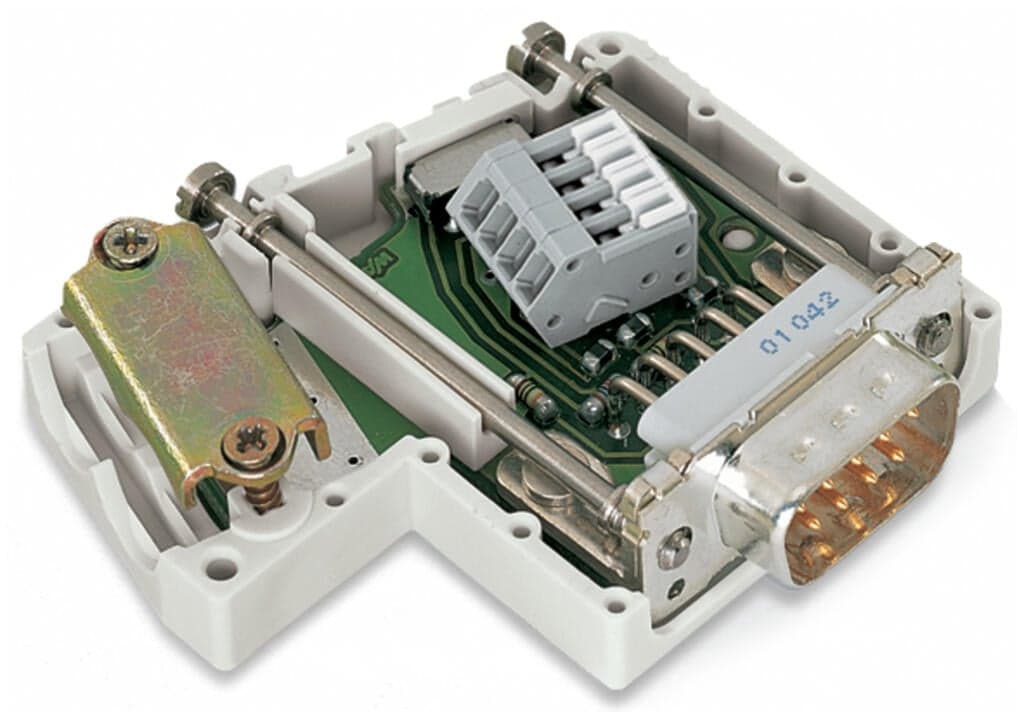

Product Model
750-960
Selling Points
- 1Fast and maintenance-free CAGE CLAMP connection.
- 29-position D-Sub plug with nylon 6.6 shell.
- 3Externally operable switch for network terminating resistor.
- 4Robust performance and flexibility in industrial automation.
- 5Compliant with ROHS regulations for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | D-sub 9 plug | Number of poles | 9 |
Communication/fieldbus | PROFIBUS | Transmission rate | 12 Mbit/s ( (per PROFIBUS specification)) |
Supply voltage | 4.75 … 5.25?VDC | Input current | 5mA |
Connection type 1 | CAGE CLAMP?terminal strip with locking slide (218 Series) | Solid conductor | 0.08 … 0.5?mm2?/ 28 … 20?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 54?mm?/ 2.126?inches |
Height | 16?mm?/ 0.63?inches | Depth | 45?mm?/ 1.772?inches |
Connectable sheathed cable diameter | 4.5 … 9.5?mm | Cable glands (number) | 2 |
Housing material | PA66-105-V2 | Weight | 33.4g |
Color | light gray | Ambient temperature (operation) | 0 … +60 °C |
Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Fire load | 0.623MJ | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | bag | Country of origin | DE |
GTIN | 4045454320157 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
