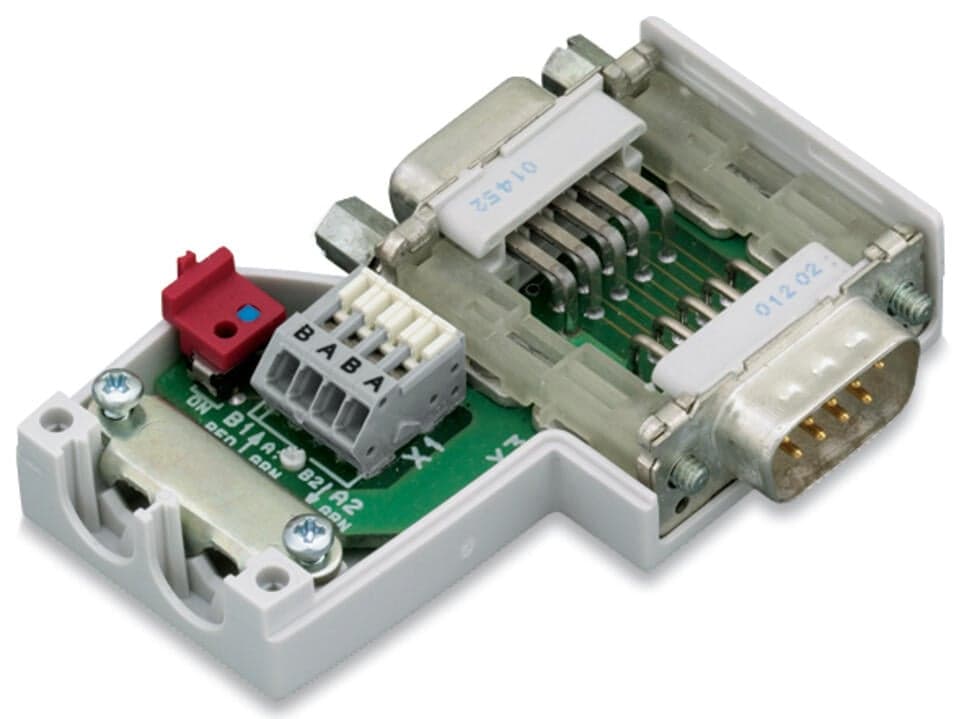

Product Model
750-970
Selling Points
- 1Fast and maintenance-free CAGE CLAMP connection.
- 2Externally operable switch to activate/deactivate the network terminating resistor.
- 3Two horizontal cable entries for both input and output.
- 4Compatible with PROFIBUS specifications at 12 Mbit/s baud rate.
- 5Durable construction with IP20 protection and light gray color.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | D-sub 9 plug | Communication/fieldbus | PROFIBUS |
Transmission rate | 12 Mbit/s ( (per PROFIBUS specification)) | Connection type 1 | CAGE CLAMP?terminal strip with locking slide (218 Series) |
Solid conductor | 0.08 … 0.5?mm2?/ 28 … 20?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Depth | 65?mm?/ 2.56?inches | Connectable sheathed cable diameter | 4.5 … 8?mm |
Weight | 42g | Color | light gray |
Ambient temperature (operation) | 0 … +60 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Relative humidity (without condensation) | 95% |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-92 |
eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC002584 |
ETIM 8.0 | EC002584 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454345075 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
