Product Model

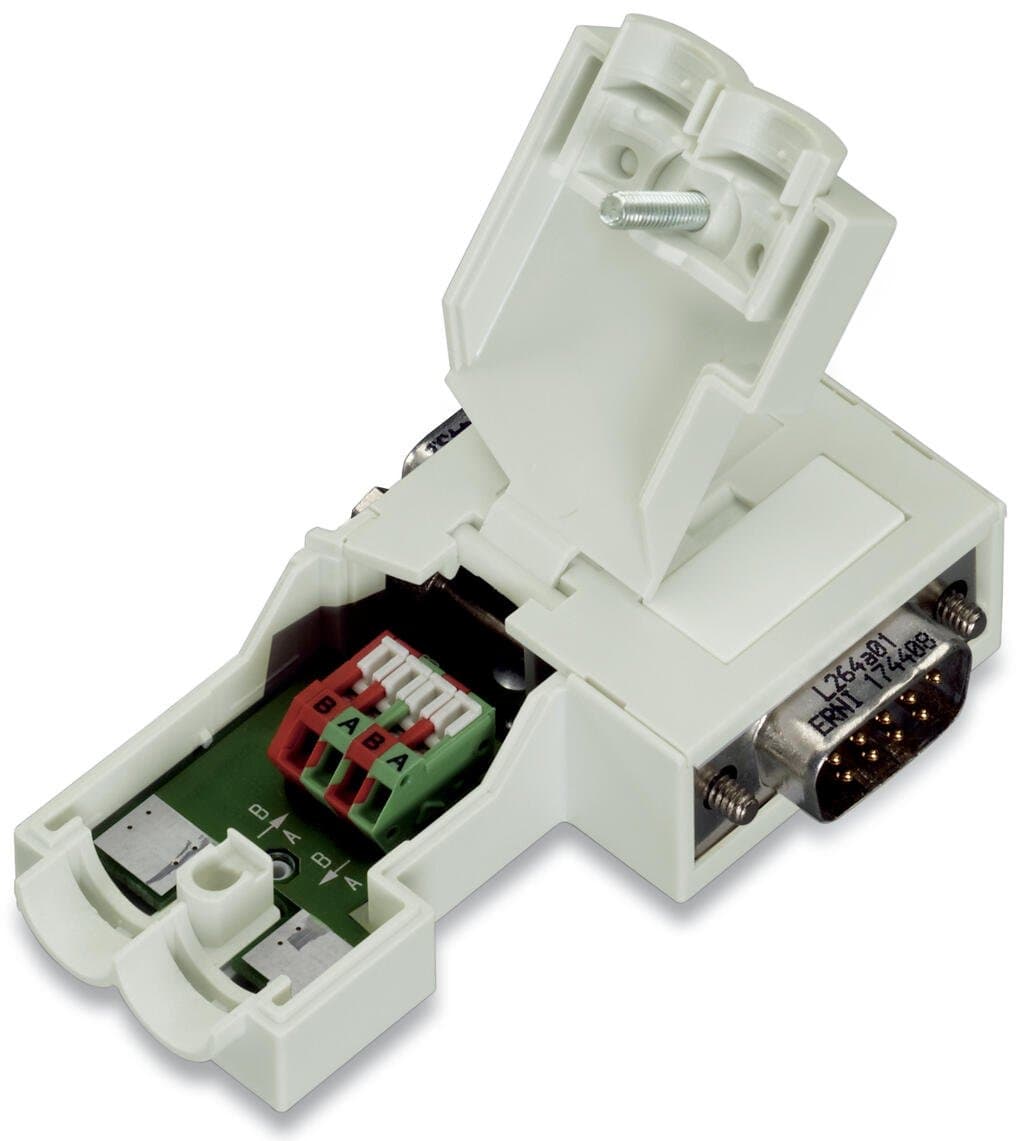

750-972
Selling Points
- 1Seamless PROFIBUS Communication: Supports 12 Mbit/s baud rate for efficient data transfer.
- 2Compact Design: Ideal for connecting to S7 PLCs with a light gray color and D-sub 9 plug.
- 3Robust Performance: Fast and maintenance-free CAGE CLAMP connection ensures reliable operation.
- 4Easy Installation: No losable parts and externally operable switch for network termination resistor activation.
- 5Versatile Automation Module: Compatible with a wide range of devices, enhancing automation processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | D-sub 9 plug | Number of poles | 9 |
Communication/fieldbus | PROFIBUS | Transmission rate | 12 Mbit/s ( (per PROFIBUS specification)) |
Supply voltage | 4.75 … 5.25?VDC | Input current | 5mA |
Connection type 1 | CAGE CLAMP?terminal strip with locking slide (218 Series) | Solid conductor | 0.08 … 0.5?mm2?/ 28 … 20?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 44.2?mm?/ 1.741?inches |
Height | 16.2?mm?/ 0.638?inches | Depth | 72.8?mm?/ 2.866?inches |
Connectable sheathed cable diameter | 8.5?mm | Cable glands (number) | 2 |
Housing material | PC-V0 | Weight | 30g |
Color | light gray | Ambient temperature (operation) | 0 … +60 °C |
Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
Relative humidity (without condensation) | 95% | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454633882 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
