Product Model
750-975
Selling Points

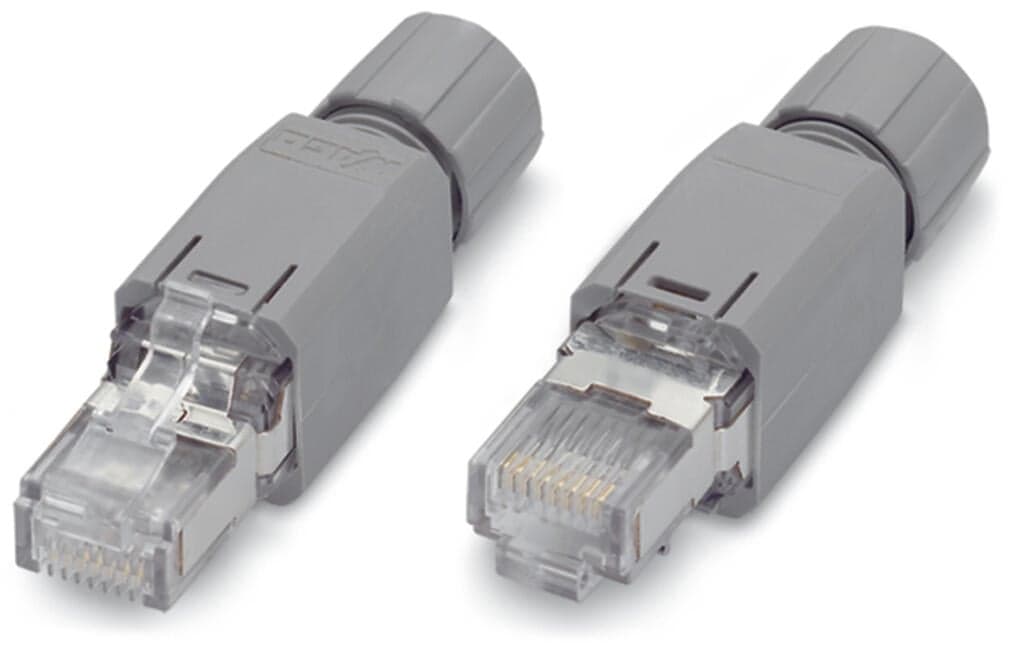

- 1The WAGO 750-975 Ethernet RJ-45 connector is designed for easy field assembly without tools, ensuring a compact and space-efficient solution.
- 2Meets all required standards including IEC 60603-7, ISO/IEC 11801: 2002, and EN 50173: 2002, ensuring reliable performance in industrial settings.
- 3Features insulation resistance greater than 500 MΩ, ensuring secure connections and long-lasting performance.
- 4Made from polycarbonate (UL-94-V0) with a gold-plated contact surface, providing excellent dielectric strength and durability.
- 5Supports large conductor cross sections and satisfies Category 5e standards, making it suitable for various industrial, office, and building wiring applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | RJ-45 plug | Number of poles | 8 |
Cable connection direction to mating direction | 0° | Communication/fieldbus | ETHERNET |
Code | TIA-568A | Transmission rate | 1000 Mbit/s |
Insulation resistance | (100 V) > 1 GΩ | Contact resistance | (Wire – IDC) < 1 mΩ; (Strand – IDC) < 5 mΩ |
Connection type 1 | IDC contact | Solid conductor | 0.13 … 0.24?mm2?/ 26/1 … 23/1?AWG |
Stranded conductor 2 | 0.14 … 0.36?mm2?/ 26/7 … 22/7?AWG | Width | 14?mm |
Height | 14?mm | Depth | 59?mm |
Shield | Brass (CuZn); hot-dip tinned 3 μm; Shield contact: large surface >180° | Connection requirement (permissible cable type) | Cat. 5e |
Connectable sheathed cable diameter | 4.5 … 8?mm | Housing material | Plastic |
Contact material | Bronze (CuSn6) | Contact plating | > 1.2 μm gold over 1.2 μm nickel |
Mating cycles (max.) | 1,000 | Weight | 10g |
Color | light gray | Ambient temperature (operation) | -20 … +70 °C |
Ambient temperature (storage) | -40 … +70 °C | Protection type | IP20 |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Standards/specifications | Basisnorm: IEC 60603-7 RJ-45 Category 5 | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4045454482480 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
