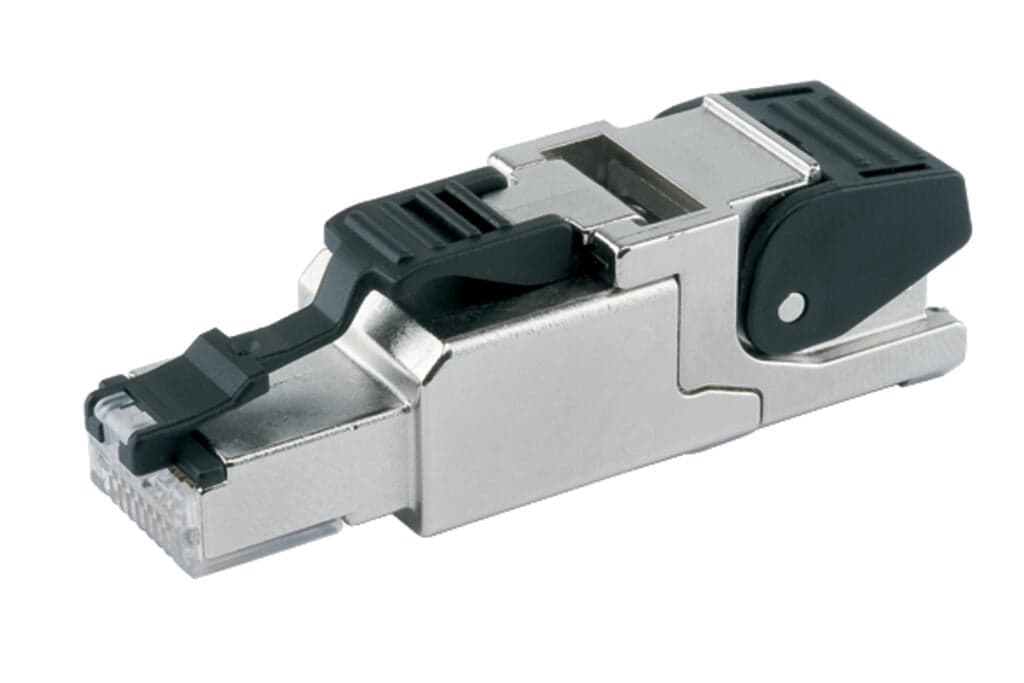

Product Model
750-977/000-012
Selling Points
- 1High-speed Ethernet connectivity: Supports Cat.6a standards for fast data transfer.
- 2Durable construction: Made from zinc die-casting for robustness and longevity.
- 3Easy installation: Compatible with 0.21-0.32mm² solid conductors and 0.11-0.36mm² stranded conductors.
- 4Reliable protection: IP20 rated for reliable performance in various environments.
- 5Compliant with industry standards: Meets IEC60603-7-51, ISO/IEC 11801, IEEE 802.3an, EIA/TIA 568-C.2, DIN EN 50173-1, UL 1863, and UL 2043.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | RJ-45 plug | Number of poles | 8 |
Cable connection direction to mating direction | 0° | Communication/fieldbus | ETHERNET |
Code | TIA-568B | Transmission rate | 10000 Mbit/s |
Connection type 1 | IDC contact | Solid conductor | 0.21 … 0.32?mm2?/ 24/1 … 22/1?AWG |
Stranded conductor 2 | 0.11 … 0.36?mm2?/ 27/7 … 22/7?AWG | Width | 13.8?mm |
Height | 16.2?mm | Depth | 49?mm |
Connection requirement (permissible cable type) | Cat. 6 A | Connectable sheathed cable diameter | 5.5 … 9?mm |
Housing material | Zinc die casting | Weight | 18g |
Ambient temperature (operation) | -40 … +85 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Relative humidity (without condensation) | 95% |
Standards/specifications | IEC60603-7-51, ISO/IEC 11801, IEEE 802.3an | eCl@ss 10.0 | 27-24-26-92 |
eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC001121 |
ETIM 8.0 | EC001121 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | TW | GTIN | 4055143586191 |
Customs tariff number | 8535908040 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
