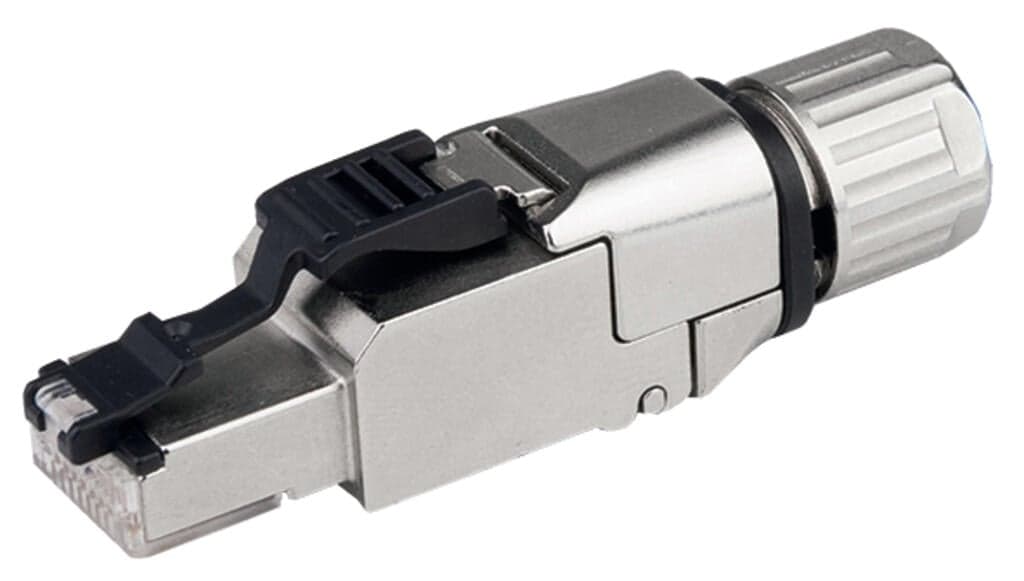

Product Model
750-978/000-013
Selling Points
- 1High-Quality Networking Solution: Designed for reliable and efficient industrial networking.
- 2Cat 6A Compatibility: Supports Category 6A Ethernet standards for high-speed data transmission.
- 3Strain Relief: Features strain relief to ensure durability and longevity.
- 4IP20 Protection: Offers protection against solid particles and water spray (IP20 rating).
- 5RJ-45 Plug: Compatible with RJ-45 connectors for easy integration into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | RJ-45 plug | Number of poles | 8 |
Cable connection direction to mating direction | 0° | Communication/fieldbus | PROFINET |
Code | PROFINET | Transmission rate | 100 Mbit/s |
Connection type 1 | IDC contact | Solid conductor | 0.21 … 0.32?mm2?/ 24/1 … 22/1?AWG |
Stranded conductor 2 | 0.11 … 0.36?mm2?/ 27/7 … 22/7?AWG | Width | 13.9?mm |
Height | 16.3?mm | Depth | 56.6?mm |
Connection requirement (permissible cable type) | Cat. 6 A | Connectable sheathed cable diameter | 5.5 … 10?mm |
Housing material | Zinc die casting | Weight | 22g |
Ambient temperature (operation) | -40 … +85 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Relative humidity (without condensation) | 95% |
Standards/specifications | IEC60603-7-51, ISO/IEC 11801, IEEE 802.3an | eCl@ss 10.0 | 27-24-26-92 |
eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC001121 |
ETIM 8.0 | EC001121 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | TW | GTIN | 4055143586252 |
Customs tariff number | 8535908040 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
