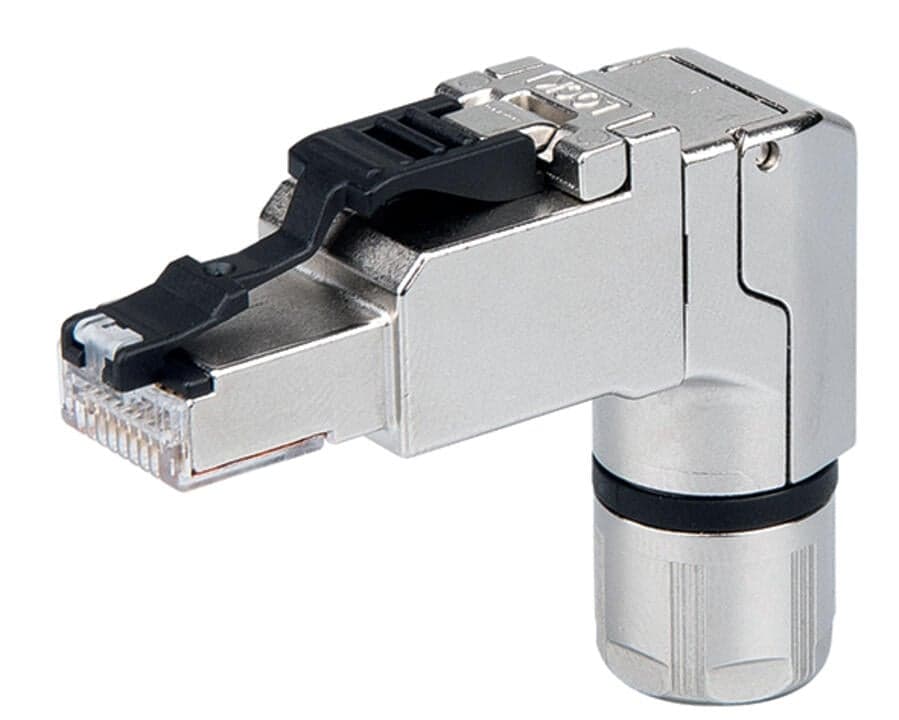

Product Model
750-979/000-012
Selling Points
- 1High-Quality Ethernet Connectivity: Ensures reliable and fast data transfer with Cat. 6A standards.
- 2RJ-45 Connector: Compatible with T568B wiring code for easy installation.
- 3Strain Relief Plate: Protects cables from damage and ensures long-lasting performance.
- 4IP20 Rated: Provides protection against solid objects and dust, ensuring durability.
- 5Angled Design: Facilitates easy cable management in tight spaces with a 90° angle.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | RJ-45 plug | Number of poles | 8 |
Cable connection direction to mating direction | 90° | Cable connection direction (note) | selectable position |
Communication/fieldbus | ETHERNET | Code | TIA-568B |
Transmission rate | 10000 Mbit/s | Connection type 1 | IDC contact |
Solid conductor | 0.21 … 0.32?mm2?/ 24/1 … 22/1?AWG | Stranded conductor 2 | 0.11 … 0.36?mm2?/ 27/7 … 22/7?AWG |
Width | 13.9?mm | Height | 41?mm |
Depth | 45.7?mm | Connection requirement (permissible cable type) | Cat. 6 A |
Connectable sheathed cable diameter | 5.5 … 10?mm | Housing material | Zinc die casting |
Weight | 26g | Ambient temperature (operation) | -40 … +85 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Relative humidity (without condensation) | 95% | Standards/specifications | IEC60603-7-51, ISO/IEC 11801, IEEE 802.3an |
eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
ETIM 9.0 | EC001121 | ETIM 8.0 | EC001121 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | bag | Country of origin | TW |
GTIN | 4055143586290 | Customs tariff number | 8535908040 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
