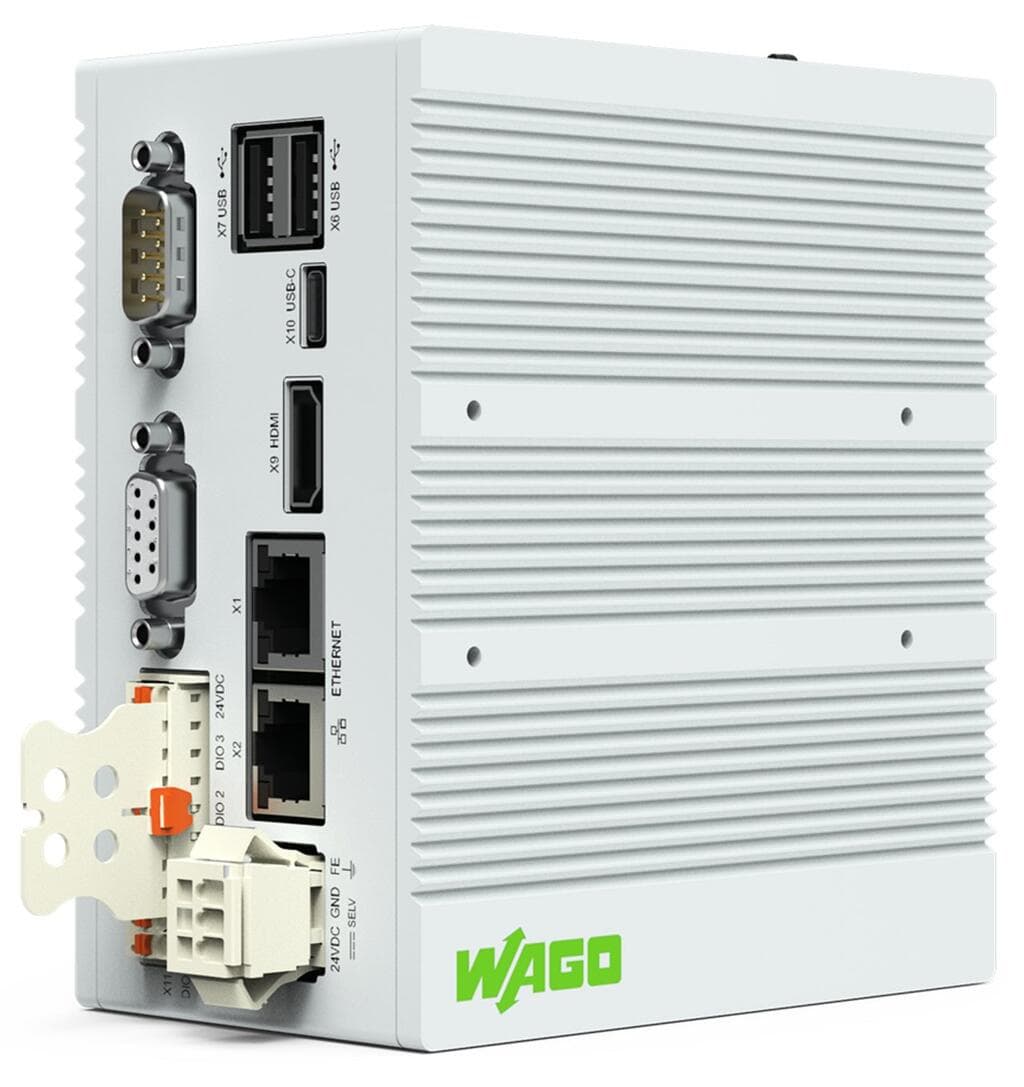

wago 752-8303/8000-002

Selling Points

  • 1Quad-Core ARM Cortex A9 Processor: High-performance computing for efficient data processing.
  • 2Real-Time Linux Operating System: Ensures deterministic control and low latency in industrial environments.
  • 3Dual Ethernet Ports: Supports Modbus TCP/UDP, EtherNet/IP, and EtherCAT for robust networking.
  • 4Multiple Interfaces: Includes USB, USB-C, CAN, DI/DO, RS-232/485, and HDMI for versatile connectivity.
  • 5DIN-Rail Mounting: Compact design fits easily into industrial control systems.
Product Details
752-8303/8000-002
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Communications
Web browser
ETHERNET protocols
DHCP
Visualization
Web-Visu
Operating system
Real-time Linux (with PREEMPT_RT patch)
Processor
ARM?Cortex?A9 Quad-Core 1.0 GHz
Programming environment
CODESYS V3.5, Firmware Release 24 or higher
Transmission rate
ETHERNET:?10/100?Mbit/s;?CAN:?1?MBd
Main memory (RAM)
2?GB, DDR3 SDRAM
Internal memory (flash)
4?GB, eMMC
Non-volatile hardware memory
128Kbytes
Memory expansion
microSD (max. 2 GB), microSDHC (max. 32 GB)
Interfaces (USB)
2 x USB 2.0 socket, type A; 1 x USB OTG socket, type C
Onboard I/Os
4 x DIO, configurable
Indicators
3-color LED – red, green, blue; 4 x red/green LED
Supply voltage
24 VDC, SELV (18 … 31.2 V); LPS; with reverse voltage protection
Input current (max.) (24 V)
120mA
Operating power
2.9?W, without USB load; 9.4?W, with USB load
Connection technology: communication/fieldbus
ETHERNET: 2 x RJ-45; CANopen: 1 x D-sub 9 plug; RS-232/-485 Interface: 1 x D-sub 9 socket
Width
65?mm?/ 2.559?inches
Height
123?mm?/ 4.843?inches
Depth
115?mm?/ 4.528?inches
Weight
600g
Housing material
Aluminum, powder-coated
Ambient temperature (operation)
-20 … +60 °C
Ambient temperature (storage)
-20 … +80 °C
Protection type
IP20
Relative humidity (without condensation)
90%
Mounting type
DIN-35 rail
ETIM 9.0
EC001413
ETIM 8.0
EC001413
ECCN
NO US CLASSIFICATION
PU (SPU)
1?pcs
Packaging type
Box
Country of origin
DE
GTIN
4066966108996
Customs tariff number
8471410150
RoHS Compliance Status
Compliant,No Exemption

Specifications may be subject to change without notice
