Product Model

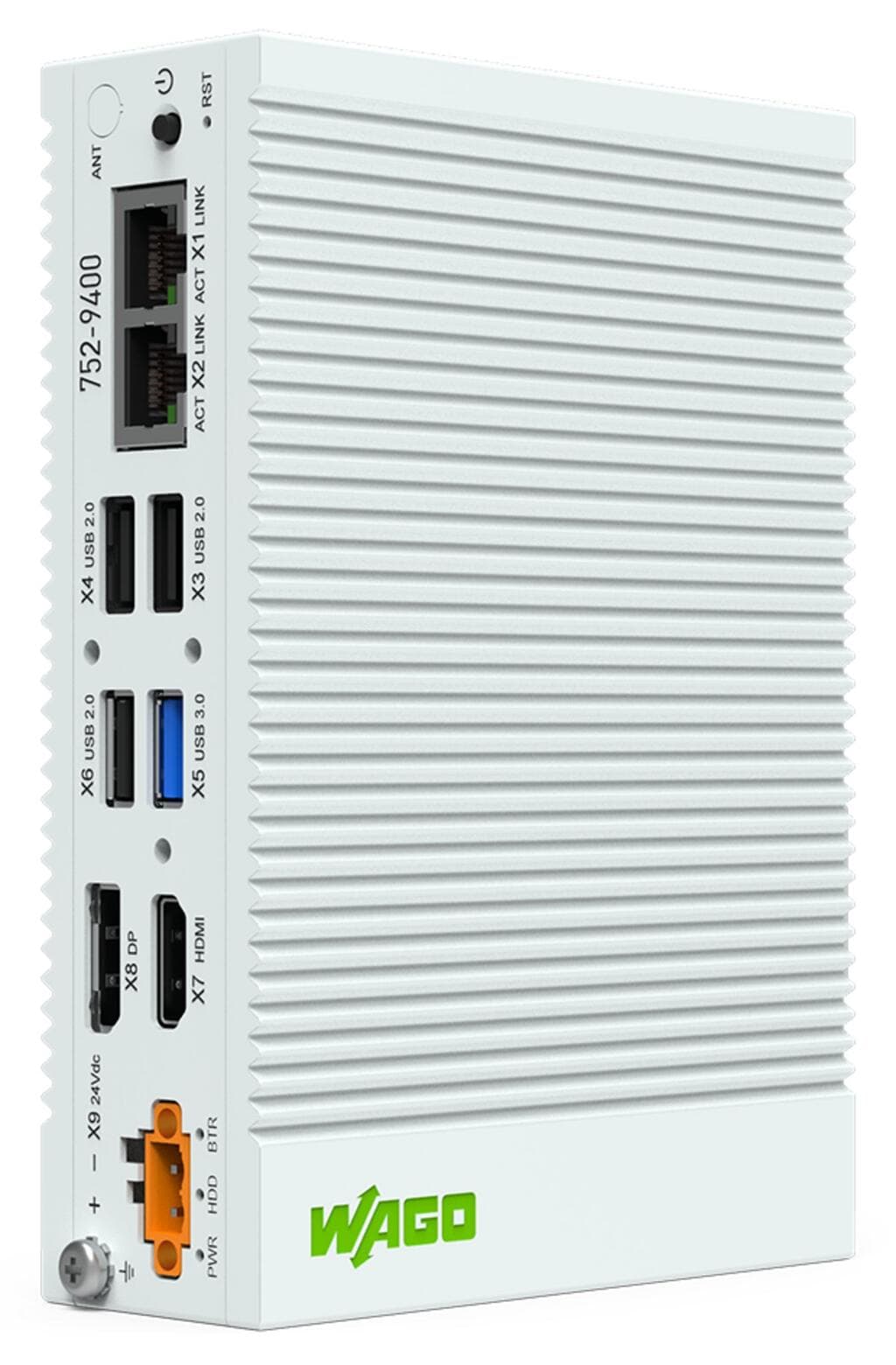

752-9400
Selling Points
- 1Industrial-grade Debian Linux operating system for robust digitalization applications.
- 2Dual Ethernet interfaces for seamless connection to field devices and IT networks.
- 3Quad-core Intel Atom E3845 processor with 1.91 GHz speed for efficient performance.
- 44GB RAM and 64GB FLASH memory for ample storage and processing needs.
- 5IP40 powder-coated aluminum enclosure with DIN-35 rail mounting for durability and ease of installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
ETHERNET protocols | DHCP | Visualization | Web server |
Operating system | Debian Linux; optional ctrlX OS pending | Processor | Intel?Atom E3845 Quad-Core 1.91 GHz |
Security-Modul | TPM 2.0 chip | Main memory (RAM) | 4 GB; DDR.3L 1333 MHz |
Internal memory (flash) | 64 GB; mSATA SSD | Interfaces | 1 x DisplayPort 1.2, 2560 x 1440p; 1 x HDMI v1.4, 1920 x 1080p @60Hz; Intel? HD Graphics |
Indicators | 3 x LED | Supply voltage | 24?VDC (10 … 36?V) |
Input current (typ.) at nominal load (24?V) | 1250mA | Input current (max.) (24 V) | 1750mA |
Operating power | 30 W (typ.); 42 W (max.) | Connection technology: communication/fieldbus | 2 x RJ-45 1000BASE-T;?3 x USB 2.0 (type A);?1 x USB 3.0 (type A) |
Width | 40?mm?/ 1.575?inches | Height | 150?mm?/ 5.906?inches |
Depth | 105?mm?/ 4.134?inches | Weight | 1309g |
Housing material | Aluminum, powder-coated | Ambient temperature (operation) | -20 … +60 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP40 |
Relative humidity (without condensation) | 95% | Mounting type | DIN-35 rail |
ETIM 9.0 | EC001413 | ETIM 8.0 | EC001413 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | TW |
GTIN | 4066966108279 | Customs tariff number | 8471500150 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
