Product Model

752-9813

Manufacturer

wago

Category

Controllers Bus Couplers I/O

Product ID

38368

In Stock
Last updated: 2025/4/17
View Specifications

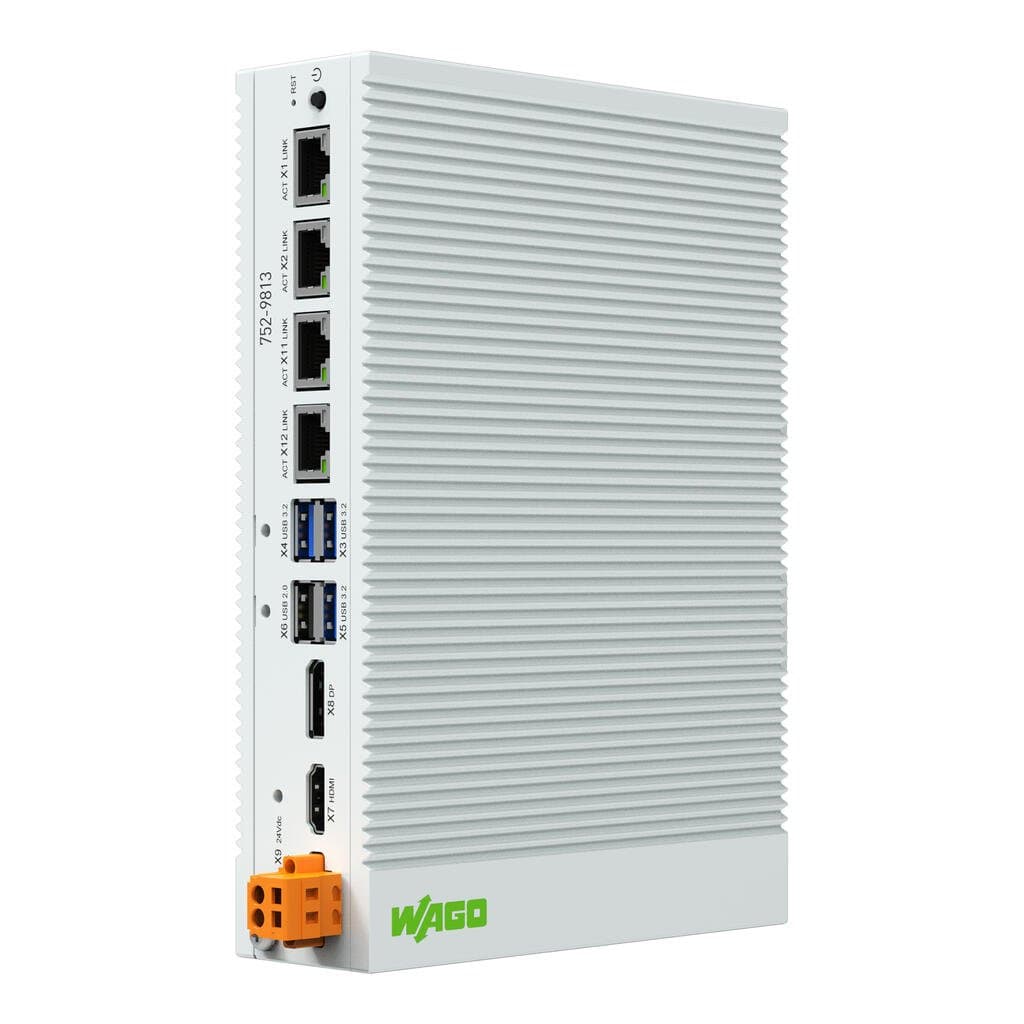

wago 752-9813

Selling Points

  • 1Industrial-grade connectivity: 4 x Ethernet interfaces for connecting to field devices and IT networks.
  • 2Versatile I/O options: 4 x USB interfaces for connecting USB sticks, mice, or keyboards.
  • 3High-resolution display: HDMI and DisplayPort interfaces for connecting high-resolution displays.
  • 4Robust memory configuration: Equipped with 32GB RAM and 256GB FLASH for efficient data storage.
  • 5Compact design: Ideal for DIN-RAIL mounting in control cabinets or housings.
Product Details
752-9813
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
ETHERNET protocols
DHCP
Visualization
Web server
Operating system
Debian Linux
Processor
Intel i7-1185G7E Processor 4 x 1.8 GHz (max. 4.40 GHz)
Security-Modul
TPM 2.0 chip
Main memory (RAM)
32 GB; DDR4 SODIMM
Internal memory (flash)
256 GB; m.2 SSD
Memory expansion
2 x mPCIe slot, 1 x M.2 B and SATA 2.5“ SSD
SIM card type
Nano-SIM
Interfaces
1 x DisplayPort 1.4a, 4096 x 2304 @60 Hz; 1 x HDMI 1.4, 3840 x 2160 @30 Hz
Indicators
3 x LED
Supply voltage
24 VDC (10 … 36 V)
Input current (typ.) at nominal load (24?V)
1258mA
Input current (max.) (24 V)
3542mA
Operating power
30.2 W (typ.); 85 W (max.)
Connection technology: communication/fieldbus
4 x RJ-45 1000BASE-T; 3 x USB 3.2 (type A); 1 x USB 2.0 (type A)
Width
45 mm / 1.772 inches
Height
200 mm / 7.874 inches
Depth
140 mm / 5.512 inches
Weight
1810g
Housing material
Aluminum, powder-coated
Ambient temperature (operation)
-20 … +60 °C
Ambient temperature (storage)
-40 … +85 °C
Protection type
IP40
Relative humidity (without condensation)
95%
Mounting type
DIN-35 rail
ECCN
NO US CLASSIFICATION
PU (SPU)
1 pcs
Packaging type
Box
Country of origin
TW
GTIN
4066966580266
Customs tariff number
84715000000
RoHS Compliance Status
Compliant,No Exemption

Specifications may be subject to change without notice
