Product Model

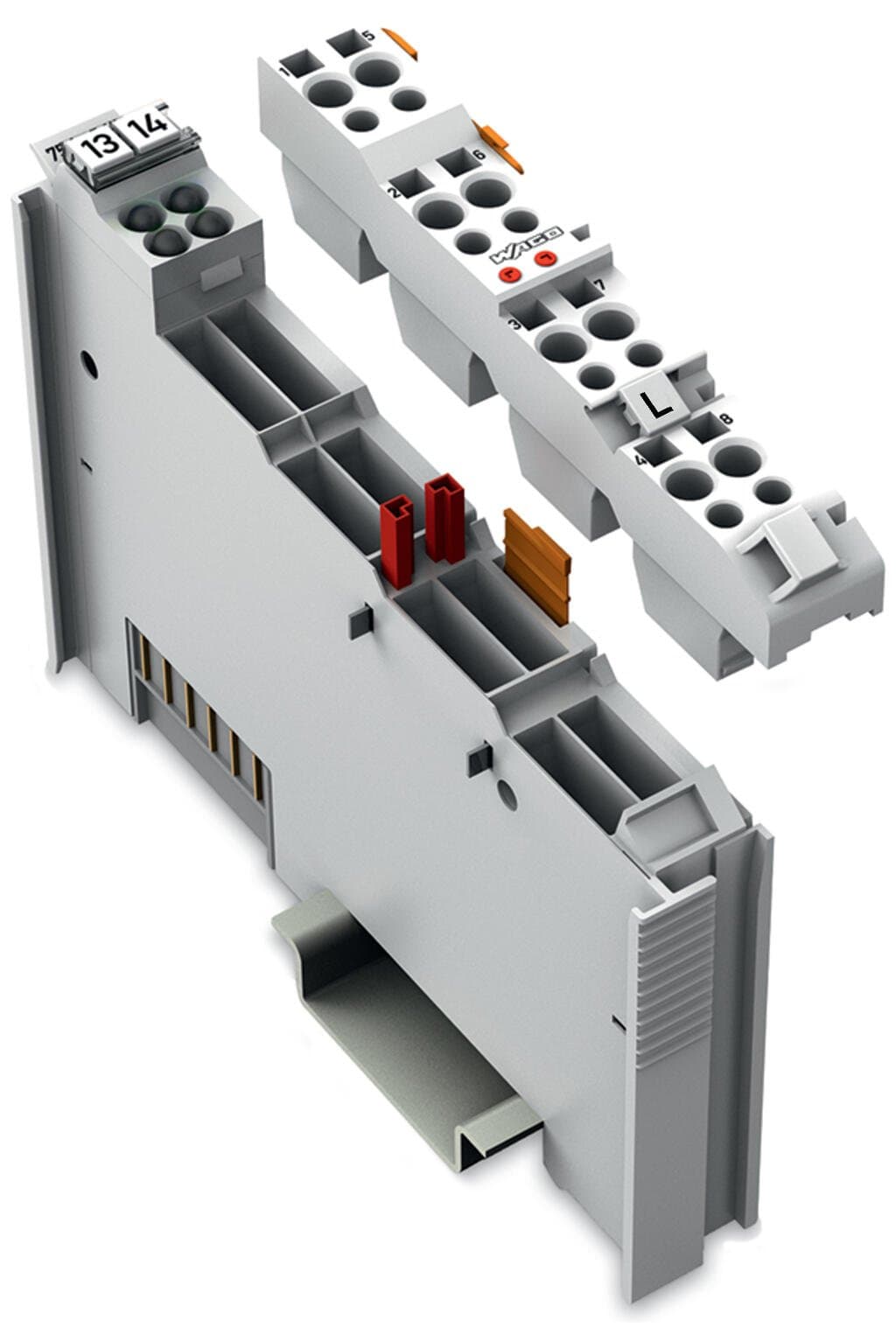

753-1629/000-001
Selling Points
- 1DIN-35 Rail Mounting: Easily integrate into your existing DIN rail systems.
- 25VDC Supply Voltage: Operates efficiently with a low DC voltage.
- 3IP20 Protection Rating: Ensures reliable operation in harsh environments.
- 4Push-in Spring CAGE CLAMP Connections: Simplifies conductor termination and removal.
- 5Robust Construction: Built with polycarbonate and polyamide 6.6 housing for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Supply voltage (system) | 5?VDC;?via data contacts |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Pluggable connector | Pluggable |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.892MJ | Weight | 33.9g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-10 | eCl@ss 9.0 | 27-24-26-10 |
ETIM 9.0 | EC001600 | ETIM 8.0 | EC001600 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821331933 | Customs tariff number | 8538908160 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(c)-I |
SCIP notification number (Austria) | 3f785cb7-9ed0-4d9c-88ed-2abcda079729 | SCIP notification number (Belgium) | f1a23fc1-07bb-44ff-ab7c-1ea92388eb00 |
SCIP notification number (Bulgaria) | caf604cd-1a1a-4bc1-9b73-178224697a1c | SCIP notification number (Czech Republic) | db981feb-ec92-4f85-b2e6-1218f1757b80 |
SCIP notification number (Denmark) | a1473969-ca26-45ce-ab5d-20fe900ecc53 | SCIP notification number (Finland) | d2b29e98-ee67-4eb8-9d8f-5d3c23be2880 |
SCIP notification number (France) | a1e728a7-67aa-4ea8-ab9c-2523d008e561 | SCIP notification number (Germany) | 596377f4-d63e-47c5-a07c-a664b382a855 |
SCIP notification number (Hungary) | 21571f4c-6a16-4409-8019-d9d832a0e2ee | SCIP notification number (Italy) | 92448900-3245-4920-828c-111295e13f1f |
SCIP notification number (Netherlands) | d65c8b6b-088f-4316-be6b-351983b08273 | SCIP notification number (Poland) | de807f43-eb35-446d-aa4d-7790cb7f722a |
SCIP notification number (Romania) | 48568b53-74de-46af-ad6e-6af2c892bd83 | SCIP notification number (Sweden) | 8bca4647-97ce-4e65-9ae4-66bede185b28 |
Specifications may be subject to change without notice
