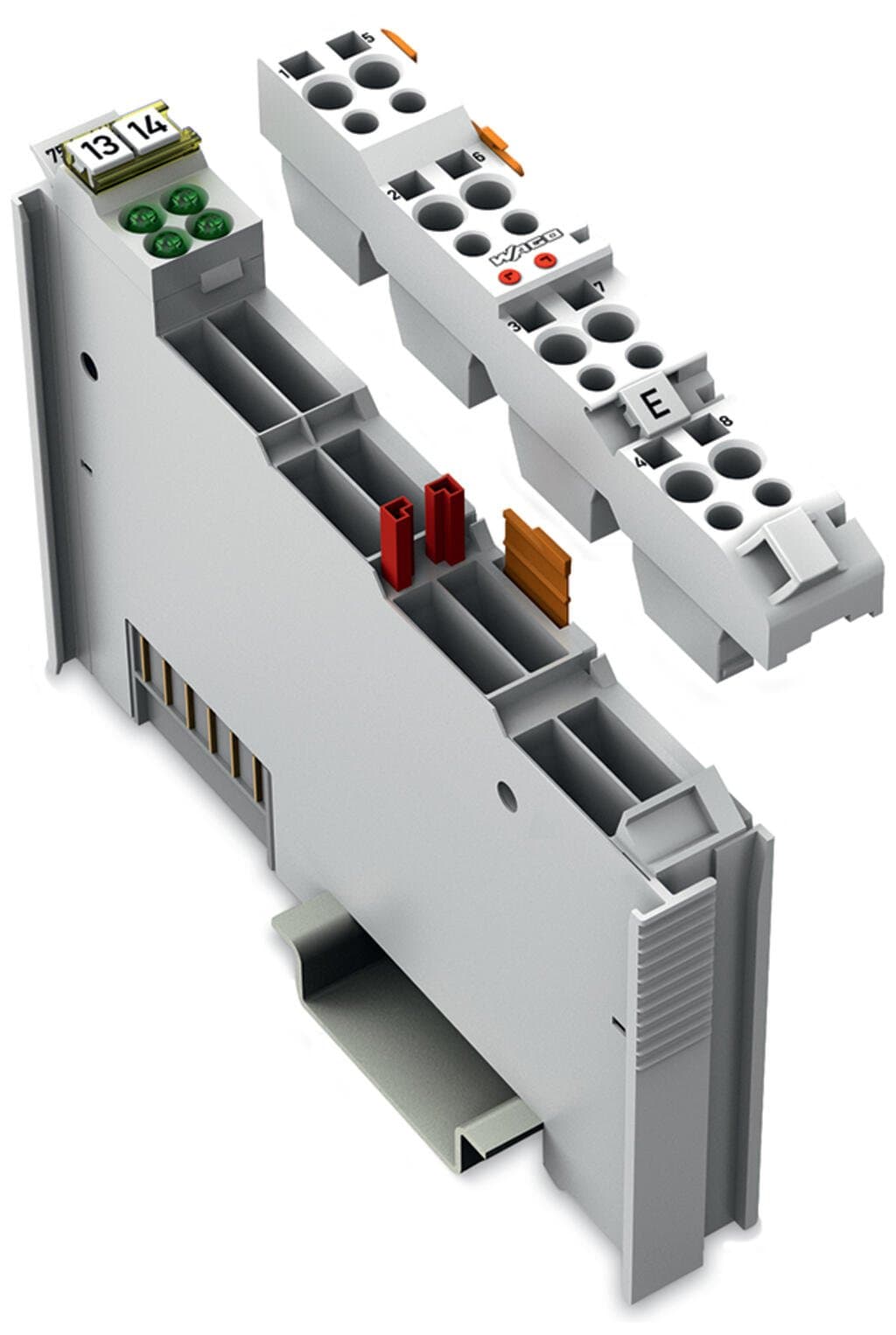

Product Model
753-415
Selling Points
- 14-Channel Digital Input: Receive control signals from up to four field devices with this versatile module.
- 224V AC/DC Compatibility: Operate seamlessly with both AC and DC voltages, ensuring broad compatibility in industrial settings.
- 320ms Filter: Enhance signal quality with a 20ms filter, reducing noise and improving data accuracy.
- 4High-Side Switching: Ensure reliable operation with high-side switching, protecting against overvoltage conditions.
- 5DIN-35 Rail Mounting: Easily integrate into your existing DIN-35 rail system for efficient and secure mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Number of digital inputs | 4 |
Number of Channels | 4 | Signal type | Digital |
Signal type (voltage) | 24?VAC/DC | Sensor connection | 4 x (2-wire) |
Input characteristic | high-side switching | Input filter (digital) | 20ms |
Input current (typ.) | 7.5 mA (AC); 9.5 mA (DC) | Voltage range for signal (0) | ?3 … +5 VDC; 0 … 5 VAC |
Voltage range for signal (1) | 11 … 30 VDC; 10 … 27 VAC | Input data width (internal) max. | 4bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 10mA |
Isolation | 500 V system/field | Indicators | LED (A-D) green: Status DI 1 … DI 4 |
Connection technology: inputs / outputs | 8 x CAGE CLAMP?(inputs) | Connection type 1 | Input |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 9 … 10 mm / 0.35 … 0.39 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 69.8 mm / 2.748 inches |
Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches | Mounting type | DIN-35 rail |
Pluggable connector | pluggable | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.423MJ |
Weight | 43.1g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 85389099990 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | b2692fa3-ac49-42c4-8e66-48b16b70c67b | SCIP notification number (Belgium) | 78b701b8-b4f7-4aab-8d5a-85216b656ce1 |
SCIP notification number (Bulgaria) | 0121d2d0-3245-4f83-a29e-57367f3628ec | SCIP notification number (Czech Republic) | 1be35df2-d8ad-4a5c-b530-63bdaa01d819 |
SCIP notification number (Denmark) | 04a8d00a-e2c3-4bfb-ac2e-7279785cdfa2 | SCIP notification number (Finland) | 115691b8-1878-4168-b663-d20d212d816c |
SCIP notification number (France) | c41a445e-dacb-47ae-b7bc-0a4871b88975 | SCIP notification number (Germany) | e41b540f-1866-400e-b7d0-2b47e5b9d3ae |
SCIP notification number (Hungary) | 7d135fb6-f505-4cb4-b164-506793300126 | SCIP notification number (Italy) | 0d2d1705-457a-446b-8c98-4ae132f92068 |
SCIP notification number (Netherlands) | e795f5a4-7121-4b5e-8c79-ad7e7ef9c812 | SCIP notification number (Poland) | 4708451c-3e50-43a6-9d5d-9bdb5a67fcd6 |
SCIP notification number (Romania) | 6e46eb22-5036-4711-a2a6-4c178cd6fec7 | SCIP notification number (Sweden) | 83be8cc6-03a7-49bc-a69c-9a85bb0c0282 |
Specifications may be subject to change without notice
