Product Model

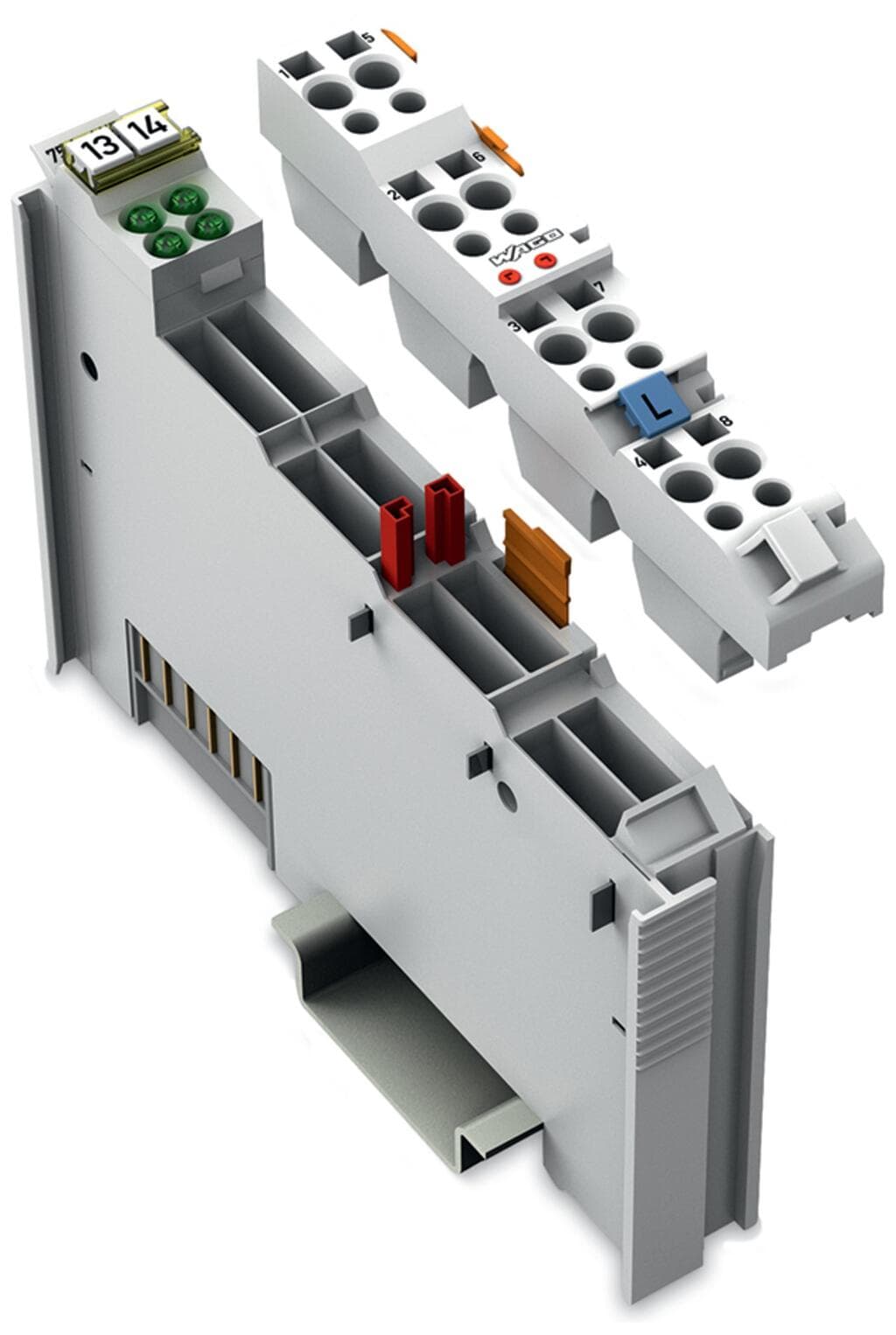

753-440
Selling Points
- 14-Channel Digital Input: Receive control signals from four digital field devices.
- 2High-Side Switching: Compatible with high-side switching for precise signal handling.
- 3120/230 VAC Compatibility: Operates with both 120 and 230 VAC, ensuring flexibility in various environments.
- 4Electrical Isolation: Field and system levels are electrically isolated for safety and reliability.
- 5DIN Rail Mounting: Easy installation on DIN rail for compact and organized industrial setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Number of digital inputs | 4 |
Number of Channels | 4 | Signal type | Digital |
Signal type (voltage) | 120 VAC | Sensor supply | 230 VAC |
Sensor connection | 4 x (2-wire) | Input characteristic | high-side switching |
Input filter (digital) | 10ms | Voltage range for signal (0) | 0 … 40 VAC |
Voltage range for signal (1) | 79 … 230 VAC (?15 … +10 %) | Signal frequency (min.) | 45Hz |
Signal frequency (max.) | 65Hz | Protection against incorrect wiring | Overvoltage protection (275 V) via varistor |
Input data width (internal) max. | 4bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 15mA | Supply voltage (field) | 230 VAC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Indicators | LED (A-D) green: Status DI 1 … DI 4 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Connection technology: inputs / outputs | 8 x CAGE CLAMP?(inputs) | Connection type 1 | Input |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 9 … 10 mm / 0.35 … 0.39 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 69.8 mm / 2.748 inches |
Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches | Mounting type | DIN-35 rail |
Pluggable connector | pluggable | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.514MJ |
Weight | 42.5g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 85389099990 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
