Product Model

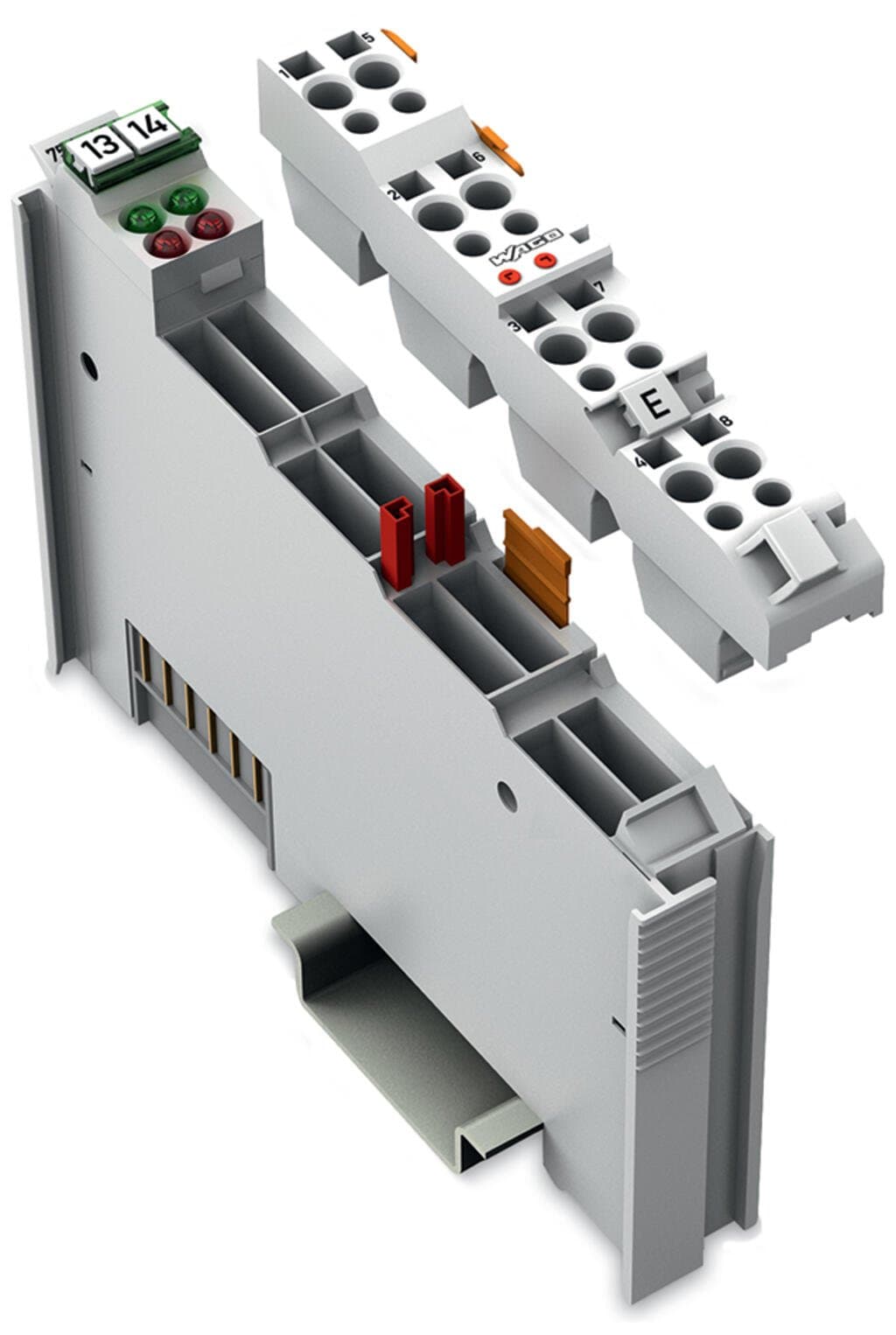

753-479
Selling Points
- 1High Precision Measurement: The WAGO 753-479 offers 14-bit resolution for precise analog input measurements.
- 2Differential Input: Equipped with differential ±10 VDC input, ensuring robust signal processing and noise reduction.
- 3Time Synchronous Acquisition: Continuously samples signals within the module, ensuring real-time data acquisition.
- 4Wide Operating Range: Operates in ambient temperatures from 0°C to +55°C and storage temperatures from -25°C to +85°C.
- 5Compact Design: Lightweight and compact, designed for easy mounting on DIN-rail systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Number of analog inputs | 2 |
Number of Channels | 2 | Signal type | Voltage |
Signal type (voltage) | -10 … +10?VDC | Sensor connection | 2 x (2-wire) |
Input filter | Low pass (1st order), fG= 5?kHz | Signal characteristics | Differential |
Resolution [bit] | 14bits | Operating mode | Continuously sampling (default) |
Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) | Protective device | RC circuit |
Admissible continuous overload | 60V | Crosstalk attenuation | 80dB |
Monotonicity without error code | yes | Internal resistance | 1000kΩ |
Measurement error, reference temperature | 25°C | Measurement error, deviation max (upper-range value) ≤± | 0.05% |
Measurement error over entire temperature range | ≤ 0.4 % | Temperature error max. (upper-range value) ≤± | 0.01%/K |
Sampling duration | 5μs | Sampling delay (channel/channel) | 1μs |
Sampling delay (module) | 1ms | Sampling repetition time | 1ms |
Measurement range overflow/underflow | Status byte and LED | Measured value acquisition | Time synchronous within the module |
Value of the least significant bit (LSB) | 1.2 mV | Conversion method | SAR (Successive Approximation Register) |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 100mA |
Isolation | 500?V system/field or channel/channel | Indicators | LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2 |
Connection technology: inputs / outputs | 6 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Pluggable connector | Pluggable | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.882MJ |
Weight | 42.1g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454510756 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 51ea0e1b-2924-4688-b6e4-73d1db8ef0d4 |
SCIP notification number (Belgium) | 016c9bf7-d298-4a25-bede-09196e34eb31 | SCIP notification number (Bulgaria) | 94abdebc-2562-4410-9fa3-f41417c09539 |
SCIP notification number (Czech Republic) | 58dfadc1-aa8c-4d04-a03c-e1410f104087 | SCIP notification number (Denmark) | d35c0e66-0de5-4709-a364-c0ec157a98b2 |
SCIP notification number (Finland) | 15361080-4bc0-4682-bf1e-d366ac53796c | SCIP notification number (France) | 99d6e565-25cd-4abf-98d4-05141363ea18 |
SCIP notification number (Germany) | 71f81048-17ea-4b96-907a-0896c01923a9 | SCIP notification number (Hungary) | 4810d655-76ed-43d3-9d4d-71c6ec65d3ce |
SCIP notification number (Italy) | 8d042089-2c4a-4617-9fdf-b0004cadb745 | SCIP notification number (Netherlands) | 368dcbd5-a930-4ee9-ac8e-7c3b04c9360f |
SCIP notification number (Poland) | 93d966c2-7b45-43bb-b1d5-f0a284d85d45 | SCIP notification number (Romania) | bfb54203-4064-4eac-ac50-139037b9da83 |
SCIP notification number (Sweden) | 0d06e325-e0ce-4794-a960-ee2caa7f8da7 |
Specifications may be subject to change without notice
