Product Model

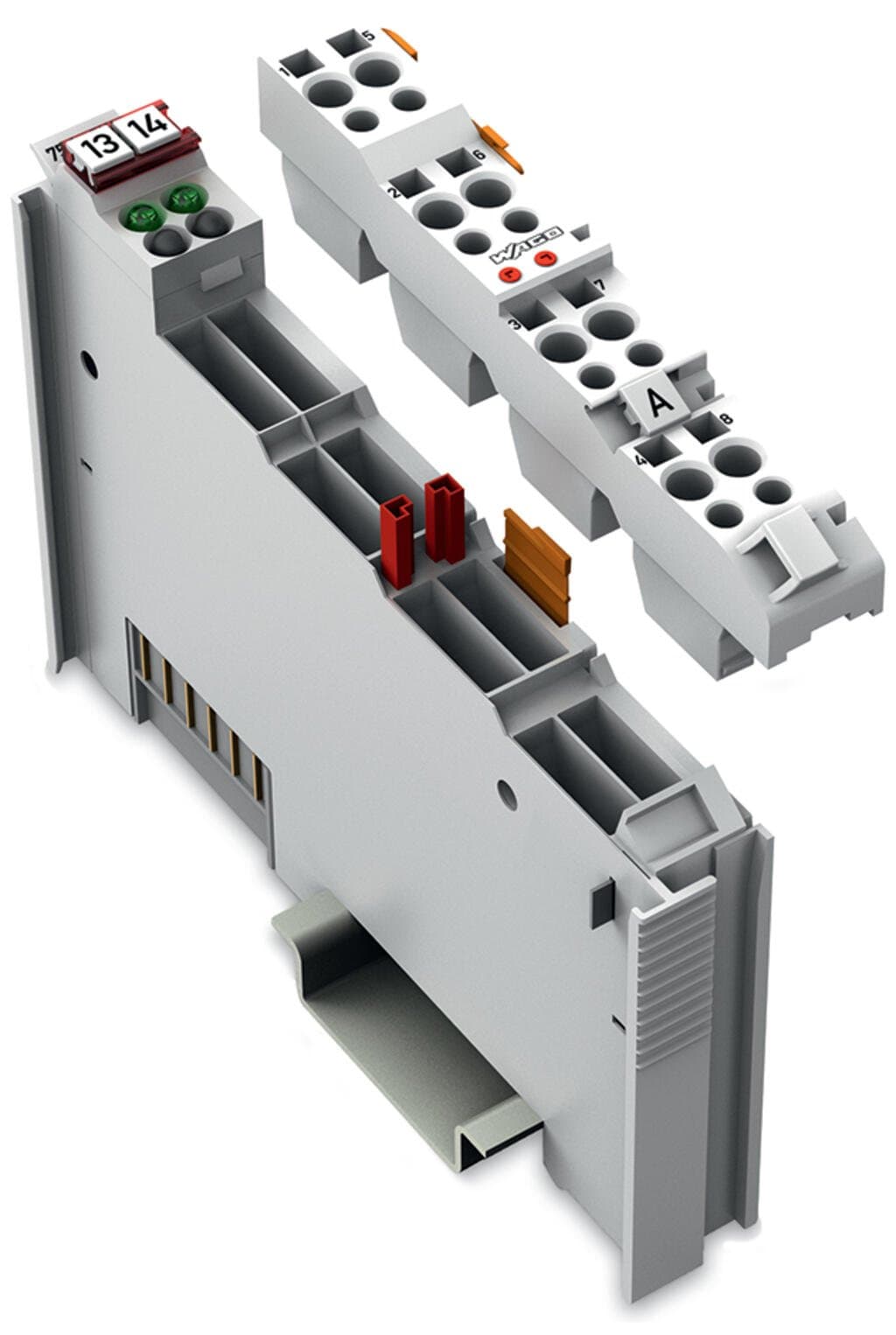

753-513/000-001
Selling Points
- 1High Voltage Capability: Operates at AC 250 V with 2.0 A current.
- 2Potential-Free Contacts: Ensures safe and reliable switching with NO contacts.
- 3Compact Design: DIN-35 rail mounting with a 12mm width for easy integration.
- 4Robust Construction: IP20 protection rating for durability in harsh environments.
- 5Versatile Connectivity: Spring CAGE CLAMP connections for secure actuator connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Number of digital outputs | 2 |
Number of Channels | 2 | Signal type | Digital |
Actuator connection | 2 x (1-wire) | Output circuit design | 2 make contacts |
Output characteristic | potential-free | Pull-in time (max.) | 10ms |
Drop-out time (max.) | 10ms | Bounce time (typ.) | 1.2ms |
Switching frequency (max.) | 0.5 Hz; Nominal load | Switching voltage (max.) | 250 VAC, 30 VDC |
Switching current (max.) | 2A | Switching voltage (min.) | 5V |
Switching current (min.) | 10mA | Switching power | 500 VA / 60 W; cos ? max. = 0.4; L/R max. = 7 ms |
Electrical switching operations (min.) (at max. resistive load) | 300 x 103 switching operations | Mechanical switching operations (min.) (at max. resistive load) | 20 x 10? switching operations |
Output data width (internal) max. | 2bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 100mA | Isolation | 1500 V (system/field) |
Indicators | LED (A, C) green: Status relay 1, relay 2 | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 69.8 mm / 2.748 inches | Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mounting type | DIN-35 rail | Pluggable connector | pluggable |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.232MJ |
Weight | 42.7g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8537109170 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
