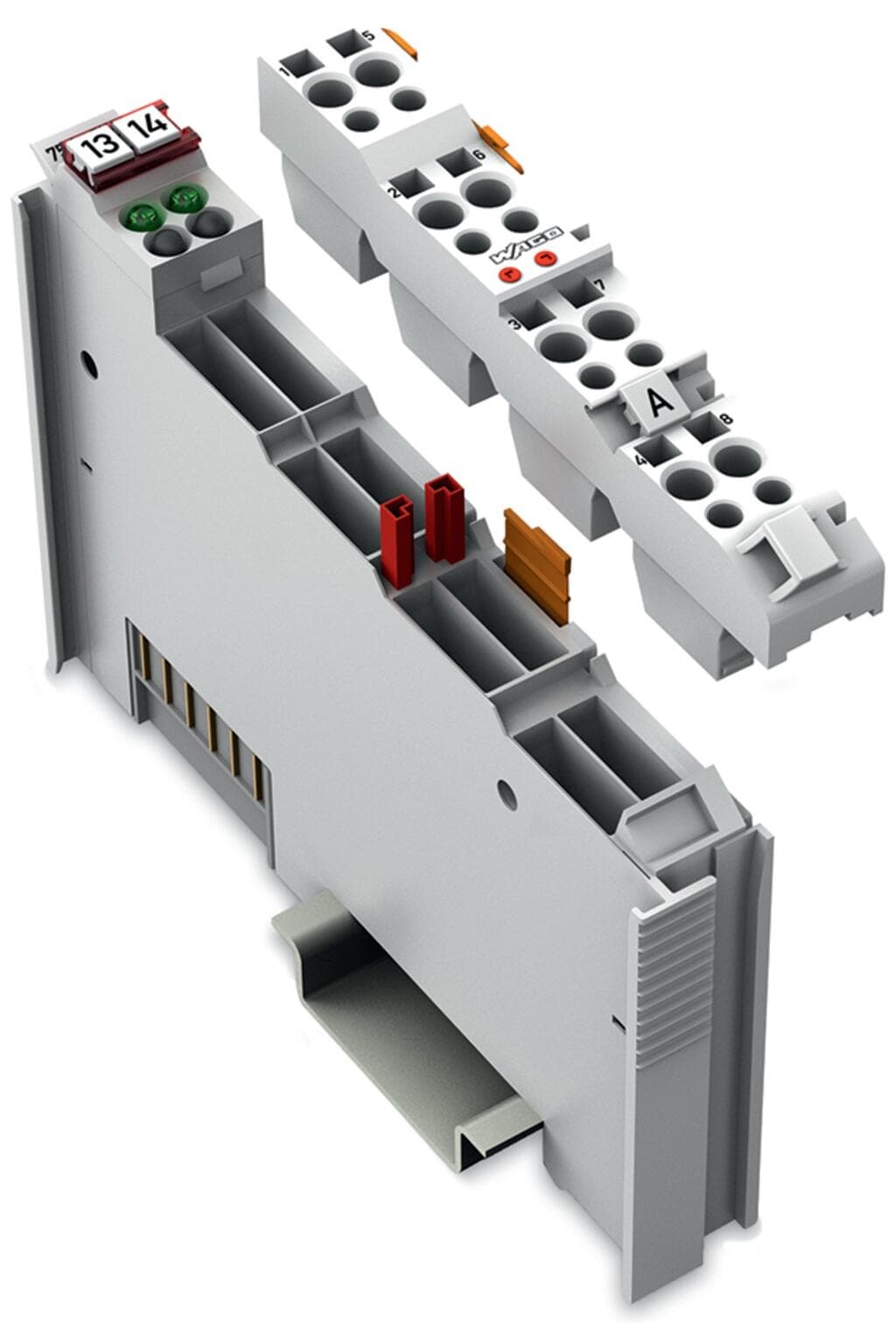

Product Model
753-517
Selling Points
- 1Extremely compact I/O nodes with up to 16 channels in a 12 mm wide housing.
- 2Finely granular I/O modules enable node customization and space-saving design.
- 3Supports numerous fieldbus systems and ETHERNET standards for maximum flexibility.
- 4CAGE CLAMP® spring pressure connections ensure superior reliability and easy installation.
- 5Modular design allows for easy configuration of each node to meet specific channel requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Number of digital outputs | 2 |
Number of Channels | 2 | Signal type | Digital |
Actuator connection | 2 x (1-wire) | Output circuit design | 2 changeover contacts |
Output characteristic | potential-free | Pull-in time (max.) | 8ms |
Drop-out time (max.) | 4ms | Switching frequency (max.) | 0.1 Hz; Nominal load |
Switching voltage (max.) | 250 VAC, 300 VDC | Switching current (max.) | 1A |
Switching current (note) | 1 A at 250 VAC and 40 VDC; 0.15 A at 300 VDC | Switching voltage (min.) | 12V |
Switching current (min.) | 100mA | Electrical switching operations (min.) (at max. resistive load) | 1 x 10? switching operations |
Mechanical switching operations (min.) (at max. resistive load) | 5 x 10? switching operations | Output data width (internal) max. | 2bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 90mA |
Isolation | 1500 V (system/field) | Indicators | LED (A, C) green: Status relay 1, relay 2 |
Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/outputs |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 9 … 10 mm / 0.35 … 0.39 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 69.8 mm / 2.748 inches |
Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches | Mounting type | DIN-35 rail |
Pluggable connector | pluggable | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.383MJ |
Weight | 60g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8537109170 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 9f21c02a-7898-4a84-a42e-7f5a23abd0e6 | SCIP notification number (Belgium) | b046f76f-a065-4ffa-9290-c7b87528ddde |
SCIP notification number (Bulgaria) | e2e8ed90-287a-4f86-8eda-665e88296a98 | SCIP notification number (Czech Republic) | 0a6c7ccf-2f05-48b4-806c-39b1879f9d68 |
SCIP notification number (Denmark) | 3f56e7e1-1e7a-4ade-a771-1c8df9f47adf | SCIP notification number (Finland) | 3c598c87-a25c-49a6-9283-78b983e74585 |
SCIP notification number (France) | 8041d19c-2ea5-41bd-8ee7-d75919a6ae24 | SCIP notification number (Germany) | 16dedffd-cc86-489e-a884-89f258f0eded |
SCIP notification number (Hungary) | c4f9d646-da3c-40e6-b722-ecdd98f56442 | SCIP notification number (Italy) | 0e705e4e-e225-45ad-82e4-689e53391725 |
SCIP notification number (Netherlands) | 1b13a201-7823-4796-a0a3-5feb6799aae2 | SCIP notification number (Poland) | dbf9204b-9240-4e06-9c47-6b364fd47cbd |
SCIP notification number (Romania) | 6c8f4bcc-c9ca-4208-bdd0-0b92b96849a8 | SCIP notification number (Sweden) | 9b1fad69-00f0-40c8-8b58-c76bd08b8099 |
Specifications may be subject to change without notice
