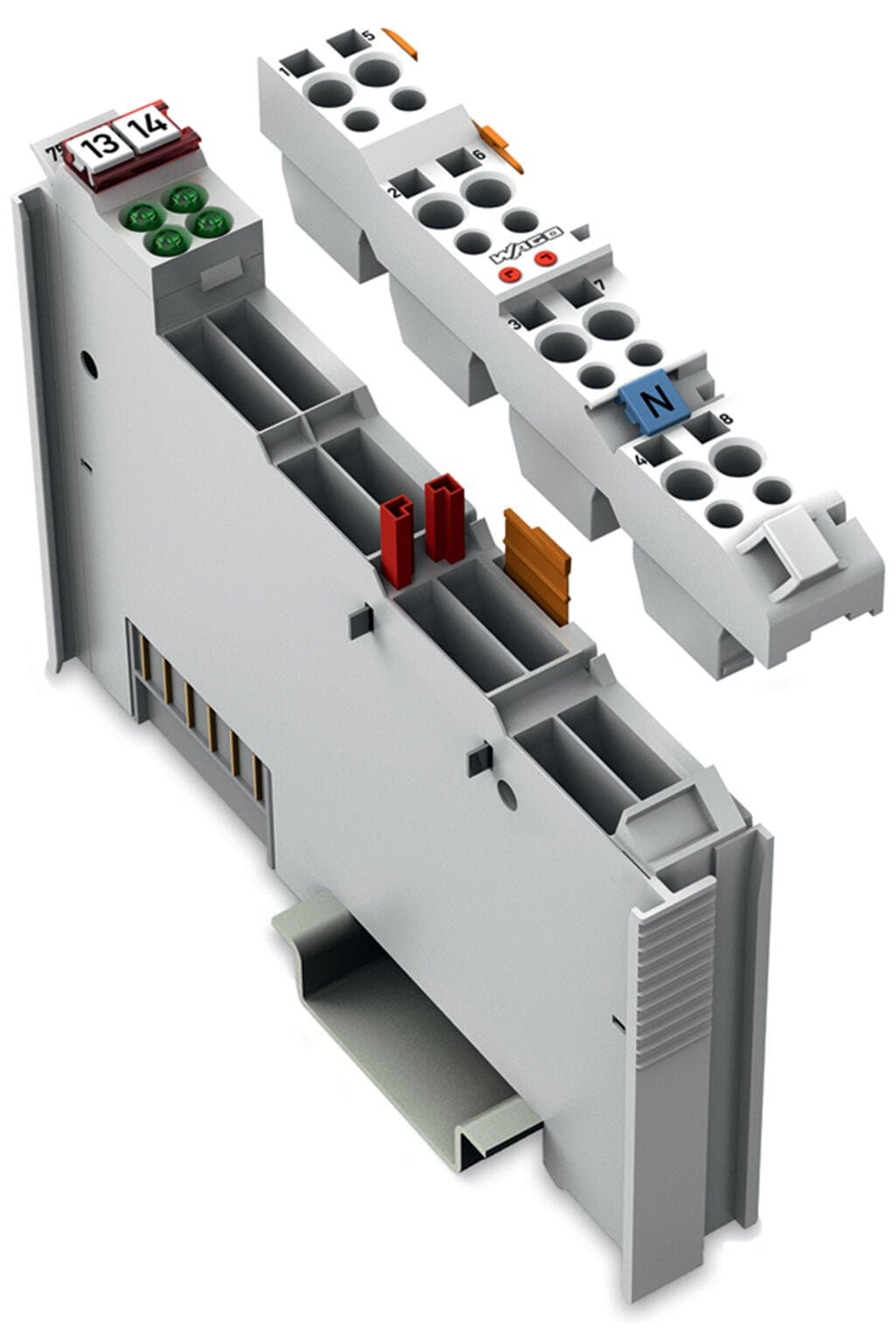

Product Model
753-540
Selling Points
- 1Extremely compact I/O nodes with up to 16 channels in a 12 mm wide housing.
- 2Finely granular I/O modules enable node customization and space-saving design.
- 3CAGE CLAMP® spring pressure connections ensure superior reliability and easy conductor termination.
- 4Supports numerous fieldbus systems and ETHERNET standards for maximum flexibility.
- 5Modular, DIN-rail-mount design allows for easy, tool-free installation with minimal risk of errors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Number of digital outputs | 4 |
Number of Channels | 4 | Signal type | Digital |
Signal type (voltage) | 5 … 250 VAC | Actuator connection | 4 x (2-wire) |
Output characteristic | high-side switching | Output current per channel | 0.25A |
Output current | short-circuit-protected | Load type | Resistive, inductive |
Short-circuit current | max. 10 A (16 ms) | ON voltage difference L-DO (max.) | 1.2V |
Pull-in time (max.) | 10ms | Drop-out time (max.) | 10ms |
Protection against incorrect wiring | Overvoltage protection (275 V) via varistor | Output data width (internal) max. | 4bits |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 18mA |
Supply voltage (field) | 230 VAC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Indicators | LED (A-D) green: Status DO 1 … DO 4 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Connection technology: inputs / outputs | 8 x CAGE CLAMP?(outputs) |
Connection type 1 | Output | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 69.8 mm / 2.748 inches | Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mounting type | DIN-35 rail | Pluggable connector | pluggable |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.881MJ | Weight | 41.4g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-4 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 8537109170 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 9c4d956d-dd95-4511-9de9-d02d31b8beb1 |
SCIP notification number (Belgium) | 83078a96-630a-4175-a394-fb7822b003be | SCIP notification number (Bulgaria) | 2eef6ca0-c285-4869-ba3f-eab03e117b40 |
SCIP notification number (Czech Republic) | ec4fcba6-5847-48da-b0ba-057c6addf434 | SCIP notification number (Denmark) | 29d82d92-fe3c-4b4f-b124-8cffd6421d71 |
SCIP notification number (Finland) | 502d868b-67c8-4f8e-9872-cb521e663447 | SCIP notification number (France) | f3a03125-4294-4559-aac8-c9678c87dbf9 |
SCIP notification number (Germany) | 0836dc52-7130-44c0-a104-464335365f54 | SCIP notification number (Hungary) | e325d3e2-f170-4a2f-8d21-ad2d8d5e2e5b |
SCIP notification number (Italy) | 60d2c8ef-08f8-4e88-8a6e-95df45b10a74 | SCIP notification number (Netherlands) | 6c18dc69-9cf1-4fd1-91da-06f93a66a119 |
SCIP notification number (Poland) | f6c2f8f1-5c6a-4db7-b0db-80a8105857af | SCIP notification number (Romania) | ef605e0d-d71d-4aed-9701-38cce88f5354 |
SCIP notification number (Sweden) | be7a4de5-c5e9-4980-a8f8-fca6bc429964 |
Specifications may be subject to change without notice
