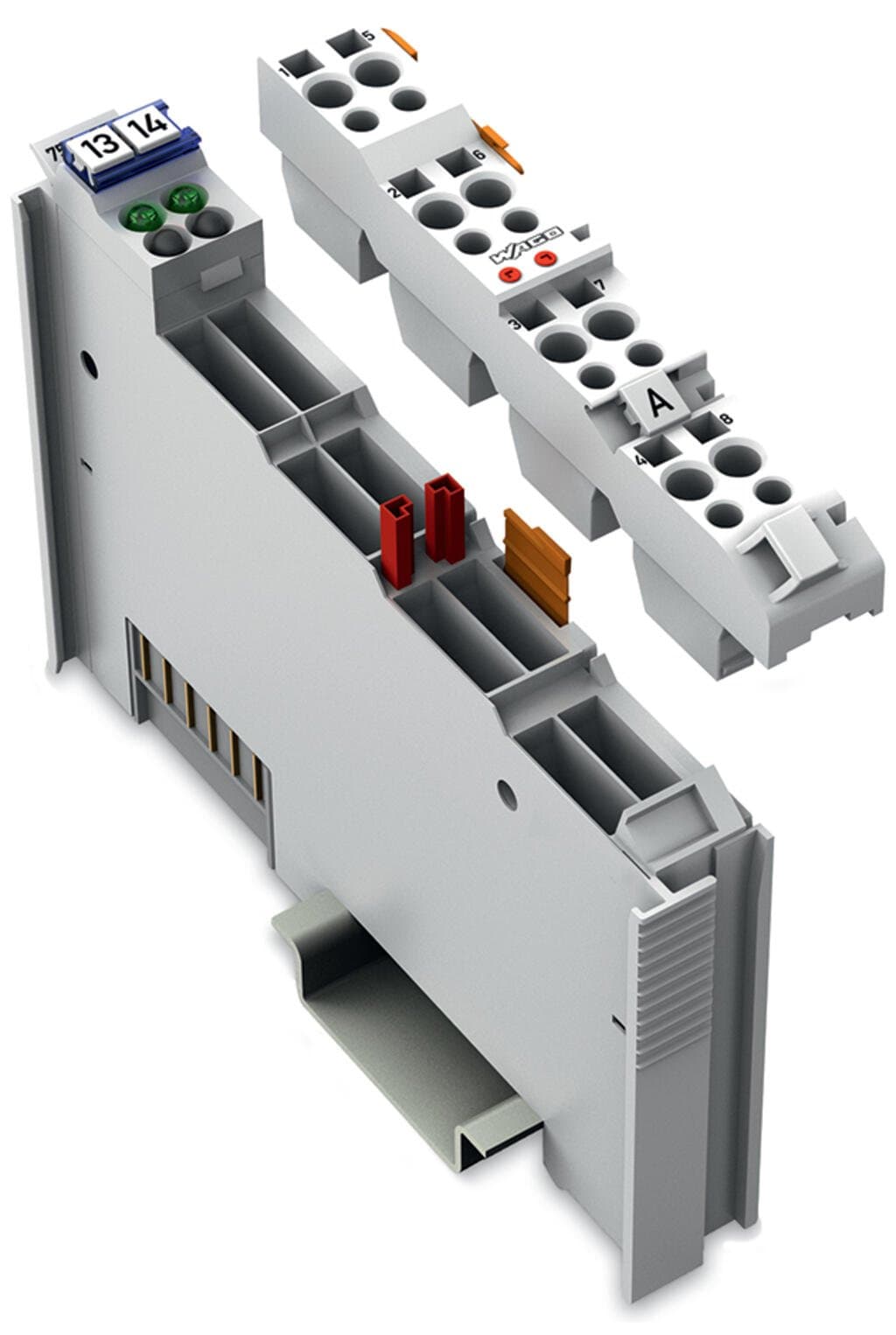

Product Model
753-556
Selling Points
- 112-bit resolution for precise analog output.
- 2±10VDC for versatile application compatibility.
- 32ms conversion time for efficient signal processing.
- 4IP20 protection and robust polycarbonate/polyamide 6.6 housing.
- 5Pluggable Cage-Clamp connections and DIN-35 rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Number of analog outputs | 2 |
Number of Channels | 2 | Signal type | Voltage |
Signal type (voltage) | -10 … +10?VDC | Actuator connection | 2 x (2-wire) |
Resolution [bit] | 12bits | Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) |
Load impedance (voltage output) | ≥?5?kΩ | Conversion time (typ. ≤) | 2ms |
Measurement error, reference temperature | 25°C | Measurement error, deviation max (upper-range value) ≤± | 0.1% |
Temperature error max. (upper-range value) ≤± | 0.01%/K | Output error, deviation (max.) of the upper-range value | 0.1% |
Temperature error (max.) of the output range value | 0.01%/K | Recovery time (typ.) | 0.3ms |
Linearity | ±10 mV | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 65mA | Isolation | 500?V system/field |
Indicators | LED (A, C) green: Function AO 1, AO 2 | Connection technology: inputs / outputs | 6 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Pluggable connector | Pluggable |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.882MJ |
Weight | 41.5g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454496166 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | c87b26b1-f454-48fe-887c-9568cd5e97fe |
SCIP notification number (Belgium) | 68df95d0-c772-416c-a020-31b479078c4d | SCIP notification number (Bulgaria) | 45df005e-a97c-482a-bced-59ddcb29aa4e |
SCIP notification number (Czech Republic) | 4c532f1b-0174-4036-b1fc-33a1e2b3f7fc | SCIP notification number (Denmark) | dd856d1e-3c2d-4412-995e-db0226f31447 |
SCIP notification number (Finland) | 13acc5dd-5e38-4a1b-a8bf-75749869044a | SCIP notification number (France) | 0d5b03bb-72c4-4d6f-a963-b5dcb71adc7e |
SCIP notification number (Germany) | 15c8c5b6-5e67-439a-b523-9f00b05c6840 | SCIP notification number (Hungary) | eb5117a0-1793-4b87-bd04-670b3d1eeefa |
SCIP notification number (Italy) | 99caadfe-5710-4bd3-9bad-346cde067854 | SCIP notification number (Netherlands) | 96286479-098e-459f-aaea-854bc4664984 |
SCIP notification number (Poland) | 84c57639-bfb9-4fc5-a413-29f52c7a6363 | SCIP notification number (Romania) | 193c8040-5dc6-458b-92d8-c9e1900ed6a1 |
SCIP notification number (Sweden) | ea46dbda-1386-49f5-ab97-f52d05078e2c |
Specifications may be subject to change without notice
