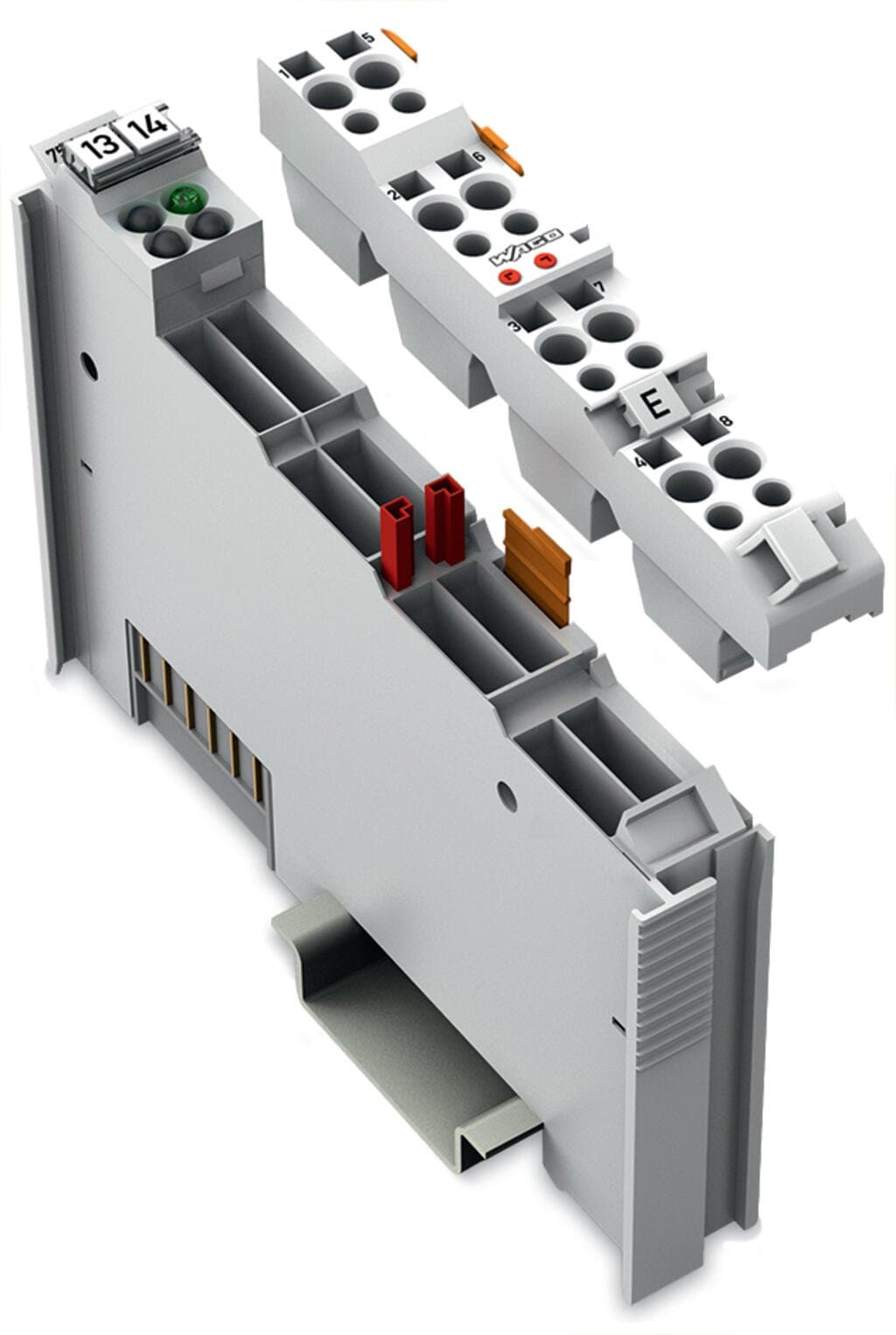

Product Model
753-612
Selling Points
- 1Compact Design: Measures 69.8 mm x 100 mm x 12 mm, perfect for tight spaces.
- 2High Reliability: Built with polycarbonate and polyamide 6.6 housing for durability.
- 3Versatile Mounting: Supports both horizontal and vertical DIN rail mounting.
- 4Wide Voltage Range: Operates from 0 to 230 V AC/DC, ensuring flexibility in various applications.
- 5IP20 Protection: Offers protection against solid objects larger than 12.5 mm in diameter of 50 mm in length.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Signal type | Voltage |
Signal type (voltage) | 0 … 230?VAC/DC | Supply voltage (system) | 5?VDC;?via data contacts |
Supply voltage (field) | 230 VAC/DC (-15 … +10 %); via power jumper contacts (power supply via CAGE CLAMP?connection; transmission (field-side supply voltage only) via spring contact | Number of outgoing power jumper contacts | 3 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: field supply | 6 x CAGE CLAMP? |
Connection type 1 | Field supply | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Pluggable connector | Pluggable |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.07MJ |
Weight | 41g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-10 |
eCl@ss 9.0 | 27-24-26-10 | ETIM 9.0 | EC001600 |
ETIM 8.0 | EC001600 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454394615 |
Customs tariff number | 8538901000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
