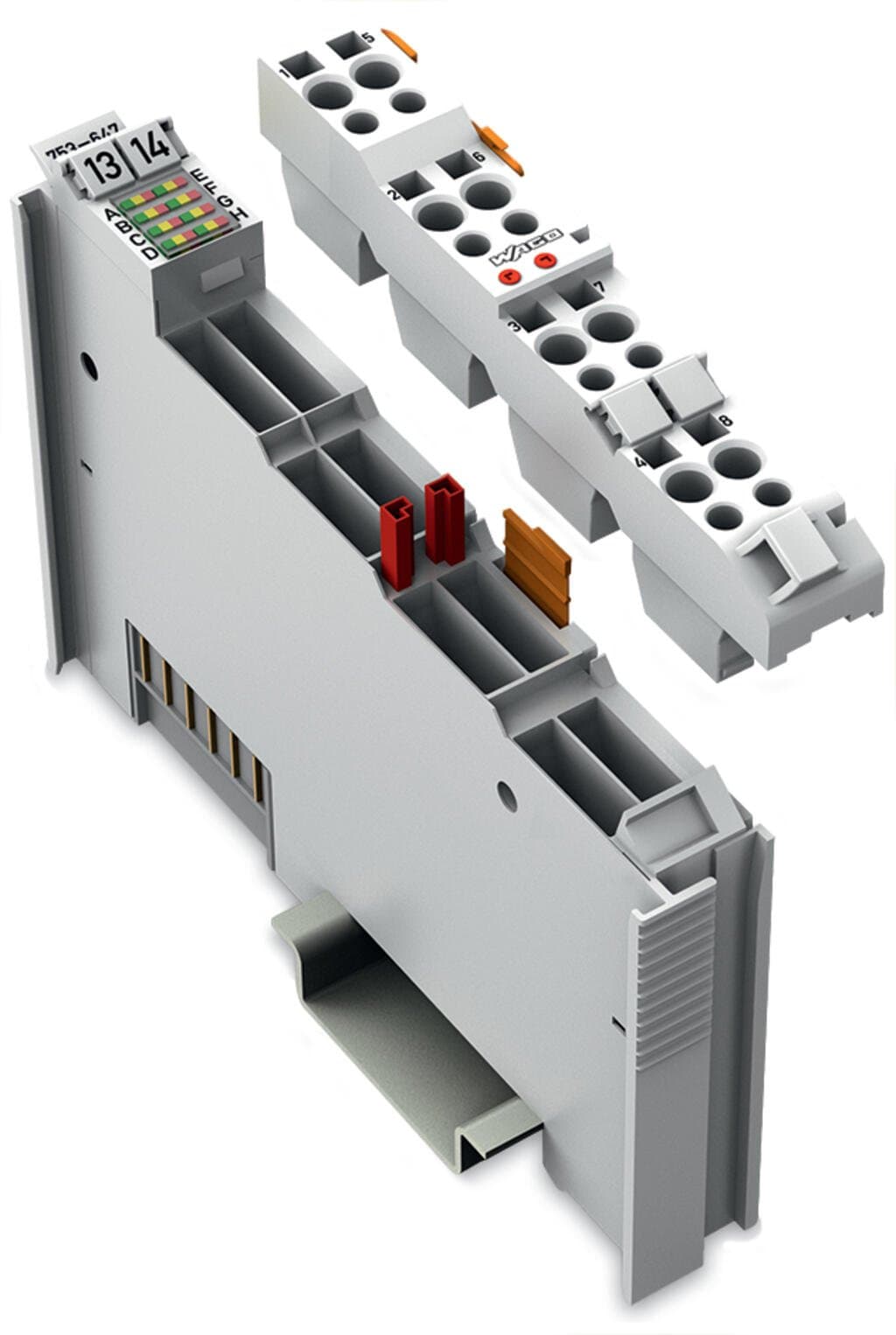

Product Model
753-647
Selling Points
- 1Advanced DALI-2 Compliance: Meets the IEC 62386 standard for reliable and efficient lighting control.
- 2High Reliability: Operates in 95% relative humidity without condensation and withstands 15g shock resistance.
- 3Versatile Connectivity: Features 8 x CAGE CLAMP inputs/outputs for easy connection.
- 4Energy Efficiency: Consumes only 10 mA from the DALI bus with an alternative supply via the DALI bus.
- 5Comprehensive Certification: Certified by multiple international standards including UL, DNV, and EAC for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The 753 Series Plug is included with delivery. | Device specification | DALI-2 Specification: DIN IEC 62386 only in conjunction with 753-620 or 787-2857 Power Supplies |
Device-specific | Current consumption from DALI bus with alternative supply via DALI bus: 10 mA | Topology | Number of control gears/control devices (DALI): 64 control gears + 64 control devices (addressable) |
Transmission channel | 1 | Data width | 24-byte data |
Guaranteed supply current | 200mA | Supply current (max.) | 250mA |
Supply voltage | DALI: 18 V (external) | Commissioning | commissioning and programming: via WAGO-I/O-PRO V2.3 or CODESYS 3.5; Configuration: via WAGO DALI configurator |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 85mA |
Isolation | 2100 VDC DALI bus/local bus | Indicators | LED (A-H) green/yellow/red: Easy Mode, TxD, ready for operation, 1 or 2 button operation, Full Mode, RxD, voltage present, latching function |
Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69?mm?/ 2.717?inches |
Depth from upper-edge of DIN-rail | 61.8?mm?/ 2.433?inches | Mounting type | DIN-35 rail |
Pluggable connector | Pluggable | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.046MJ | Weight | 61.4g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2*, *only in connection with 753-620 DC/DC Converter or 787-1007 Power Supply | EMC emission of interference | per EN 61000-6-3*, *only in connection with 753-620 DC/DC Converter or 787-1007 Power Supply |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-08 | eCl@ss 9.0 | 27-24-26-08 |
ETIM 9.0 | EC001604 | ETIM 8.0 | EC001604 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821475712 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 213eb1c4-9ed7-4749-b22e-256a7bf968fb | SCIP notification number (Belgium) | 2f382da1-a23d-4244-9e14-87624fb0f1fd |
SCIP notification number (Bulgaria) | 7c0c02d7-7667-43cd-9d52-56d5d772cb75 | SCIP notification number (Czech Republic) | 90479752-9e92-42b2-8a34-27a9419c6e5d |
SCIP notification number (Denmark) | c78efd5c-36c2-4820-9e12-4c016b42179e | SCIP notification number (Finland) | bcdfe591-236b-46a9-ae06-835b9f6d9f8b |
SCIP notification number (France) | c2299956-d5e5-49c7-8fff-96cdc1449b96 | SCIP notification number (Germany) | 2683dc8b-cc59-4163-a3cc-b2785f3aba7b |
SCIP notification number (Hungary) | 9cb78b3b-5d4c-4307-bcc1-559590473e9d | SCIP notification number (Italy) | 0f8e04a5-59fe-4bd8-81a9-b5148e7a1726 |
SCIP notification number (Netherlands) | 0be66433-cffe-4108-a84a-068c2f0da78e | SCIP notification number (Poland) | 9fe97acd-0526-41e2-b85a-639c510dd358 |
SCIP notification number (Romania) | 1e697fdd-545c-4b9b-b780-65bea0c2984d | SCIP notification number (Sweden) | 0e952436-3ef8-4845-b68d-5663affeb2cc |
Specifications may be subject to change without notice
