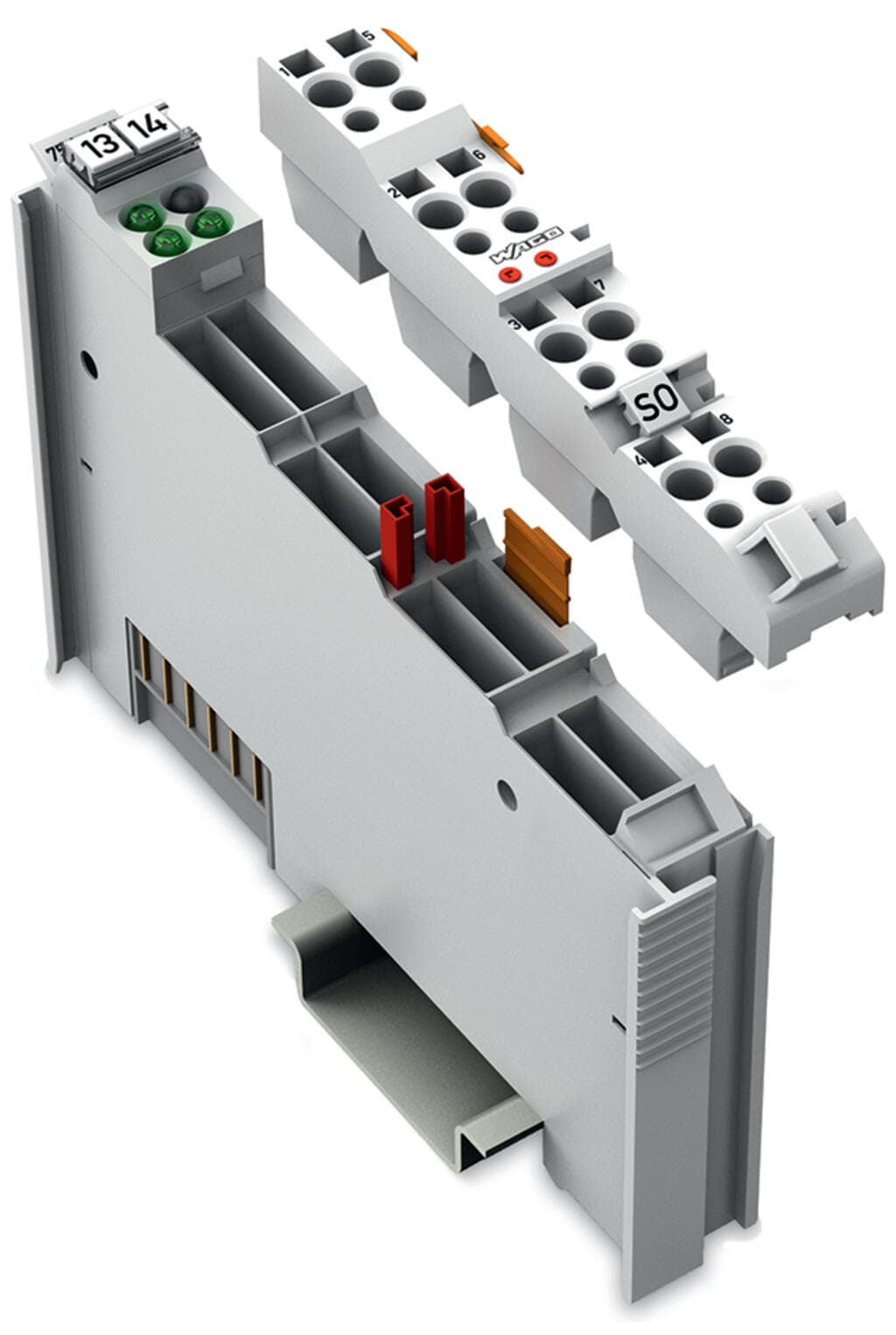

Product Model
753-650
Selling Points
- 1Extremely compact I/O nodes with up to 16 channels in a 12 mm wide housing.
- 2Supports numerous fieldbus systems and ETHERNET standards for maximum flexibility.
- 3Tool-free installation on DIN-rail with straightforward design to prevent installation errors.
- 4Finely granular I/O modules enable node customization and high integration density.
- 5CAGE CLAMP® spring pressure connections ensure superior reliability and consistent quality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Device-specific | Bit skew: < 3 %; RS-232-C line length (max.): 15 m |
Signal type | RS-232 | Transmission rate | 9.6?kBd |
Transmission channels | 1 TxD / 1 RxD, full-duplex | Data width | 1 x 24-bit input/output (3-byte user data); 1 x 8-bit control/status |
Parity | None | Number of data bits | 8 |
Number of stop bits | 1 | Buffer | 120-byte input / 16-byte output |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 55mA |
Isolation | 500?V system/field | Indicators | LED (A, B, D) green: Function, TxD, RxD |
Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Pluggable connector | Pluggable | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.908MJ |
Weight | 40g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-08 |
eCl@ss 9.0 | 27-24-26-08 | ETIM 9.0 | EC001604 |
ETIM 8.0 | EC001604 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454394639 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | ca4201e0-3be5-4b2b-b9cf-72159d732a47 |
SCIP notification number (Belgium) | 16bf8c0d-3c92-412b-9d82-954f9a1d4fb1 | SCIP notification number (Bulgaria) | 34654181-61ff-4ed1-86cc-28c09d1bf183 |
SCIP notification number (Czech Republic) | b41bbece-21d3-41ee-aee4-5af8c4f4b045 | SCIP notification number (Denmark) | af4e2779-043d-4ef8-b4b4-839e02e39d26 |
SCIP notification number (Finland) | 40bf1295-a6a8-4067-bfa9-bdc1305ef144 | SCIP notification number (France) | a0762480-0ba3-48f7-bb5c-92a2e561bbeb |
SCIP notification number (Germany) | ad2fe502-c43d-4beb-8ce0-9ed76481d534 | SCIP notification number (Hungary) | ed199706-374d-4bd6-bbb0-f640995c8223 |
SCIP notification number (Italy) | 8f3eb97a-a0ca-4346-bb48-08e48b12e4b6 | SCIP notification number (Netherlands) | 65b15296-f7b9-401a-a8ca-5c8943ca7307 |
SCIP notification number (Poland) | cf440958-8b70-445e-b0a4-91888dea48ff | SCIP notification number (Romania) | 7e38368b-547f-4dd0-ba79-d67232887761 |
SCIP notification number (Sweden) | 2ff304c0-29a7-4641-95ee-8788f63ea50d |
Specifications may be subject to change without notice
