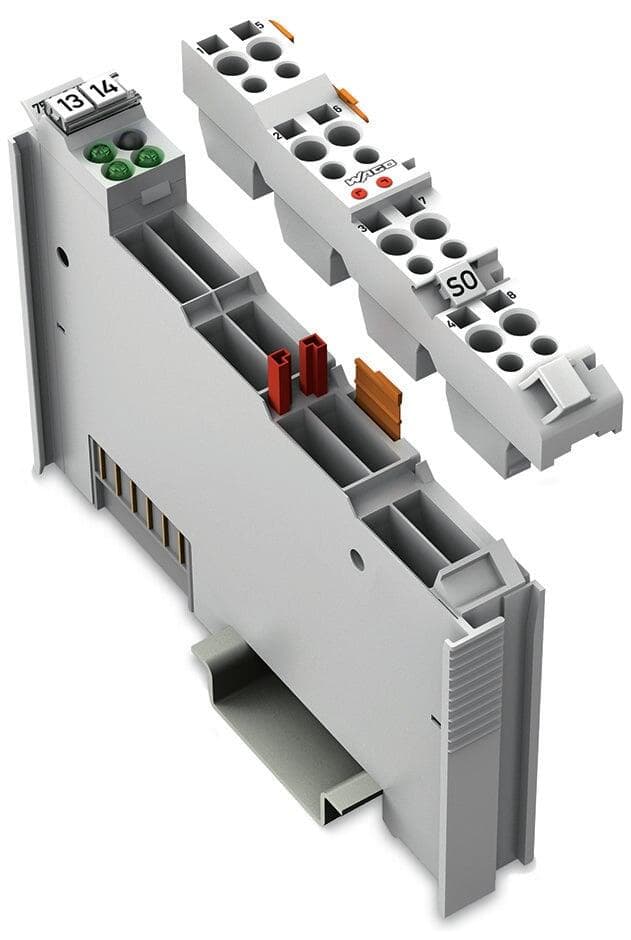

Product Model
753-653/003-000
Selling Points
- 1Adjustable Communication Settings: Customize parity (none/even), data bits (7/8), and stop bits (1/2) for flexible communication.
- 2DIN Rail Mounting: Compact design for easy DIN-35 rail mounting with a 12mm width.
- 3IP20 Protection: Robust IP20 protection rating for reliable operation in various environments.
- 4Wide Temperature Range: Operates in ambient temperatures from 0°C to +55°C.
- 5RS-485 and RS-422 Support: Compatible with both RS-485 and RS-422 communication standards with adjustable data rates from 1.2 to 19.2 kbit/s.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Signal type | RS-422 / RS-485 |
Transmission rate | 1.2 kBd … 19.2 kBd ( (9600 baud (default setting))) | Bit transfer | ISO 8482 / DIN 66259 - 4 |
Transmission channels | 1 TxD / 1 RxD, full-duplex | Line length | approx. 1000 m twisted pair |
Data width | 1 x 24-bit input/output (3-byte user data); 1 x 8-bit control/status | Parity | None/Even, adjustable |
Number of data bits | 7/8, adjustable | Number of stop bits | 1/2, adjustable |
Buffer | 120-byte input / 16-byte output | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 65mA | Isolation | 500?V system/field |
Indicators | LED (A, B, D) green: Function, TxD, RxD | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Pluggable connector | Pluggable |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.908MJ |
Weight | 39.1g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-08 |
eCl@ss 9.0 | 27-24-26-08 | ETIM 9.0 | EC001604 |
ETIM 8.0 | EC001604 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454565275 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | c423a2ac-0523-4b74-ac99-a657c366c7ae |
SCIP notification number (Belgium) | 87f6a212-fc3b-44d7-a5ad-e1c9bcad1d12 | SCIP notification number (Bulgaria) | 674c9293-139f-423e-82f8-d3d312796ac2 |
SCIP notification number (Czech Republic) | 4538e7b8-74f8-4134-9ee9-76790a7009f3 | SCIP notification number (Denmark) | e233f0ee-cba5-4190-ab7f-7d765e791a3b |
SCIP notification number (Finland) | 67e7a70e-e65c-4ba0-98a3-5c82e8af532a | SCIP notification number (France) | 4b5936b7-3243-4ffa-98f9-4f64a31714d2 |
SCIP notification number (Germany) | b3b0a3a8-30ed-453b-bcd1-089542dbc5d8 | SCIP notification number (Hungary) | 38c561be-d600-4a6a-a402-eaf430e29a62 |
SCIP notification number (Italy) | 0d3442db-9f26-486b-ab0f-e8f442ae42d1 | SCIP notification number (Netherlands) | 9816e326-fc91-4701-8978-064d8970d69d |
SCIP notification number (Poland) | c3946428-1b3a-4e80-891d-b811c83404ec | SCIP notification number (Romania) | 128edd72-9e6a-4ae9-8c11-87e676bc782a |
SCIP notification number (Sweden) | c0ce39e7-b6ee-438a-985b-8db62d3c6c81 |
Specifications may be subject to change without notice
