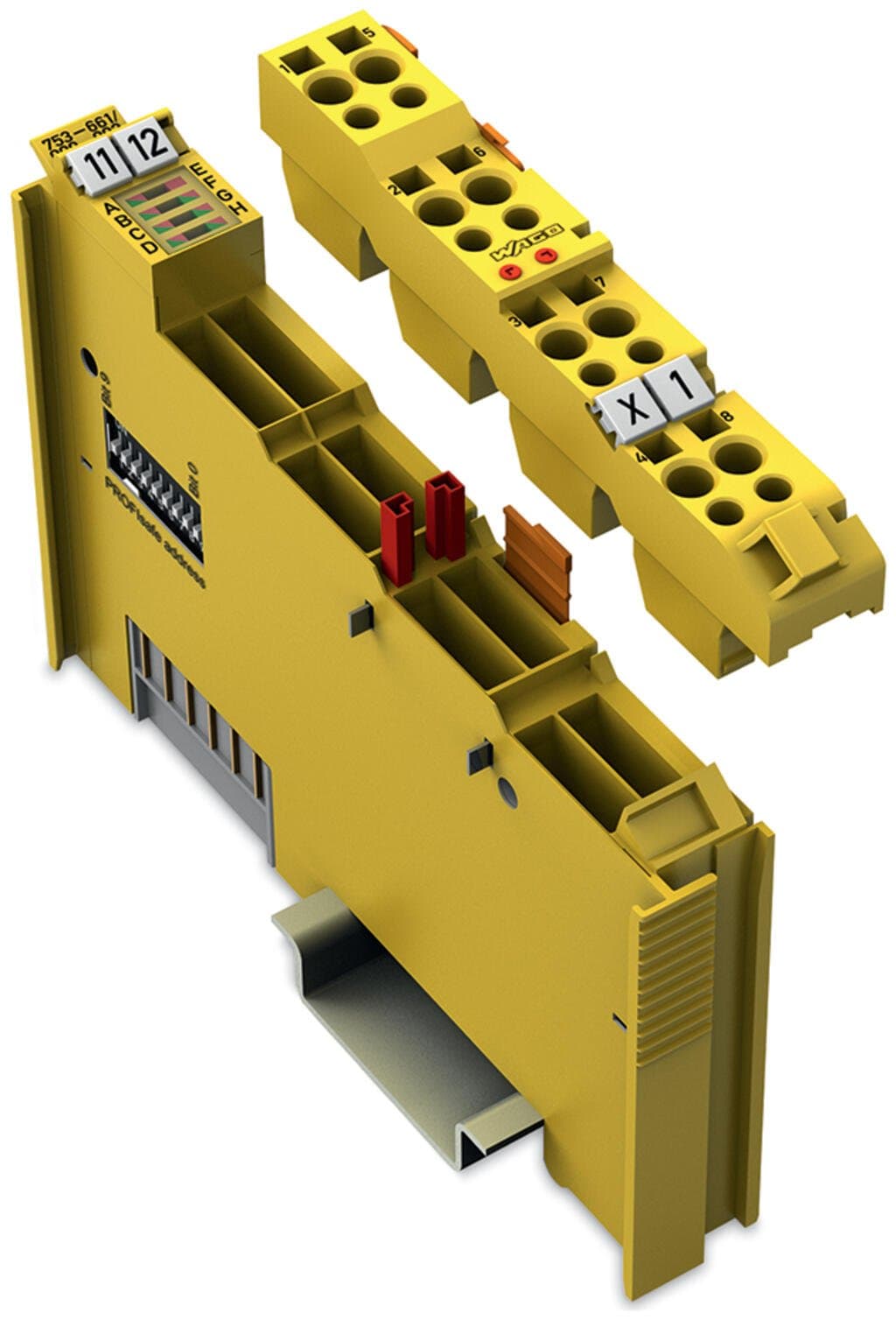

Product Model
753-661/000-003
Selling Points
- 1Easily customize and mix digital and analog I/O modules in the same node.
- 2Accommodate up to 16 channels in a compact 12 mm wide housing.
- 3Supports numerous fieldbus systems and ETHERNET standards for maximum flexibility.
- 4100% compatible with the 750 Series, allowing easy replacement of modules without rewiring.
- 5Features CAGE CLAMP® spring pressure connections for superior reliability and long-term consistency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Protocols | PROFIsafe V2 |
Configuration options | PROFIsafe address adjustable via DIP switch or engineering software | Indicators | LED (A-D) green/red: Status/Error I1 … I4; LED (E) red: Group error; LED (F-H) green/red: Diagnostics |
Number of Channels | 4 | Pluggable connector | pluggable |
Number of digital inputs | 4 | Signal type | Voltage |
Signal type (voltage) | 24 VDC | Sensor connection | 4 x (Fail-safe input with test pulse) |
Input characteristic | Clock sensitive | Input current per channel for signal (1) typ. | 2.2mA |
Signal frequency (max.) | 50Hz | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 145mA | Supply voltage (field) | 24 VDC, SELV/PELV (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Current consumption, field supply (module with no external load) | 20mA | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Isolation | 500 V system/field | Achievable safety classes | SIL 3; Category 4, PL e |
Safety standards | IEC 61508-1 … -7; EN ISO 13849-1; EN 62061 | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 69 mm / 2.717 inches | Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mounting type | DIN-35 rail | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | Customs tariff number | 8538901000 |
Specifications may be subject to change without notice
