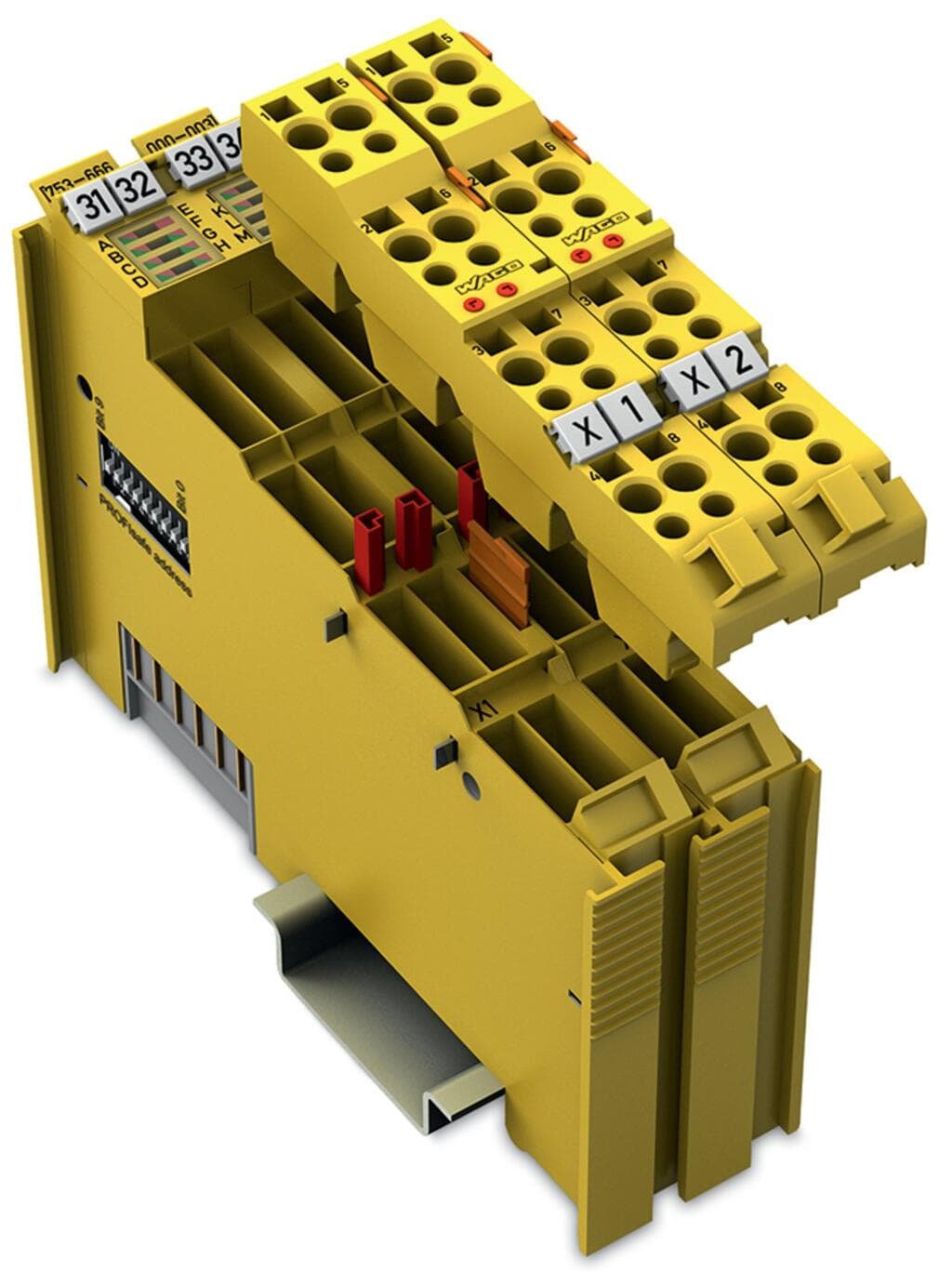

Product Model
753-666/000-003
Selling Points
- 1Fail-Safe Design: Ensures safe operation with potential-free inputs and fail-safe outputs.
- 2High Current Capability: Supports up to 10A per channel, suitable for heavy-duty applications.
- 3Multiple Protocol Support: Compatible with PROFIsafe V1 and V2 protocols for seamless integration.
- 4Configurable Safety Parameters: Easily configure safety settings via WAGO-I/O-CHECK for enhanced reliability.
- 5Durable Construction: Built with polycarbonate and polyamide 6.6, ensuring robustness in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Protocols | PROFIsafe V2 |
Configuration options | PROFIsafe address adjustable via DIP switch or engineering software | Indicators | LED (A-D) green/red: Status/Error I1 … I4; LED (I-K) green/red: Status/error O1 … O2; LED (E) red: Group error; LED (F-H) green/red: Diagnostics |
Number of Channels | 6 | Pluggable connector | pluggable |
Number of digital inputs | 4 | Signal type | Voltage |
Signal type (voltage) | 24 VDC | Sensor connection | 4 x (Fail-safe input with test pulse) |
Input characteristic | Clock sensitive | Input current per channel for signal (1) typ. | 2.2mA |
Signal frequency (max.) | 50Hz | Output current per channel | 10A |
Number of digital outputs | 2 | Output current | short-circuit-protected |
Output current (module) | 20A | Actuator connection | 2 x (fail-safe output with test pulse) |
Output circuit design | Power outputs | Switching frequency (max.) | 50 Hz; Resistive load |
Switching frequency (max.) (2) | 0.1 Hz; Inductive load | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 190mA | Supply voltage (field) | 24 VDC (-15 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Current consumption, field supply (module with no external load) | 30mA | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Isolation | 500 V system/field | Achievable safety classes | SIL 3; Category 4, PL e |
Safety standards | IEC 61508-1 … -7; EN ISO 13849-1; EN 62061 | Test pulse duration (max.) | 500ms |
Test pulse duration (min.) | 0ms | Connection technology: inputs / outputs | 16 x CAGE CLAMP? |
Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Width | 24 mm / 0.945 inches | Height | 100 mm / 3.937 inches |
Depth | 69 mm / 2.717 inches | Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mounting type | DIN-35 rail | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | Customs tariff number | 8538901000 |
Specifications may be subject to change without notice
