Product Model

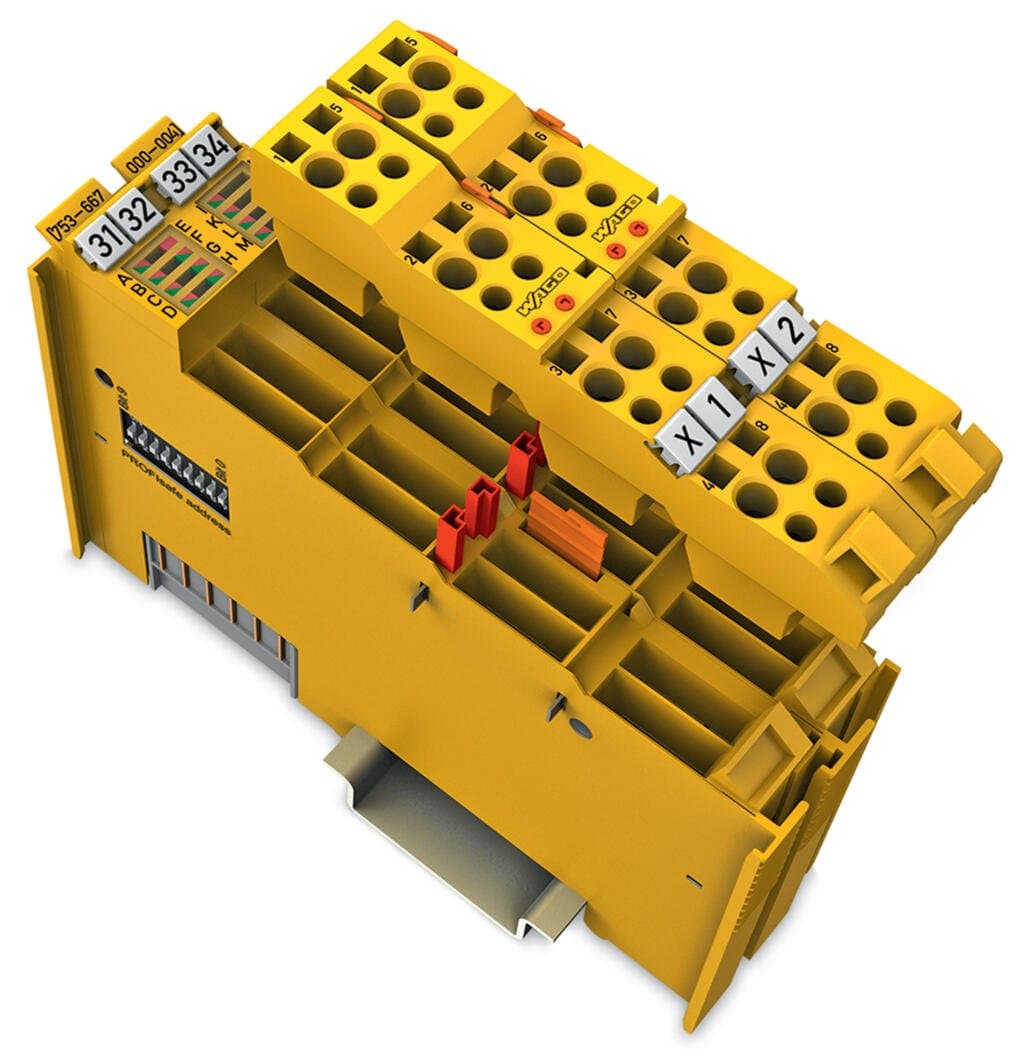

753-667/000-004
Selling Points
- 1High Safety Standards: Meets SIL3/Cat4/PLe or SIL2/Cat2/Pld standards for maximum safety in industrial applications.
- 2Fail-Safe Design: Ensures reliable operation with 4 fail-safe digital inputs and outputs, each capable of handling 24VDC and 2A per channel.
- 3PROFIsafe Communication: Supports PROFIsafe protocol for secure and reliable data transmission in industrial environments.
- 4Durable Construction: Built with polycarbonate and polyamide 6.6, resistant to pollutants and suitable for harsh industrial conditions.
- 5Easy Installation: Mounts on DIN-35 rail, making it easy to integrate into existing automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Protocols | PROFIsafe V2.6 (PROFINET) and V2.4 (PROFIBUS, PROFINET) |
Configuration options | PROFIsafe address adjustable via DIP switch or engineering software | Indicators | LED (A-D) green/red: Status/Error I1 … I4; LED (I-M) green/red: Status/error O1 … O4; LED (E) red: Group error; LED (F-H) green/red: Diagnostics |
Number of Channels | 8 | Pluggable connector | pluggable |
Number of digital inputs | 4 | Signal type | Voltage |
Signal type (voltage) | 24 VDC | Sensor connection | 4 x (Fail-safe input with test pulse) |
Input characteristic | Type 1 per IEC 61131 | Input current per channel for signal (1) typ. | 3mA |
Signal frequency (max.) | 50Hz | Output current per channel | 2A |
Number of digital outputs | 4 | Output current | short-circuit-protected |
Output current (module) | 8A | Actuator connection | 4 x (fail-safe output with test pulse) |
Output circuit design | Power outputs | Switching frequency (max.) | 50 Hz; Resistive load |
Switching frequency (max.) (2) | 0.1 Hz; Inductive load | Switching frequency (max.) (3) | 0.1 Hz; Capacitive load |
Capacitive load for each channel | O1 … O4; 47 μ F | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 120mA | Supply voltage (field) | 24 VDC, SELV/PELV (-25 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Current consumption, field supply (module with no external load) | 35mA | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
Achievable safety classes | SIL 3; Category 4, PLe (two-channel); SIL 2; Category 2; PLd (one-channel) | Safety standards | IEC 61508-1 … -7; EN ISO 13849-1; EN 62061 |
Interface types according to ZVEI (inputs) | Drain; A, C0, C1, C2, C3 | Interface types according to ZVEI (outputs) | Source; C0, C1, C2, C3, D0, D1, D2, D3 |
Test pulse duration (max.) | 500ms | Test pulse duration (min.) | 0ms |
Connection technology: inputs / outputs | 16 x CAGE CLAMP? | Connection type 1 | Inputs/outputs |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 9 … 10 mm / 0.35 … 0.39 inches | Width | 24 mm / 0.945 inches |
Height | 100 mm / 3.937 inches | Depth | 67.8 mm / 2.669 inches |
Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches | Mounting type | DIN-35 rail |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION |
Specifications may be subject to change without notice
