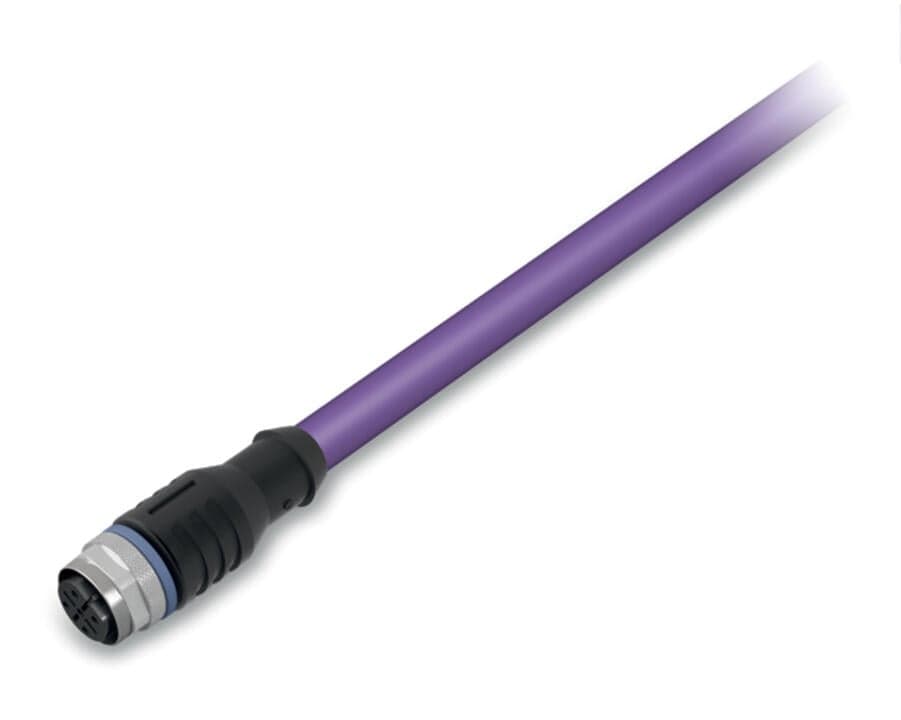

Product Model
756-1101/060-100
Selling Points
- 1High-Quality Connectivity: Ensures reliable and efficient communication in industrial settings.
- 2Durable Design: Built with bare copper wire (19 x 0.15 mm) for long-lasting performance.
- 3PROFIBUS Compatibility: Designed for seamless integration with PROFIBUS systems.
- 4Halogen-Free and UV Resistant: Meets stringent safety standards with PUR material.
- 5Suitable for Drag Chains: Withstands harsh environments and mechanical stress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 socket - free end | Number of poles | 5 |
Cable connection direction to mating direction | 0° | Connector interface coding (cable/adapter) 1 1 | B-coded |
Cable length | 10m | Communication/fieldbus | PROFIBUS |
Operating voltage | ≤ 300?V | Operating current | 4A |
Rated surge voltage | 2?kV | Insulation resistance | > 2500 MΩ/km |
Conductor resistance | 55 Ω/km (max.); Loop resistance: 110 Ω/km (max.) | Bending radius | > 10 x cable ? (flexible use); > 5 x cable ? in drag chain (fixed installation) |
Bending cycles | 1Mio. | Drag chain capability | yes |
Type code | LI02YS-(ST)CB11Y 1X(2X0.34SQMM) | Shield | Shielding braid, (approx. 5.90 mm ?), tinned CU-ETP1, coverage 85 % ± 5 % |
Conductor configuration | Bare copper wire (19 x 0.15 mm) | Conductor insulation | PE (halogen-free); Filler: PP yarn |
Housing material | TPU/TPU, black (~ RAL 9005) | Tightening torque | 1?Nm |
Weight | 700g | Color | violet |
Ambient (operating) temperature (dynamic) | -25 … +60 °C | Ambient (operating) temperature (static) | -50 … +80 °C |
Protection type | IP67 | Pollution degree | 3/2 per IEC 60664-1 |
eCl@ss 10.0 | 27-06-18-01 | eCl@ss 9.0 | 27-06-18-01 |
ETIM 9.0 | EC002599 | ETIM 8.0 | EC002599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454521523 | Customs tariff number | 8544429090 |
End of Sale | 2024-05-01 | End of Production | 2024-05-15 |
End of Delivery | 2024-06-01 | End of Service and Repair | 2025-06-01 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | af1f7ad0-73c5-4852-b4df-a2867b3088e8 | SCIP notification number (Belgium) | 7c8e2f01-591c-478b-b515-2b5bca8fe9c3 |
SCIP notification number (Bulgaria) | d1014487-425b-40d9-85f2-d6287295d4b5 | SCIP notification number (Czech Republic) | 077dcd0b-0da2-4ed4-8187-0f50c0f19438 |
SCIP notification number (Denmark) | d4a83dee-6423-415a-ab26-a30d34fcf153 | SCIP notification number (Finland) | 762767f9-3062-4ad3-957b-7e72ec1b118a |
SCIP notification number (France) | 1c38db22-632f-419a-9365-9c9744418ff7 | SCIP notification number (Germany) | 371ab1c4-b632-4dc7-a3bb-4ca6055f9c8c |
SCIP notification number (Hungary) | f8ed152c-44c2-4af5-98bb-b5ecc6ba2094 | SCIP notification number (Italy) | 83e96fc7-e3f1-4456-81b8-e2f19ddd7b80 |
SCIP notification number (Netherlands) | c80939f9-593c-47fb-9055-17efd739dbef | SCIP notification number (Poland) | 53f7245e-def3-4649-a8aa-1d86a919dbc5 |
SCIP notification number (Romania) | 74138cfb-9eee-4a97-86ba-25091f87ede8 | SCIP notification number (Sweden) | 9588fb1e-7453-445e-9383-4392aca0b06c |
Specifications may be subject to change without notice
