Product Model
756-1201/060-020
Selling Points
- 1Resistant to microbes, hydrolysis, oil, ozone, chemicals, and UV radiation.
- 2Ensures reliable operation in harsh industrial environments.
- 3UL listed and made with halogen-free PE insulation.
- 4Bending radius of 5 x cable diameter (min.) for single bends and 7.5 x for multiple bends.

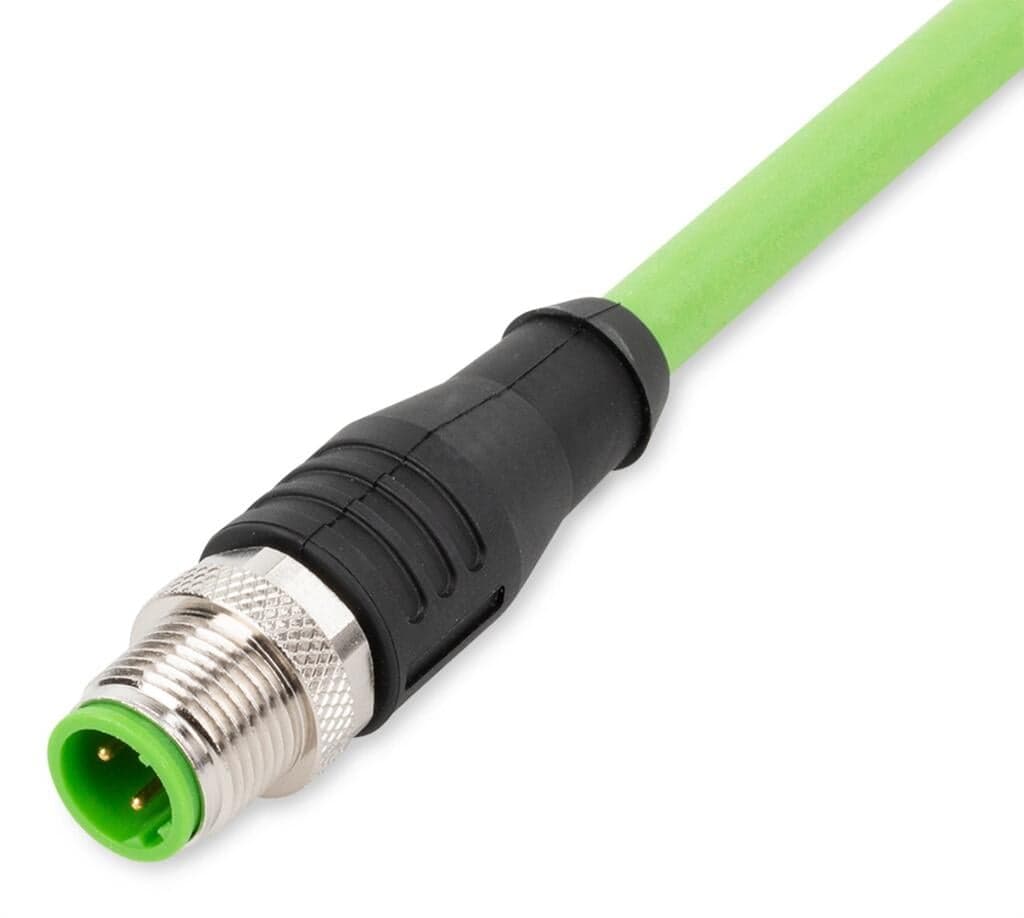

- 5D-coded M12 plug to free end, suitable for drag chains and various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-18-01 | eCl@ss 9.0 | 27-06-18-01 |
ETIM 9.0 | EC002599 | ETIM 8.0 | EC002599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4045454521752 | Customs tariff number | 8544429090 |
RoHS Compliance Status | Compliant,No Exemption | Operating voltage | 250?V |
Operating current | 4A | Rated surge voltage | 2?kV |
Insulation resistance | ≥ 5 x 108Ω/km | Contact resistance | 10mΩ |
Conductor resistance | < 57 Ω/km | Pollution degree | 3/2 per IEC 60664-1 |
Protection type | IP67 | Ambient (operating) temperature (static) | -40 … +70 °C |
Ambient (operating) temperature (dynamic) | -40 … +70 °C | Bending diameter (min.) | 200 |
Bending radius | Single: 5 x cable diameter (min.); Multiple: 7.5 x cable diameter (min.) | Bending cycles | 3Mio. |
Acceleration (min.) | 4 | Travel speed (max.) | 4 |
Travel path (horizontal) max. | 10 | Cable length | 2m |
Type code | 02YH(ST)C11Y 2x2x0.75/1.5-100 LI GN VZN FRNC, shielded | Overall shield | Overlapped aluminum-laminated foil and tinned copper braid, optical coverage approx. 85 % |
Conductor configuration | Bare copper wire (7 x 0.25 mm) | Conductor insulation | Halogen-free PE |
Sheath material | Polyurethane (PUR), halogen-free per VDE 0250 Part 818, flame resistant per IEC 60332-1-2 | Connection type | M12 plug - free end |
Number of poles | 4 | Cable connection direction to mating direction | 0° |
Connector interface coding (cable/adapter) 1 1 | D-coded | Housing material | TPU/TPU, black (~ RAL 9005) |
Contact material | CuZn | Tightening torque | 1?Nm |
Specifications may be subject to change without notice
