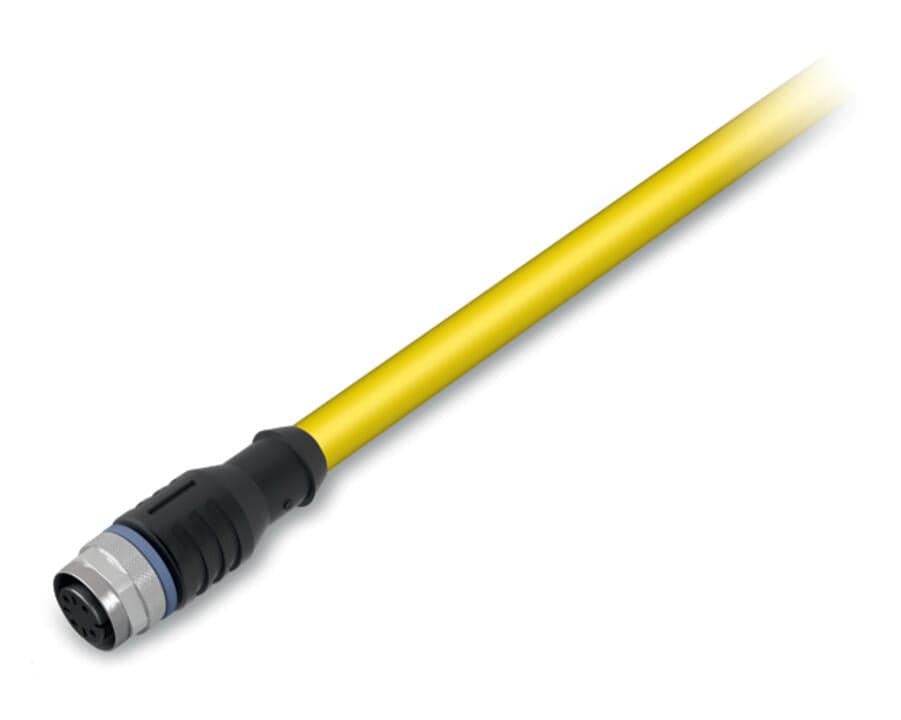

Product Model
756-1301/060-020
Selling Points
- 1High-Quality Construction: Built with durable materials for long-lasting performance.
- 2B-Coded M12 Socket: Ensures secure and reliable connections in industrial settings.
- 3Straight Cable Design: Easy to install and use in various applications.
- 4Flexible Length Options: Available in 2 meters, perfect for compact installations.
- 5Pluggable Connectors: Convenient and time-saving, reducing installation errors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 socket - free end | Number of poles | 5 |
Cable connection direction to mating direction | 0° | Connector interface coding (cable/adapter) 1 1 | B-coded |
Cable length | 2m | PLC manufacturer | WAGO |
Operating voltage | 60 V | Operating current | 4A |
Rated surge voltage | 1.5 kV per IEC 61076-2-101 | Contact resistance | 10mΩ |
Insulation resistance | ≥5 x 108Ω | Conductor resistance | ≤ 145 Ω/km |
Bending radius | 5 x cable diameter (min.) | Type code | KS-02YS(ST+C)11Y 4x2xAWG26/7-100 Ω, shielded |
Shield | Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 % | Conductor configuration | Bare copper wire (26/7 AWG) |
Conductor insulation | Zell-PE; Core ?: 1.0 mm (max.) | Housing material | TPU/TPU, black (~ RAL 9005) |
Contact material | CuZn | Contact plating | CuNi/Au |
Material properties of the connections | Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM (Viton) | Mating cycles (max.) | 100 |
Tightening torque | 1?Nm | Weight | 92.1g |
Color | yellow | Ambient temperature (operation) | -25 … +60 °C |
Protection type | IP67 | Pollution degree | 3/2 per IEC 60664-1 |
eCl@ss 10.0 | 27-06-18-01 | eCl@ss 9.0 | 27-06-18-01 |
ETIM 9.0 | EC000237 | ETIM 8.0 | EC000237 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454791179 | Customs tariff number | 8544429090 |
End of Sale | 2024-05-01 | End of Production | 2024-05-15 |
End of Delivery | 2024-06-01 | End of Service and Repair | 2025-06-01 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 907e4ac8-7bff-4ad8-b372-b87d5d81472f | SCIP notification number (Belgium) | 34c1d014-218c-410d-8ebc-7d780e2b96d5 |
SCIP notification number (Bulgaria) | 249a1038-a3d1-459a-b5cf-d9280249f8d5 | SCIP notification number (Czech Republic) | da681bf9-57e2-42f5-821a-30155ef25d3f |
SCIP notification number (Denmark) | 7d7eccaf-7fc5-43e6-8d00-88df130d6025 | SCIP notification number (Finland) | 4010101e-bc26-4bf3-b637-2a6257d04215 |
SCIP notification number (France) | fd005cd9-c462-4481-87d9-f612311bb7c9 | SCIP notification number (Germany) | 895b5598-eaf9-43cf-bd01-f4c1c714cbe3 |
SCIP notification number (Hungary) | 6333617d-10f4-453a-a27a-ff0f9e1a3a81 | SCIP notification number (Italy) | 4ee25960-a507-4d50-8d50-e15b5a1d0c4e |
SCIP notification number (Netherlands) | 710103c5-7675-4649-aa6c-e4cf8c96ceaf | SCIP notification number (Poland) | 45c4ce4b-32a1-4cd2-88b3-1feb0cc91b4b |
SCIP notification number (Romania) | 311c1748-3f2c-4963-827b-5f332dee14f2 | SCIP notification number (Sweden) | 118c010f-210b-4c21-b50e-1d3b9c737d5d |
Specifications may be subject to change without notice
