Product Model

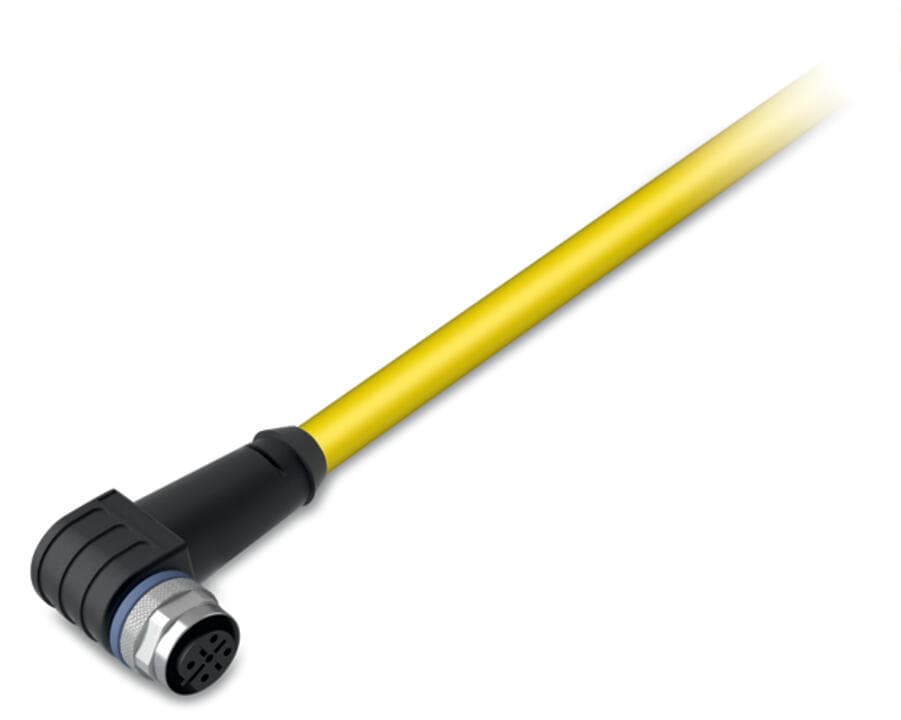

756-1302/060-100
Selling Points
- 1Reliable Performance: Designed for seamless integration in industrial and automation applications.
- 2High-Quality Construction: Fitted with bare copper wire (26/7 AWG) and Zell-PE insulation.
- 3Angled Design: M12B socket with a 5-pole configuration for efficient connectivity.
- 4RoHS Compliant: Meets environmental standards for safe and sustainable use.
- 5Versatile Compatibility: Compatible with a wide range of systems, ensuring easy integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 socket - free end | Number of poles | 5 |
Cable connection direction to mating direction | 90° | Connector interface coding (cable/adapter) 1 1 | B-coded |
Cable length | 10m | PLC manufacturer | WAGO |
Operating voltage | 60 V | Operating current | 4A |
Rated surge voltage | 1.5 kV per IEC 61076-2-101 | Contact resistance | 10mΩ |
Insulation resistance | ≥5 x 108Ω | Conductor resistance | ≤ 145 Ω/km |
Bending radius | 5 x cable diameter (min.) | Type code | KS-02YS(ST+C)11Y 4x2xAWG26/7-100 Ω, shielded |
Shield | Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 % | Conductor configuration | Bare copper wire (26/7 AWG) |
Conductor insulation | Zell-PE; Core ?: 1.0 mm (max.) | Housing material | TPU/TPU, black (~ RAL 9005) |
Contact material | CuZn | Contact plating | CuNi/Au |
Material properties of the connections | Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM (Viton) | Mating cycles (max.) | 100 |
Tightening torque | 1?Nm | Weight | 401g |
Color | yellow | Ambient temperature (operation) | -25 … +60 °C |
Protection type | IP67 | Pollution degree | 3/2 per IEC 60664-1 |
eCl@ss 10.0 | 27-06-18-01 | eCl@ss 9.0 | 27-06-18-01 |
ETIM 9.0 | EC000237 | ETIM 8.0 | EC000237 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454791247 | Customs tariff number | 8544429090 |
End of Sale | 2024-05-01 | End of Production | 2024-05-15 |
End of Delivery | 2024-06-01 | End of Service and Repair | 2025-06-01 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | c54ec85e-c330-4947-bb76-7de3a2e3b91f | SCIP notification number (Belgium) | 99158e0e-1f2a-4ffe-9174-43d8ce4a9146 |
SCIP notification number (Bulgaria) | f2edd927-ab98-4b86-a860-6fdf1f1557d2 | SCIP notification number (Czech Republic) | 1a73b799-032c-431d-a194-b69b3b403afb |
SCIP notification number (Denmark) | e45ad7eb-7ff7-40b4-af36-c254e91d02d9 | SCIP notification number (Finland) | de83717a-f147-4a9a-91a1-ac6914dcc08d |
SCIP notification number (France) | 8a2dba39-23df-4b5c-93ae-61b77f89bf61 | SCIP notification number (Germany) | 00575f1a-7587-494e-80be-35cc0890b9ce |
SCIP notification number (Hungary) | 1ed8dbed-8697-4b1d-ae5f-d0fc1d398613 | SCIP notification number (Italy) | 229eec47-f3ce-4ba9-98ee-34d537ac85da |
SCIP notification number (Netherlands) | 7971df37-c610-421a-a16f-5d5770f7491f | SCIP notification number (Poland) | 43ad3a5a-8926-4074-9dce-94c7119eb704 |
SCIP notification number (Romania) | 1dedc121-45bc-48e7-bbc2-687f7961bc27 | SCIP notification number (Sweden) | 0edd2596-eb56-4f06-960f-421610ac4593 |
Specifications may be subject to change without notice
