Product Model

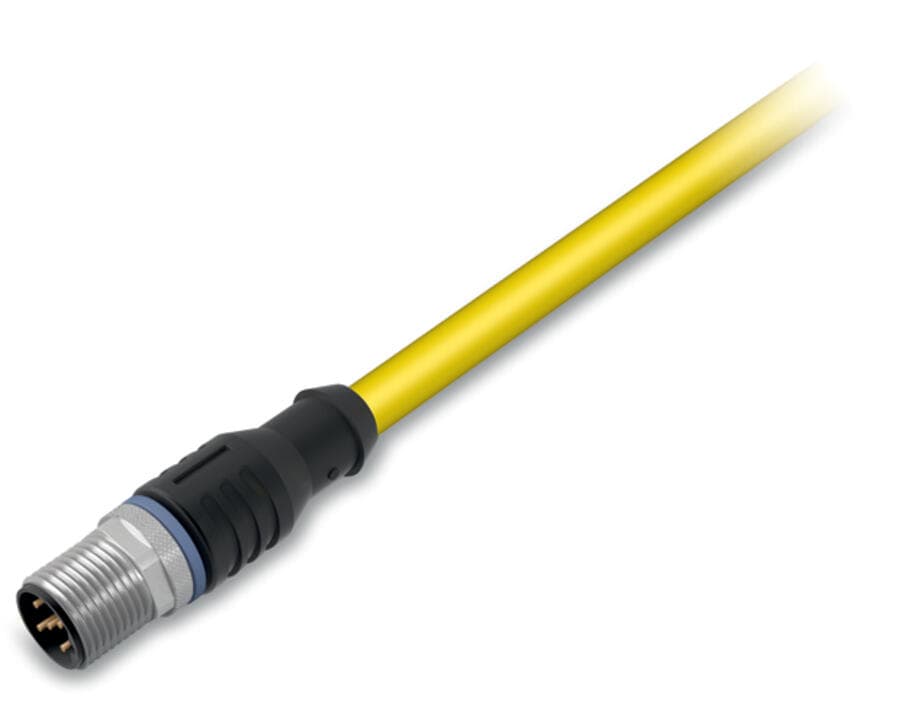

756-1303/060-050
Selling Points
- 1High-Quality Connectivity: Ensures reliable data transmission in industrial settings.
- 2B-Coded M12 Plug: Compatible with various industrial connectors for seamless integration.
- 35-Meter Length: Suitable for a wide range of applications with its extended reach.
- 4Durable Design: Built to withstand harsh environments and frequent use.
- 5Easy Installation: Simple to connect and use, reducing setup time and effort.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 plug - free end | Number of poles | 5 |
Cable connection direction to mating direction | 0° | Connector interface coding (cable/adapter) 1 1 | B-coded |
Cable length | 5m | PLC manufacturer | WAGO |
Operating voltage | 60 V | Operating current | 4A |
Rated surge voltage | 1.5 kV per IEC 61076-2-101 | Contact resistance | 10mΩ |
Insulation resistance | ≥5 x 108Ω | Conductor resistance | ≤ 145 Ω/km |
Bending radius | 5 x cable diameter (min.) | Type code | KS-02YS(ST+C)11Y 4x2xAWG26/7-100 Ω, shielded |
Shield | Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 % | Conductor configuration | Bare copper wire (26/7 AWG) |
Conductor insulation | Zell-PE; Core ?: 1.0 mm (max.) | Housing material | TPU/TPU, black (~ RAL 9005) |
Contact material | CuZn | Contact plating | CuNi/Au |
Material properties of the connections | Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM (Viton) | Mating cycles (max.) | 100 |
Tightening torque | 1?Nm | Weight | 212g |
Color | yellow | Ambient temperature (operation) | -25 … +60 °C |
Protection type | IP67 | Pollution degree | 3/2 per IEC 60664-1 |
eCl@ss 10.0 | 27-06-18-01 | eCl@ss 9.0 | 27-06-18-01 |
ETIM 9.0 | EC000237 | ETIM 8.0 | EC000237 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454791278 | Customs tariff number | 8544429090 |
End of Sale | 2024-05-01 | End of Production | 2024-05-15 |
End of Delivery | 2024-06-01 | End of Service and Repair | 2025-06-01 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 74ec90c5-dcf5-4cf2-9d59-a7ca8e7b1f1c | SCIP notification number (Belgium) | dc77c235-e712-4589-9c9f-59c0816e231a |
SCIP notification number (Bulgaria) | 308f012b-0b67-4c51-8b97-c44973f93a7c | SCIP notification number (Czech Republic) | 631ac0bd-b1c7-42a6-a5f0-8a81acb4ab08 |
SCIP notification number (Denmark) | 6c1e99c0-1fe6-4dad-b300-de45abd4ce2f | SCIP notification number (Finland) | 3bdf6af4-2b7d-4087-ae5d-13963e54ff4f |
SCIP notification number (France) | 4c6e65cf-9f56-4174-97ce-f8b84dee7885 | SCIP notification number (Germany) | 8208d54b-4a75-4272-acf0-2534ac392aca |
SCIP notification number (Hungary) | 6eeb4b54-b561-4230-907d-6500020a1d73 | SCIP notification number (Italy) | 939d14e1-9746-48ad-80f2-b29f3fc24158 |
SCIP notification number (Netherlands) | b005b954-f63e-4922-a968-0370a8a2f473 | SCIP notification number (Poland) | e740add7-db3f-42c6-8a83-696d471082cb |
SCIP notification number (Romania) | bd613a9c-8b98-4341-83d8-babfcf4b8bf0 | SCIP notification number (Sweden) | 508a79c8-8b3f-4584-b66b-e1a8a3b8b9d8 |
Specifications may be subject to change without notice
