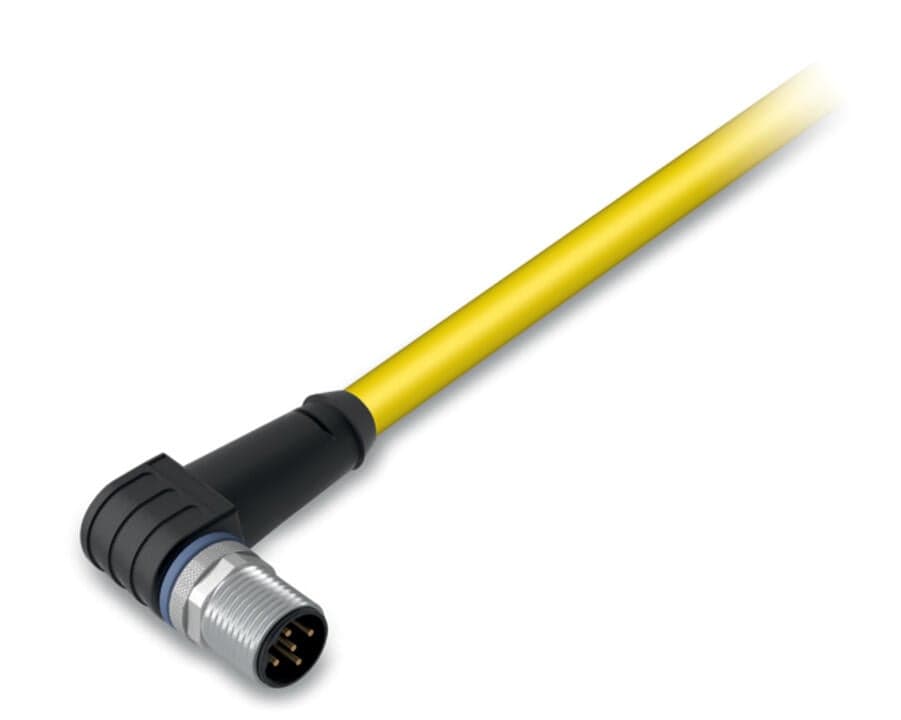

Product Model
756-1304/060-020
Selling Points
- 1Angled M12B plug for easy connection.
- 25-pole design for high signal integrity.
- 32m length for versatile installation options.
- 4High chemical resistance for durability.
- 5ROHS compliant for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 plug - free end | Number of poles | 5 |
Cable connection direction to mating direction | 90° | Connector interface coding (cable/adapter) 1 1 | B-coded |
Cable length | 2m | PLC manufacturer | WAGO |
Operating voltage | 60 V | Operating current | 4A |
Rated surge voltage | 1.5 kV per IEC 61076-2-101 | Contact resistance | 10mΩ |
Insulation resistance | ≥5 x 108Ω | Conductor resistance | ≤ 145 Ω/km |
Bending radius | 5 x cable diameter (min.) | Type code | KS-02YS(ST+C)11Y 4x2xAWG26/7-100 Ω, shielded |
Shield | Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 % | Conductor configuration | Bare copper wire (26/7 AWG) |
Conductor insulation | Zell-PE; Core ?: 1.0 mm (max.) | Housing material | TPU/TPU, black (~ RAL 9005) |
Contact material | CuZn | Contact plating | CuNi/Au |
Material properties of the connections | Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM (Viton) | Mating cycles (max.) | 100 |
Tightening torque | 1?Nm | Weight | 102g |
Color | yellow | Ambient temperature (operation) | -25 … +60 °C |
Protection type | IP67 | Pollution degree | 3/2 per IEC 60664-1 |
eCl@ss 10.0 | 27-06-18-01 | eCl@ss 9.0 | 27-06-18-01 |
ETIM 9.0 | EC000237 | ETIM 8.0 | EC000237 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454791308 | Customs tariff number | 8544429090 |
End of Sale | 2024-05-01 | End of Production | 2024-05-15 |
End of Delivery | 2024-06-01 | End of Service and Repair | 2025-06-01 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
