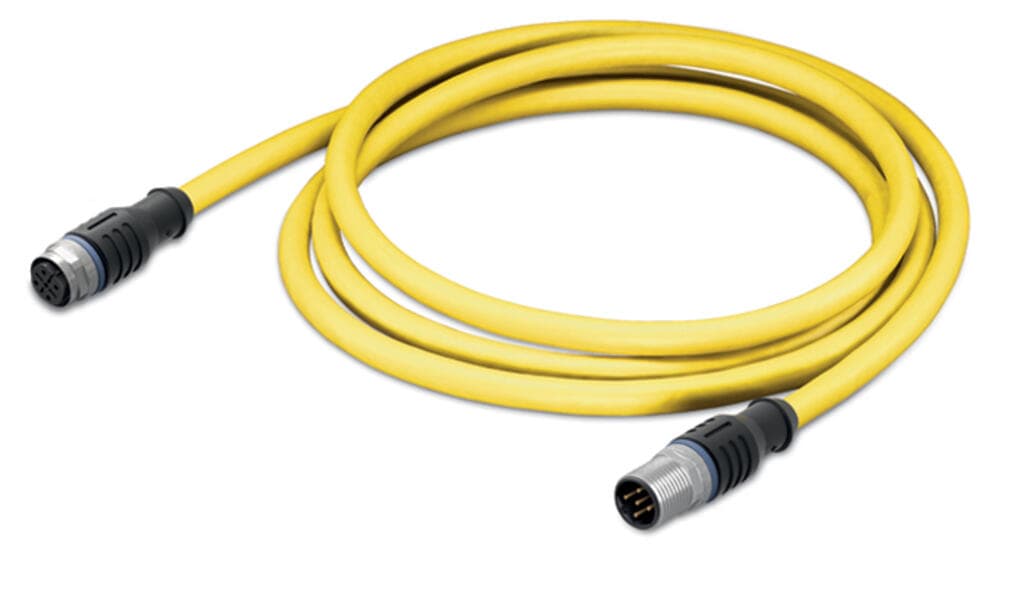

Product Model
756-1305/060-100
Selling Points
- 1High-Quality Connectivity: Ensures secure and reliable connections with M12 socket and plug.
- 2IP67 Protection: Offers robust protection against dust and water for harsh environments.
- 310m Length: Conveniently designed for various industrial setup needs.
- 4B-coded Interface: Compatible with B-coded connectors for seamless integration.
- 5Shielded Cable: Provides excellent signal integrity with aluminum-laminated foil and tinned copper braid shielding.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 socket - M12 plug | Number of poles | 5 |
Cable connection direction to mating direction | 0° | Cable connection direction to mating direction (2) | 0° |
Connector interface coding (cable/adapter) 1 1 | B-coded | Connector interface coding (cable/adapter) 2 1 | B-coded |
Cable length | 10m | PLC manufacturer | WAGO |
Operating voltage | 60 V | Operating current | 4A |
Rated surge voltage | 1.5 kV per IEC 61076-2-101 | Contact resistance | 10mΩ |
Insulation resistance | ≥5 x 108Ω | Conductor resistance | ≤ 145 Ω/km |
Bending radius | 5 x cable diameter (min.) | Type code | KS-02YS(ST+C)11Y 4x2xAWG26/7-100 Ω, shielded |
Shield | Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 % | Conductor configuration | Bare copper wire (26/7 AWG) |
Conductor insulation | Zell-PE; Core ?: 1.0 mm (max.) | Housing material | TPU/TPU, black (~ RAL 9005) |
Contact material | CuZn | Contact plating | CuNi/Au |
Material properties of the connections | Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM (Viton) | Mating cycles (max.) | 100 |
Tightening torque | 1?Nm | Weight | 408g |
Color | yellow | Ambient temperature (operation) | -25 … +60 °C |
Protection type | IP67 | Pollution degree | 3/2 per IEC 60664-1 |
eCl@ss 10.0 | 27-06-18-01 | eCl@ss 9.0 | 27-06-18-01 |
ETIM 9.0 | EC000237 | ETIM 8.0 | EC000237 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454126780 | Customs tariff number | 8544429090 |
End of Sale | 2024-05-01 | End of Production | 2024-05-15 |
End of Delivery | 2024-06-01 | End of Service and Repair | 2025-06-01 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 49ce31f4-e6ac-4297-ae17-944082363eaa | SCIP notification number (Belgium) | 6ba64488-28a9-412b-8977-36d1803dd8aa |
SCIP notification number (Bulgaria) | bd92dee3-2cff-4e9d-baeb-9c68c67edbfe | SCIP notification number (Czech Republic) | 1651dec5-992b-4708-8495-c8db6659fd43 |
SCIP notification number (Denmark) | fe2f1e8b-95b4-41e4-8f72-df0f078cec58 | SCIP notification number (Finland) | bb1773e7-8f76-4343-aafb-bb545eb651ed |
SCIP notification number (France) | 9f1b0cd2-7713-401b-93e6-4a32c7e10cea | SCIP notification number (Germany) | 1881e67f-3bd9-44ae-98e0-5dae0ce4d1fe |
SCIP notification number (Hungary) | de1715cb-c128-4787-90fc-ffb27aeba554 | SCIP notification number (Italy) | 2798fd8b-b320-4190-9ff2-5d7a9b2b0ead |
SCIP notification number (Netherlands) | b97d3991-9565-421b-a121-11bf22663eaf | SCIP notification number (Poland) | caddca54-fda4-4d02-bb51-8eb4dd028470 |
SCIP notification number (Romania) | e2b36e39-ac12-4f20-93c0-cf581d1ff5f2 | SCIP notification number (Sweden) | 732e9909-e246-4bf5-836e-f2cf939e1a22 |
Specifications may be subject to change without notice
